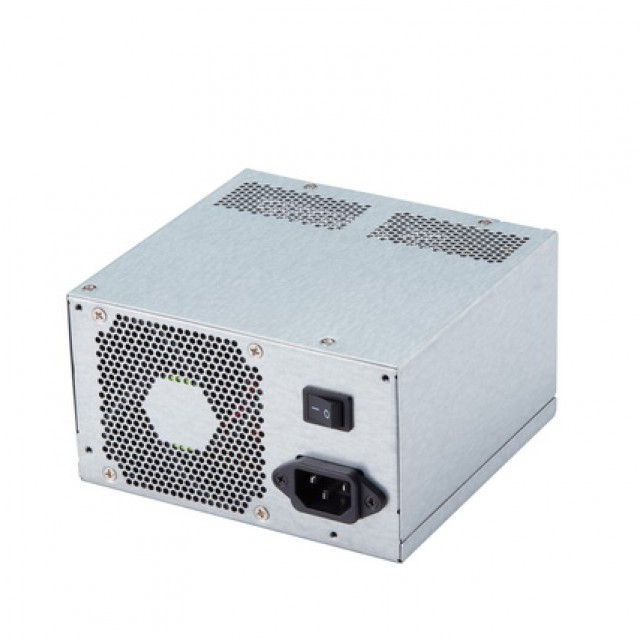

FSP460-70PFL(SK) power supply unit
460 W 24-pin ATX ATX Grey
Model FSP460-70PFL(SK)EAN 4713224521744
32 specifications
- ColourGrey
- Total power460 W
- Motherboard power connector24-pin ATX
- PurposeNAS/storage server
- Operating temperature (T-T)0 - 50 °C
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 460 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- NAS/storage server
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP460-70PFL(SK)
- Part number
- FSP460-70PFL(SK)
- EAN / UPC
- 4713224521744
- Also known as
- FSP FSP460-70PFL(SK) power supply unit 460 W 24-pin ATX ATX Grey
Specifications
32 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 460 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 22 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 18 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
| Power protection features | Over current, Over voltage, Overheating |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | NAS/storage server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | UL/cUL, CE, FCC, CCC, CB, EAC, TÜV EN 62368-1, UKCA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
