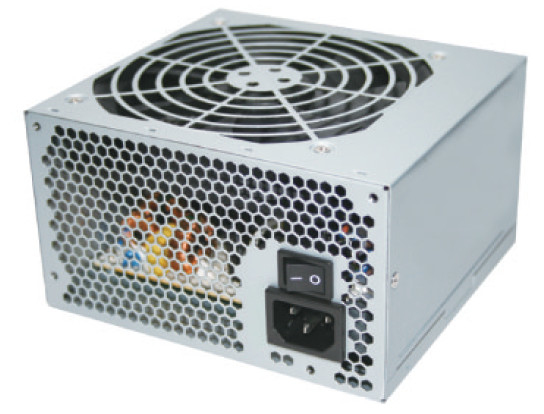

FSP460-60HCN power supply unit
460 W ATX Grey
Model FSP460-60HCN
34 specifications
- ColourGrey
- Total power460 W
- Cabling typeNon-Modular
- PurposePC
- Operating temperature (T-T)10 - 40 °C
- SafetyCE,TUV
Overview
- Colour
- Grey
- Total power
- 460 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 40 °C
- Safety
- CE,TUV
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP460-60HCN
- Part number
- FSP460-60HCN
- Also known as
- FSP FSP460-60HCN power supply unit 460 W ATX Grey
Specifications
34 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 460 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 17 A |
| Max output current (+5V) | 24 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 78% |
| Hold time | 17 ms |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.2 |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE,TUV |
Certificates
| Specification | Value |
|---|---|
| Certification | EN55022 class B EN55024 EN 61000-3-2 EN 61000-3-3 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | No |
| Rise time | 20 ms |
