FSP450-60GHS(85)-R power supply unit
FSP

FSP450-60GHS(85)-R power supply unit

450 W 24-pin ATX SFX Black

Model FSP450-60GHS(85)-REAN 102930927393

48 specifications
  • Noise21 dB
  • Weight1.05 kg
  • ColourBlack
  • Total power450 W
  • Motherboard power connector24-pin ATX
  • PurposePC
See all specifications

Overview

Noise
21 dB
Weight
1.05 kg
Colour
Black
Total power
450 W
Motherboard power connector
24-pin ATX
Purpose
PC
Brand
FSP
Model
FSP450-60GHS(85)-R
Part number
FSP450-60GHS(85)-R
EAN / UPC
102930927393, 608866370581
Also known as
FSP FSP450-60GHS(85)-R power supply unit 450 W 24-pin ATX SFX Black

Specifications

48 specifications in 10 groups

Power

Total power450 W
AC input voltage115 - 230 V
AC input frequency47 - 63 Hz
Input current5.5 A
Maximum input current (@110V)+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeActive
Max output current (+3.3V)21 A
Max output current (+12V1)18 A
Max output current (+12V2)18 A
Max output current (+5V)22 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)2.5 A
Efficiency85%
Power protection featuresOver current, Over voltage, Short circuit

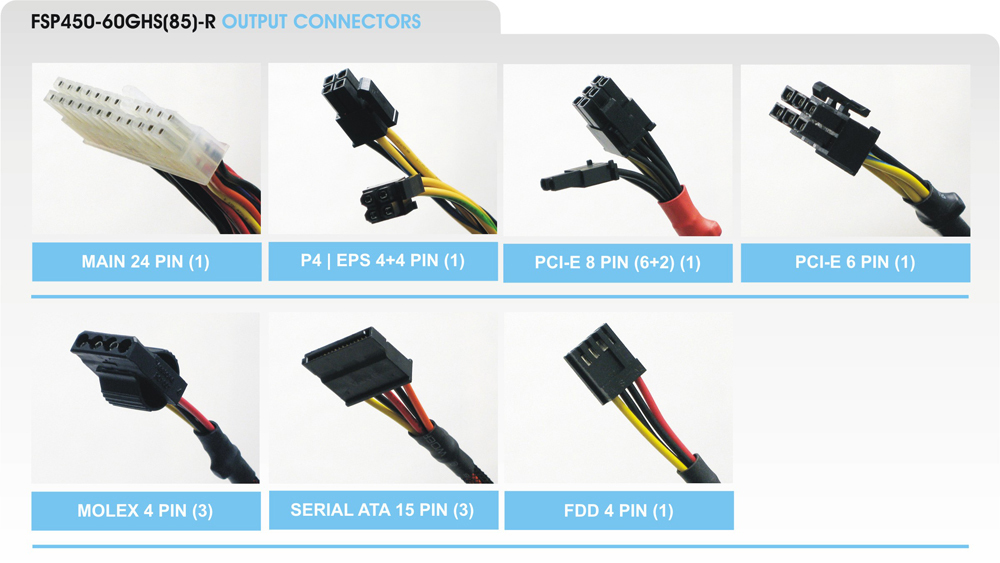

Ports & interfaces

Motherboard power connector24-pin ATX
Number of SATA power connectors3
Peripheral (Molex) power connectors (4-pin)3
EPS power connector (8-pin)Yes
PCI Express power connectors (6-pin)1
PCI Express power connectors (6+2 pin)1
CPU P4 connector (4-pin)1
Floppy drive power connector1
Connector(s)IEC C14
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorSFX
80 PLUS certification80 PLUS Bronze
Supported motherboard form factorsmicro ATX
Noise level21 dB
Bearing technologySleeve
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Fan diameter8 cm
Number of fans1 fan(s)
Fan locationTop

Certificates

Compliance certificatesRoHS

Safety regulation & standards

SafetyUL, cUL, TUV, CB, CE, FCC

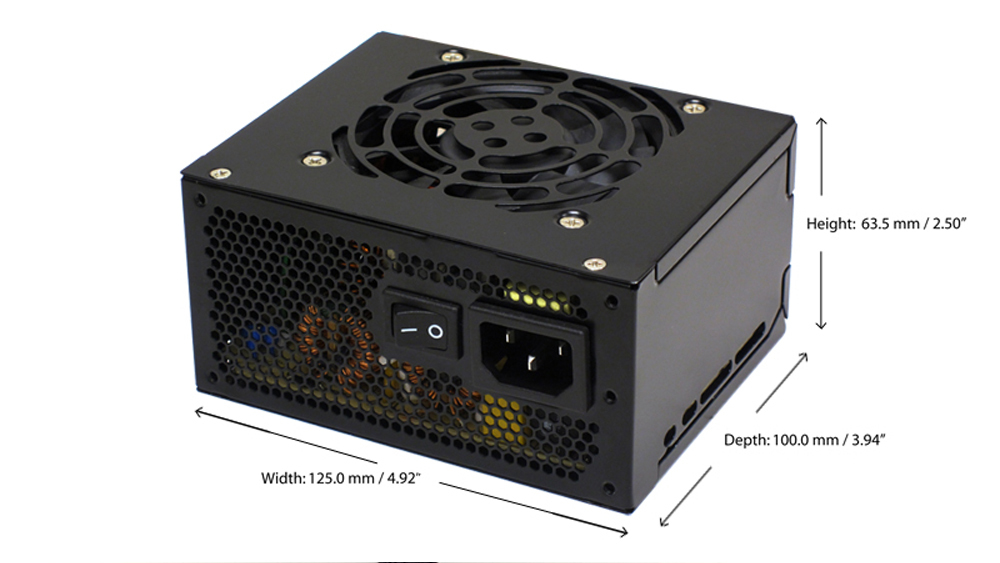

Weight & dimensions

Width125 mm
Depth100 mm
Height63.5 mm
Weight1.05 kg

Packaging data

Package width195 mm
Package depth73.9 mm
Package height195 mm
Package weight1.36 kg

Logistics data

Country of originTaiwan

Other features

Dimensions (WxDxH)150 x 81.5 x 40.3 mm
