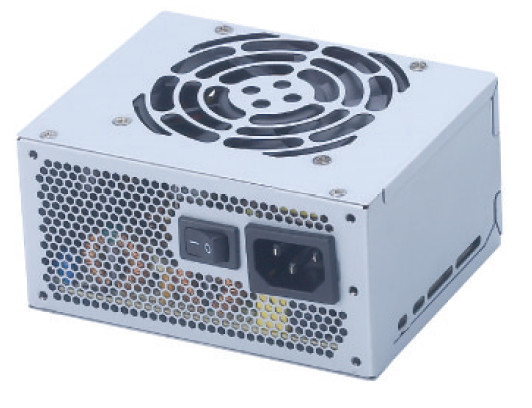

FSP450-60GHS(85) power supply unit
450 W SFX Grey
Model FSP450-60GHS(85)
31 specifications
- ColourGrey
- Total power450 W
- Cabling typeNon-Modular
- PurposePC
- Operating temperature (T-T)10 - 50 °C
- Width125 mm
Overview
- Colour
- Grey
- Total power
- 450 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 50 °C
- Width
- 125 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP450-60GHS(85)
- Part number
- FSP450-60GHS(85)
- Also known as
- FSP FSP450-60GHS(85) power supply unit 450 W SFX Grey
Specifications
31 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 450 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 - 5.5 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+5Vsb) | 0.5 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 18 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Hold time | 500 ms |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, TUV, UL/cUL |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
Other features
| Specification | Value |
|---|---|
| Rise time | 100 ms |
