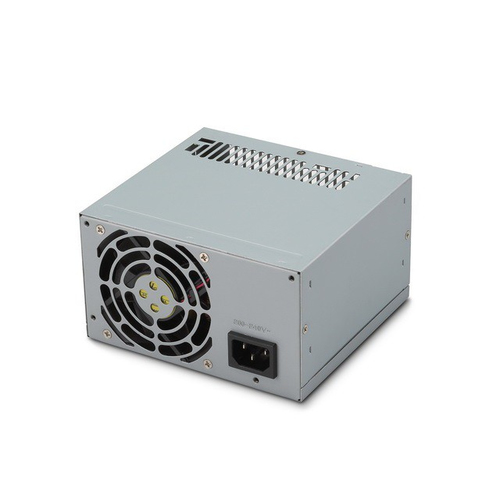

FSP400-70PFL power supply unit
400 W ATX Grey
Model FSP400-70PFLEAN 5711783157625
27 specifications
- ColourGrey
- Total power400 W
- Cabling typeNon-Modular
- PurposePC
- Operating temperature (T-T)0 - 50 °C
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 400 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP400-70PFL
- Part numbers
- FSP400-70PFL, 9PA400CB01
- EAN / UPC
- 5711783157625, 471322452172, 4713224521720
- Also known as
- FSP FSP400-70PFL power supply unit 400 W ATX Grey
Specifications
27 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 17 A |
| Max output current (+12V2) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 16 ms |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Fan location | Rear |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CB 62368-1, CB 60950-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Compare FSP400-70PFL power supply unit
Compare any products- FSP400-70PFL power supply unit vsFSP350-701UJ power supply unitCompare specs
- FSP400-70PFL power supply unit vsFSP700-80PSA power supply unitCompare specs
- FSP400-70PFL power supply unit vsFSP600-801UK power supply unitCompare specs
- FSP400-70PFL power supply unit vsFSP300-701UJ power supply unitCompare specs
- FSP400-70PFL power supply unit vsitek Energy KCompare specs

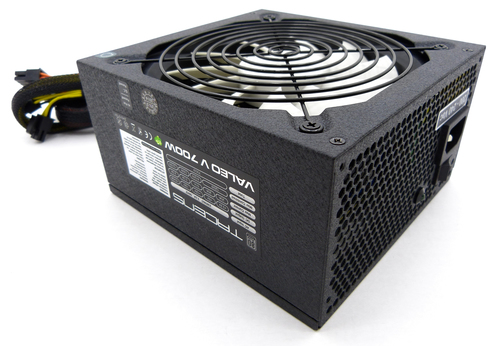

- FSP400-70PFL power supply unit vsTacens Valeo VCompare specs
