FSP400-60GHS(85)-R power supply unit
FSP

FSP400-60GHS(85)-R power supply unit

400 W 24-pin ATX SFX Black

Model FSP400-60GHS(85)-REAN 4711140480008

46 specifications
  • Weight1 kg
  • ColourBlack
  • Total power400 W
  • Motherboard power connector24-pin ATX
  • PurposePC
  • SafetyUL, cUL, TUV, CB, CE, FCC
See all specifications

Overview

Weight
1 kg
Colour
Black
Total power
400 W
Motherboard power connector
24-pin ATX
Purpose
PC
Safety
UL, cUL, TUV, CB, CE, FCC
Brand
FSP
Model
FSP400-60GHS(85)-R
Part number
FSP400-60GHS(85)-R
EAN / UPC
4711140480008
Also known as
FSP FSP400-60GHS(85)-R power supply unit 400 W 24-pin ATX SFX Black

Specifications

46 specifications in 10 groups

Power

Total power400 W
AC input voltage115 - 230 V
AC input frequency47 - 63 Hz
Input current4.5 A
Maximum input current (@110V)+12V1,+12V2,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeActive
Max output current (+3.3V)20 A
Max output current (+12V1)16 A
Max output current (+12V2)16 A
Max output current (+5V)22 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)2.5 A
Power protection featuresOver current, Over voltage, Short circuit

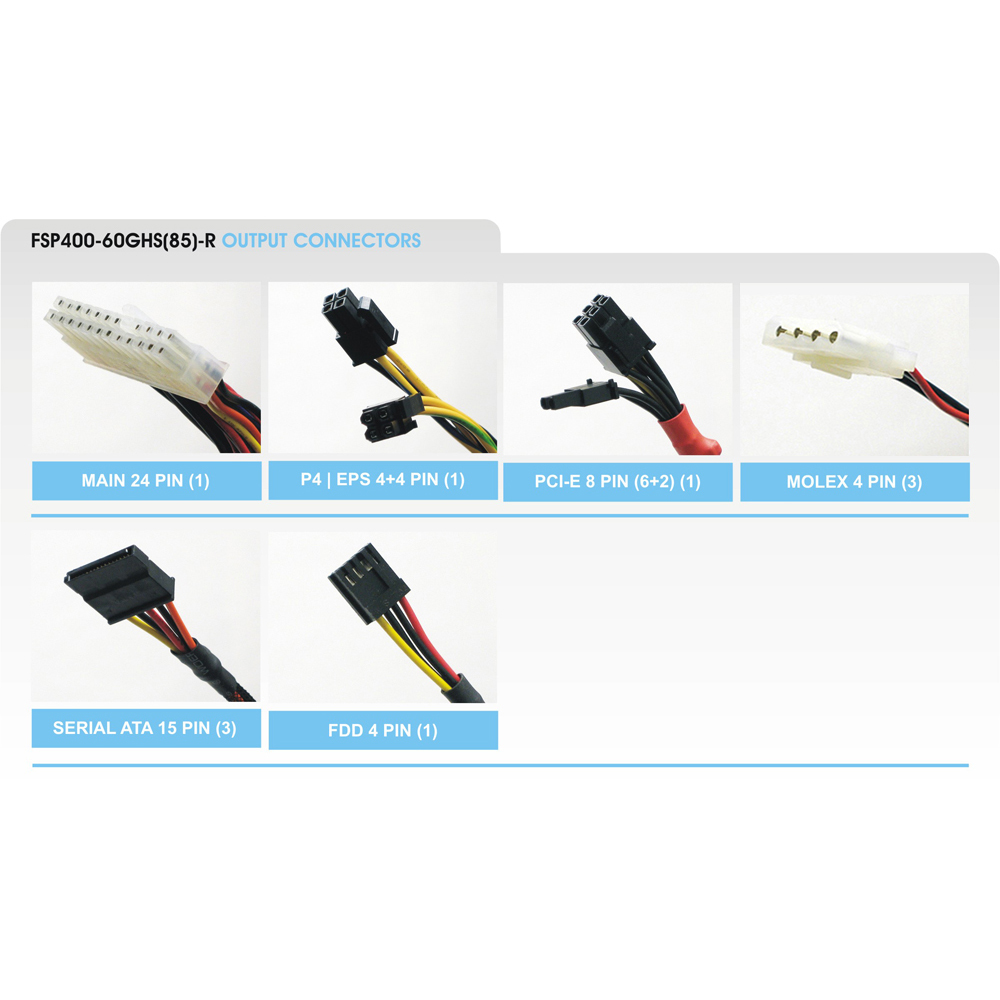

Ports & interfaces

Motherboard power connector24-pin ATX
Number of SATA power connectors3
Peripheral (Molex) power connectors (4-pin)3
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)1
CPU P4 connector (4-pin)1
Floppy drive power connector1
Connector(s)IEC C14
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorSFX
80 PLUS certification80 PLUS Bronze
Supported motherboard form factorsmicro ATX
Bearing technologySleeve
Mean time between failures (MTBF)100000 h

Design

Product colourBlack
Fan diameter8 cm
Number of fans1 fan(s)
On/off switchYes

Certificates

Compliance certificatesRoHS

Safety regulation & standards

SafetyUL, cUL, TUV, CB, CE, FCC

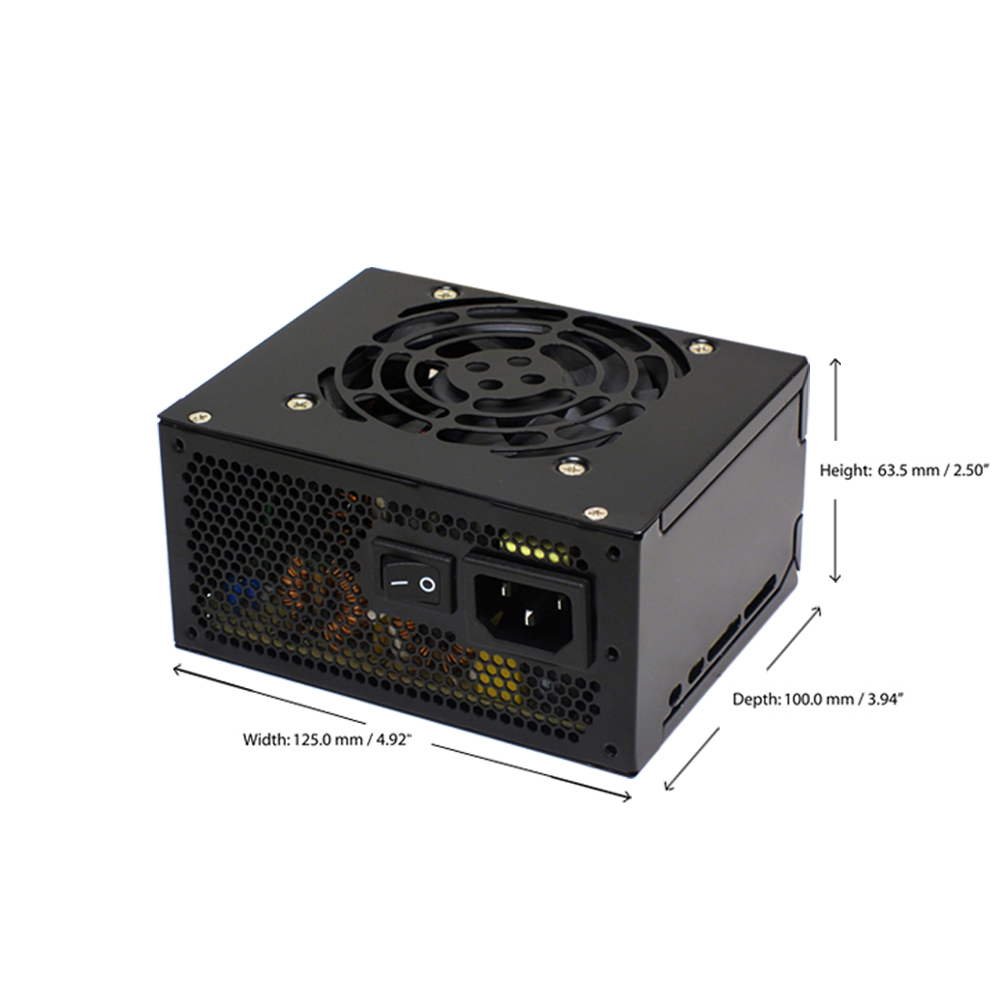

Weight & dimensions

Width125 mm
Depth100 mm
Height63.5 mm
Weight1 kg

Packaging data

Package width195 mm
Package depth739 mm
Package height195 mm
Package weight1.36 kg
Package typeBox

Logistics data

Country of originTaiwan

Other features

Dimensions (WxDxH)150 x 81.5 x 40.3 mm
Power rocker switchNo
