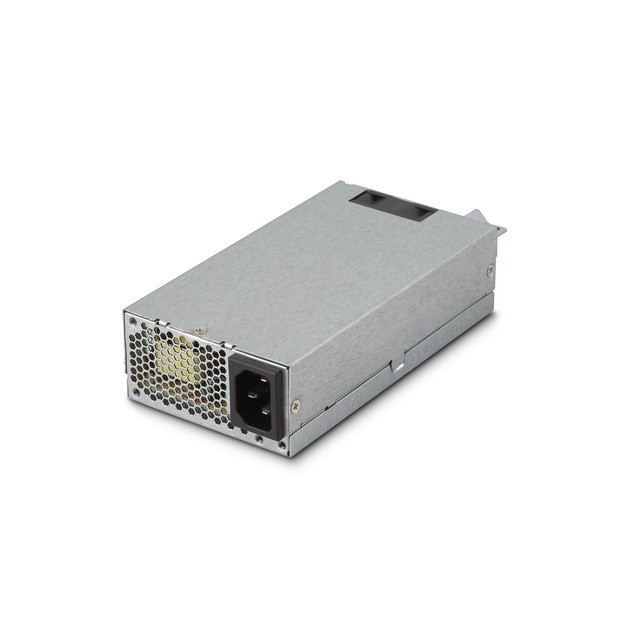

FSP400-50FDB power supply unit
400 W Silver
Model FSP400-50FDBEAN 4713224522734
19 specifications
- ColourSilver
- Total power400 W
- PurposePC/Server
- Operating temperature (T-T)0 - 50 °C
- Width81.5 mm
Overview
- Colour
- Silver
- Total power
- 400 W
- Purpose
- PC/Server
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 81.5 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP400-50FDB
- Part numbers
- FSP400-50FDB, FSP400-50UCB
- EAN / UPC
- 4713224522734, 4713224523595
- Also known as
- FSP FSP400-50FDB power supply unit 400 W Silver
Specifications
19 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 A |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V) | 33 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Gold |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81.5 mm |
| Depth | 40.5 mm |
| Height | 150 mm |
