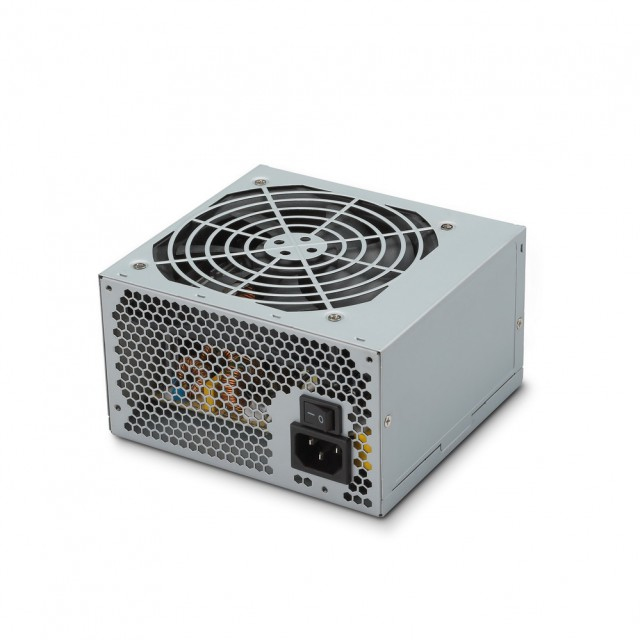

FSP350-60HHN(85) power supply unit
350 W Metallic
Model FSP350-60HHN(85)EAN 4016138654479
25 specifications
- ColourMetallic
- Total power350 W
- Cabling typeNon-Modular
- PurposePC
- Operating temperature (T-T)10 - 40 °C
- Width150 mm
Overview
- Colour
- Metallic
- Total power
- 350 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Operating temperature (T-T)
- 10 - 40 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP350-60HHN(85)
- Part number
- FSP350-60HHN(85)
- EAN / UPC
- 4016138654479
- Also known as
- FSP FSP350-60HHN(85) power supply unit 350 W Metallic
Specifications
25 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 2 A |
| Power factor | 0.99 |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 15 A |
| Max output current (+12V2) | 15 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 82% |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Rise time | 20 ms |
