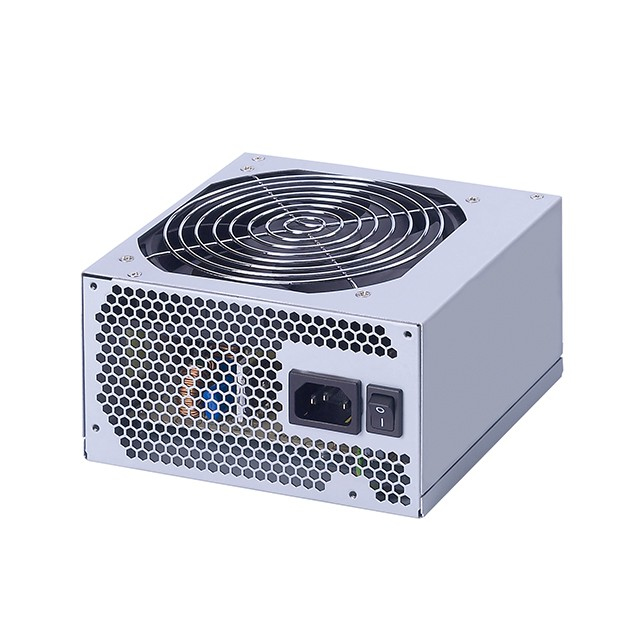

FSP350-60GHN power supply unit
350 W ATX Grey
Model FSP350-60GHN
26 specifications
- ColourGrey
- Total power350 W
- Cabling typeNon-Modular
- PurposePC
- Operating temperature (T-T)0 - 40 °C
- SafetyUL/CUL, TUV, CB, CE, FCC
Overview
- Colour
- Grey
- Total power
- 350 W
- Cabling type
- Non-Modular
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 40 °C
- Safety
- UL/CUL, TUV, CB, CE, FCC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP350-60GHN
- Part number
- FSP350-60GHN
- Also known as
- FSP FSP350-60GHN power supply unit 350 W ATX Grey
Specifications
26 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 15 A |
| Max output current (+12V2) | 15 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | UL/CUL, TUV, CB, CE, FCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
