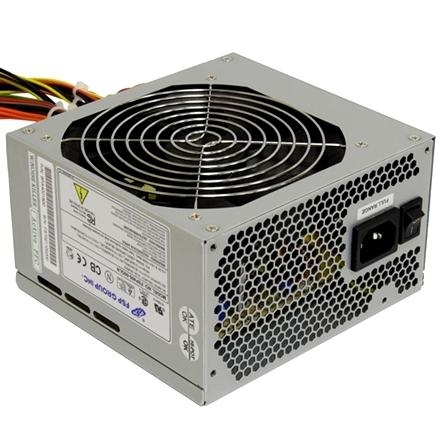

FSP350-60APN power supply unit
350 W ATX Grey
Model FSP350-60APNPart no. FSP350-60APN(85)EAN 5711045061967
19 specifications
- ColourGrey
- Total power350 W
- Number of SATA power connectors3
- Power supply unit (PSU) form factorATX
- Operating temperature (T-T)0 - 25 °C
- SafetyCB, FC, CE
Overview
- Colour
- Grey
- Total power
- 350 W
- Number of SATA power connectors
- 3
- Power supply unit (PSU) form factor
- ATX
- Operating temperature (T-T)
- 0 - 25 °C
- Safety
- CB, FC, CE
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP350-60APN
- Part numbers
- FSP350-60APN(85), FSP350-60APN
- EAN / UPC
- 5711045061967
- Also known as
- FSP FSP350-60APN power supply unit 350 W ATX Grey
Specifications
19 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Efficiency | 80% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 12 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 25 °C |
| Storage temperature (T-T) | -20 - 65 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CB, FC, CE |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 140 x 150 x 86 mm |
| Omnigrid (4-pin) power connectors | 1 |
