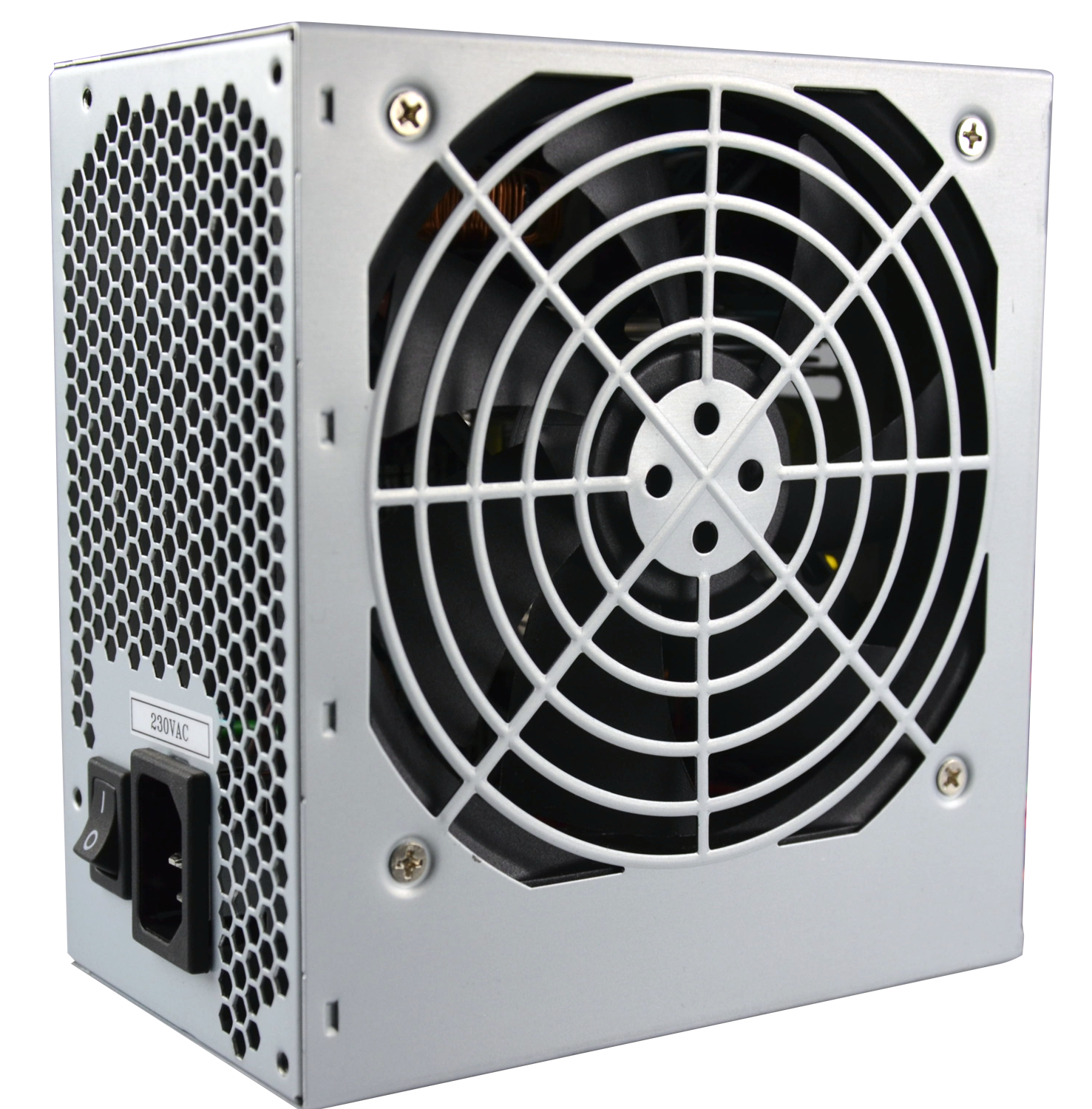

FSP350-50AHBCC power supply unit
350 W 24-pin ATX ATX Metallic
Model FSP350-50AHBCCPart no. 9PA350CR01EAN 4713224521911
35 specifications
- Noise25.6 dB
- ColourMetallic
- Total power350 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Noise
- 25.6 dB
- Colour
- Metallic
- Total power
- 350 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP350-50AHBCC
- Part number
- 9PA350CR01
- EAN / UPC
- 4713224521911
- Also known as
- FSP FSP350-50AHBCC power supply unit 350 W 24-pin ATX ATX Metallic
Specifications
35 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 350 W |
| AC input voltage | 180 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 2.5 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 312 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 16.1 W |
| Combined power (+5Vsb) | 16.1 W |
| Max output current (+3.3V) | 13 A |
| Max output current (+12V) | 26 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 82% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| Noise level | 25.6 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Metallic |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
