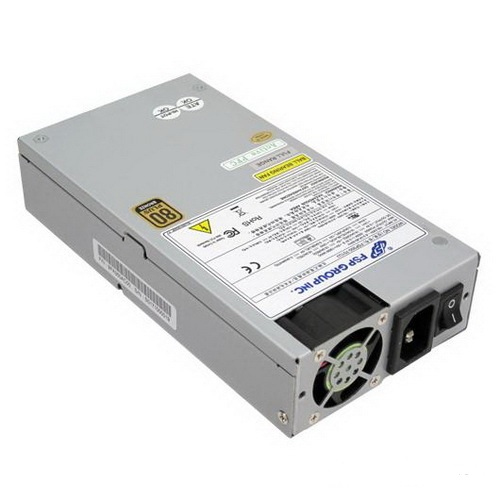

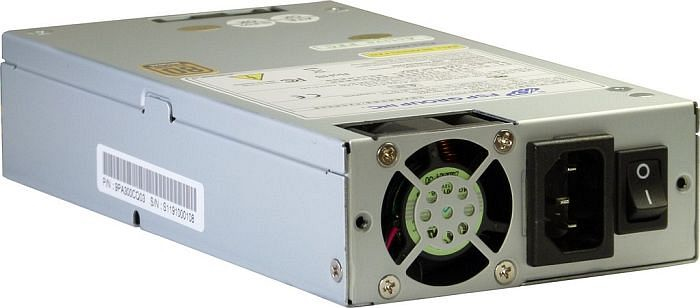

FSP300-701UJ power supply unit
300 W 1U Grey
Model FSP300-701UJ
26 specifications
- ColourGrey
- Total power300 W
- Cabling typeNon-Modular
- PurposeServer
- Operating temperature (T-T)0 - 50 °C
- SafetyCE,FCC,TUV,CCC
Overview
- Colour
- Grey
- Total power
- 300 W
- Cabling type
- Non-Modular
- Purpose
- Server
- Operating temperature (T-T)
- 0 - 50 °C
- Safety
- CE,FCC,TUV,CCC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP300-701UJ
- Part number
- FSP300-701UJ
- Also known as
- FSP FSP300-701UJ power supply unit 300 W 1U Grey
Specifications
26 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 16 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 85% |
| Hold time | 17 ms |
| Power protection features | Over power, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | 1U |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 4 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CE,FCC,TUV,CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 190 mm |
| Height | 40.5 mm |
