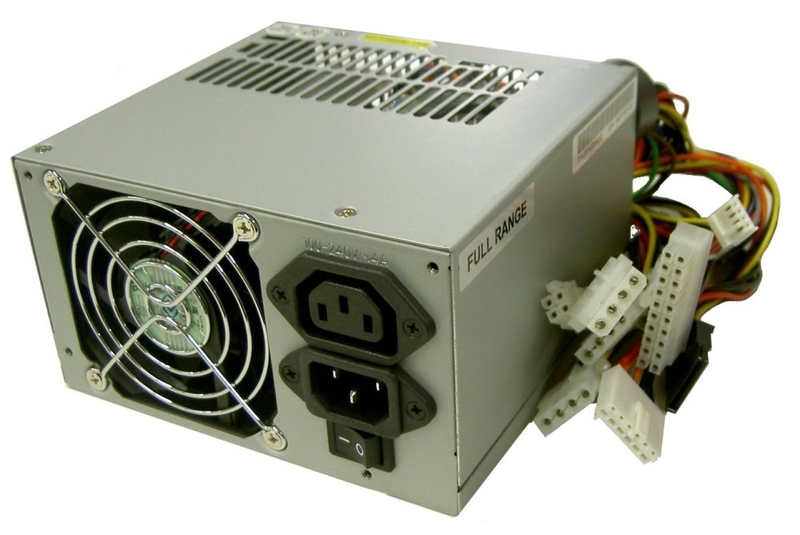

FSP300-60PLN power supply unit
300 W Grey
Model FSP300-60PLNEAN 845685005342
33 specifications
- ColourGrey
- Total power300 W
- Connector(s)IEC C14
- PurposePC
- Operating temperature (T-T)0 - 50 °C
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 300 W
- Connector(s)
- IEC C14
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP300-60PLN
- Part number
- FSP300-60PLN
- EAN / UPC
- 845685005342, 012302235509, 172304326435, 804066535380 +2 more
- Also known as
- FSP FSP300-60PLN power supply unit 300 W Grey
Specifications
33 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V,-5V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 28 A |
| Max output current (+12V) | 15 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 65% |
| Hold time | 17 ms |
| Power protection features | Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Connector(s) | IEC C14 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | UL 1950 , CSA C22.2 Level 3, IEC 950, VDE EN60950, NEMKO, CE |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 81.5 x 40.3 mm |
| Power rocker switch | No |
