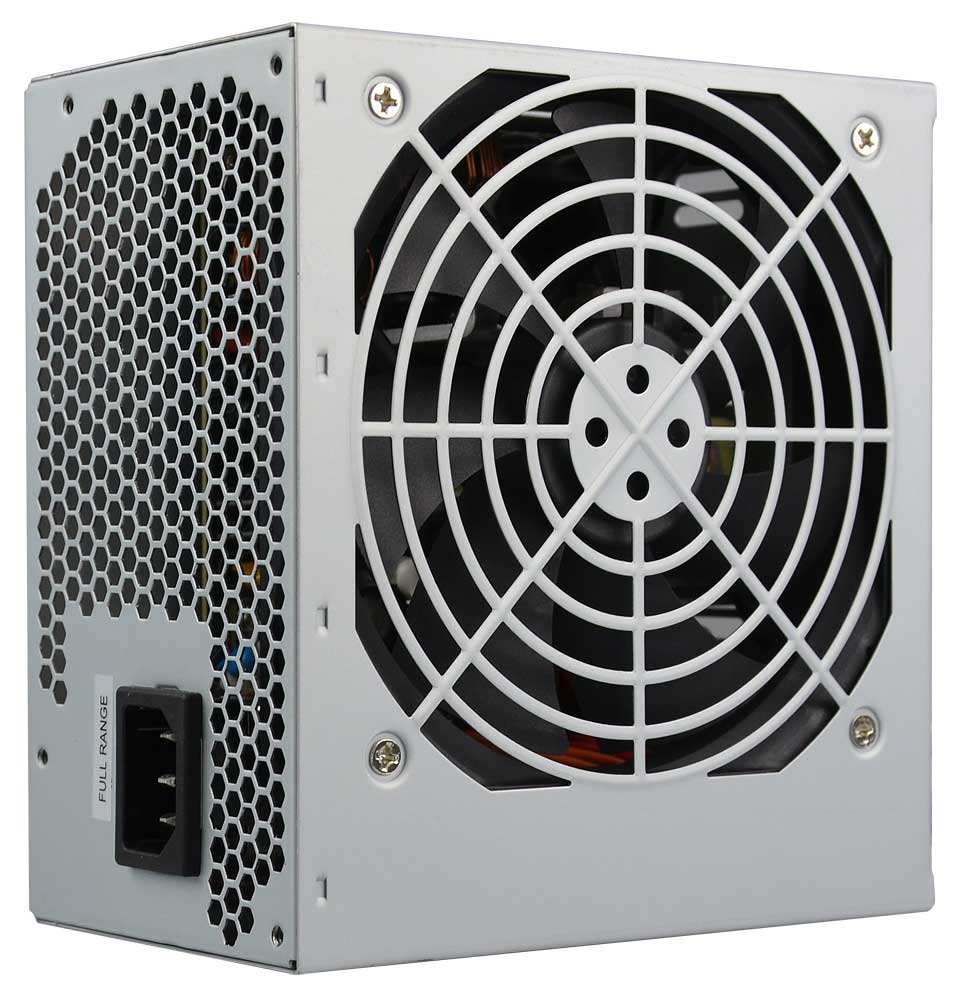

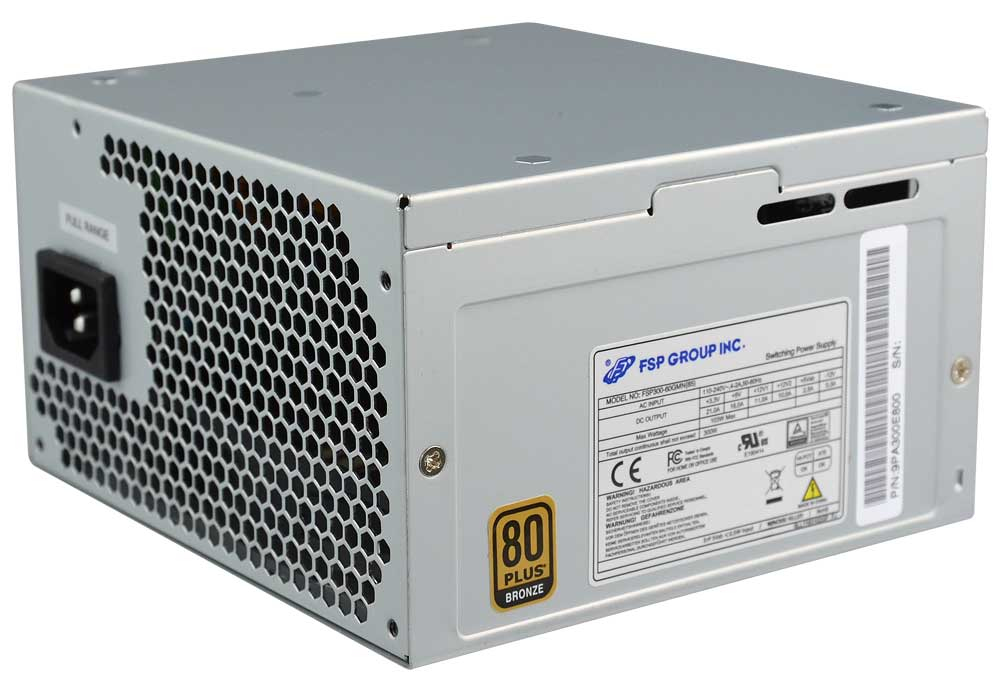

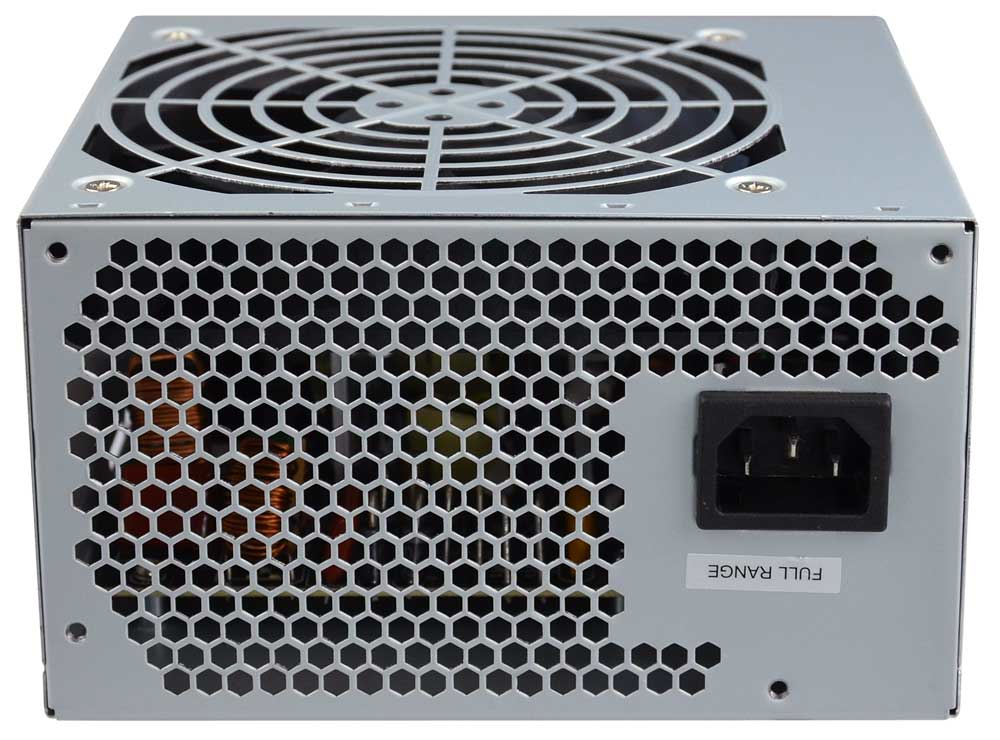

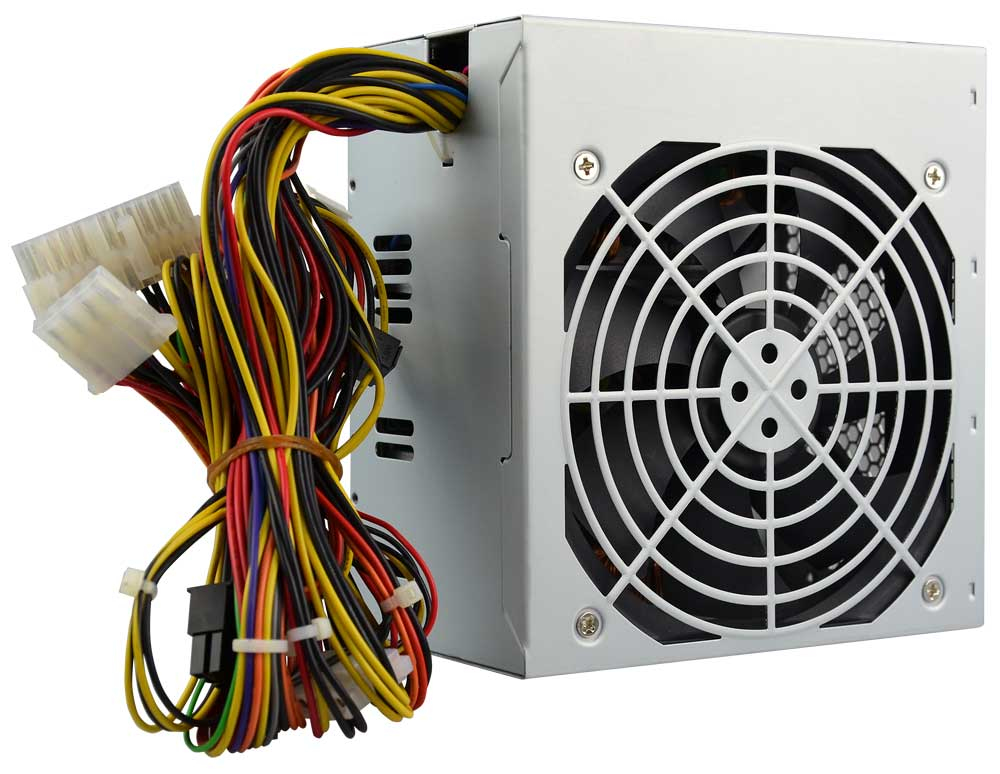

FSP300-60GMN 85+
Model FSP300-60GMN 85+Part no. 9PA300E800
35 specifications
- Noise32 dB
- ColourGrey
- Total power300 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Noise
- 32 dB
- Colour
- Grey
- Total power
- 300 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP300-60GMN 85+
- Part number
- 9PA300E800
- Also known as
- FSP FSP300-60GMN 85+ power supply unit 300 W 24-pin ATX ATX Grey
Specifications
35 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| Peak power | 350 W |
| AC input voltage | 99 - 265 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 252 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 18.5 W |
| Combined power (+5Vsb) | 18.5 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 11 A |
| Max output current (+12V2) | 10 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85.07% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| ATX version | 2.4 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Noise level (silent mode, <30%) | 32 dB |
