FSP300-60GHS-R power supply unit
300 W 20+4 pin ATX SFX Grey
Model FSP300-60GHS-REAN 845685000606
38 specifications
- Weight862 g
- ColourGrey
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width125 mm
Overview
- Weight
- 862 g
- Colour
- Grey
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP300-60GHS-R
- Part number
- FSP300-60GHS-R
- EAN / UPC
- 845685000606, 115970732995, 172304326305, 191120083490 +7 more
- Also known as
- FSP FSP300-60GHS-R power supply unit 300 W 20+4 pin ATX SFX Grey
Specifications
38 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3.5 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 14 A |
| Max output current (+12V2) | 16 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Short circuit |

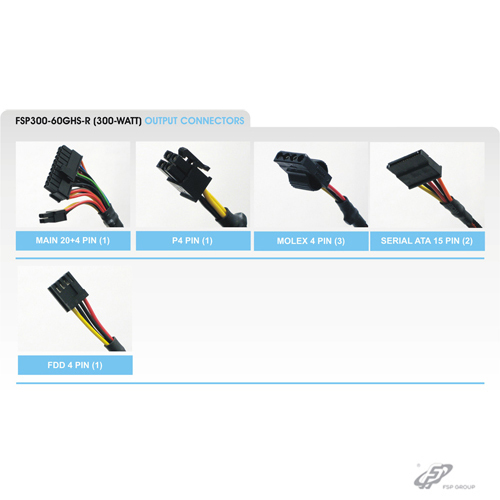

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Connector(s) | IEC C14 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS |
| Supported motherboard form factors | micro ATX |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | UL, FCC, CE, IEC, CSA, TUV/VDE, NEMKO, BSMI, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
| Weight | 862 g |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 81.5 x 40.3 mm |
| Power rocker switch | No |
