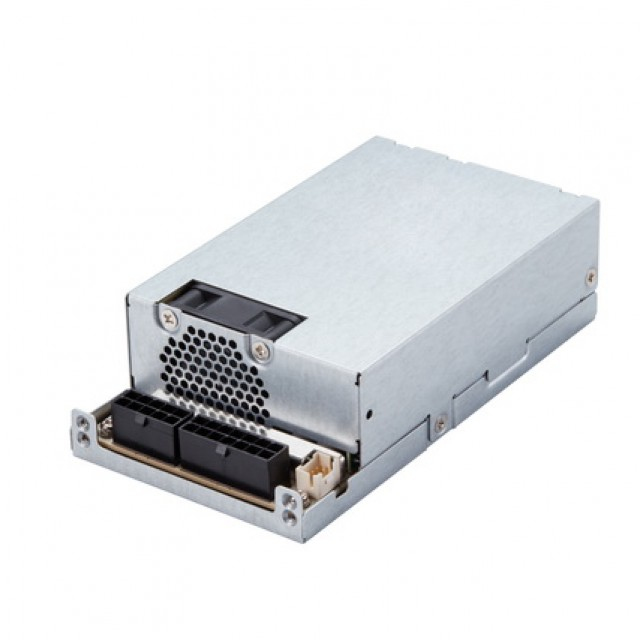

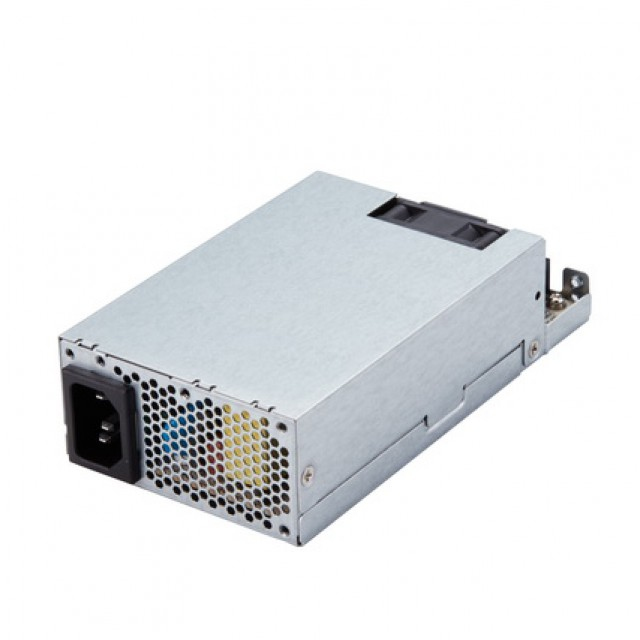

FSP300-57FCB power supply unit
300 W Grey
Model FSP300-57FCB
26 specifications
- ColourGrey
- Total power300 W
- PurposePC/Server
- Operating temperature (T-T)0 - 50 °C
- Width81.5 mm
- Sustainability complianceYes
Overview
- Colour
- Grey
- Total power
- 300 W
- Purpose
- PC/Server
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 81.5 mm
- Sustainability compliance
- Yes
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP300-57FCB
- Part number
- FSP300-57FCB
- Also known as
- FSP FSP300-57FCB power supply unit 300 W Grey
Specifications
26 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 3 A |
| Max output current (+3.3V) | 12 A |
| Max output current (+12V) | 25 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 4 cm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, China Compulsory Certification (CCC), Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81.5 mm |
| Depth | 150 mm |
| Height | 40.5 mm |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
