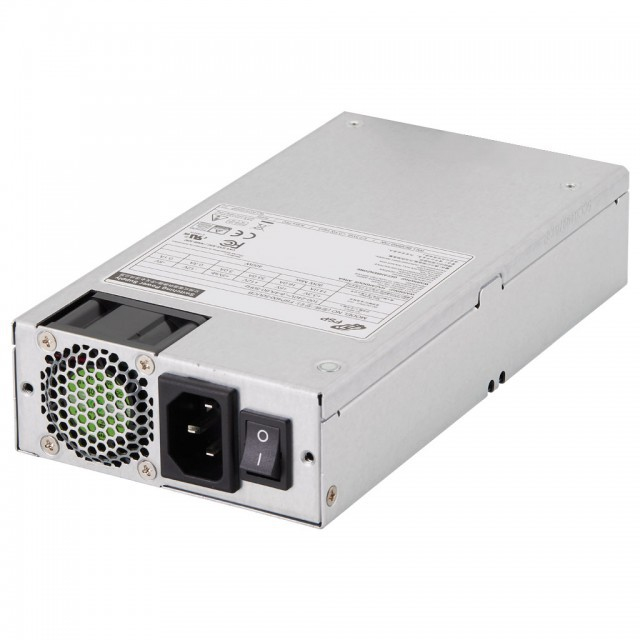

FSP300-50UCB power supply unit
300 W Silver
Model FSP300-50UCBEAN 4713224523588
18 specifications
- ColourSilver
- Total power300 W
- PurposeServer
- Operating temperature (T-T)0 - 50 °C
- Width100 mm
Overview
- Colour
- Silver
- Total power
- 300 W
- Purpose
- Server
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 100 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP300-50UCB
- Part number
- FSP300-50UCB
- EAN / UPC
- 4713224523588
- Also known as
- FSP FSP300-50UCB power supply unit 300 W Silver
Specifications
18 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50/60 Hz |
| Max output current (+3.3V) | 12 A |
| Max output current (+12V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| 80 PLUS certification | 80 PLUS Bronze |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 190 mm |
| Height | 40.5 mm |
