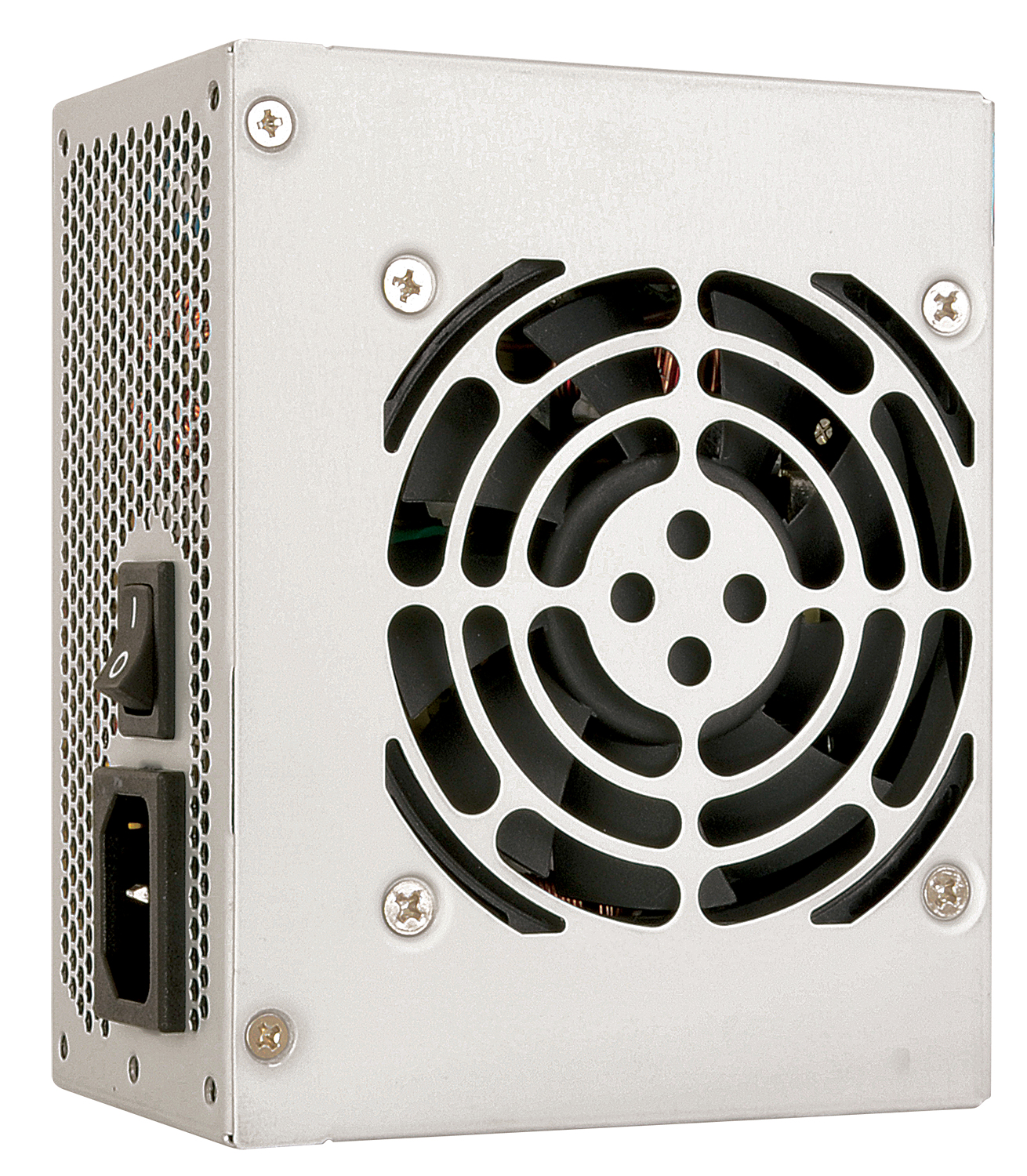

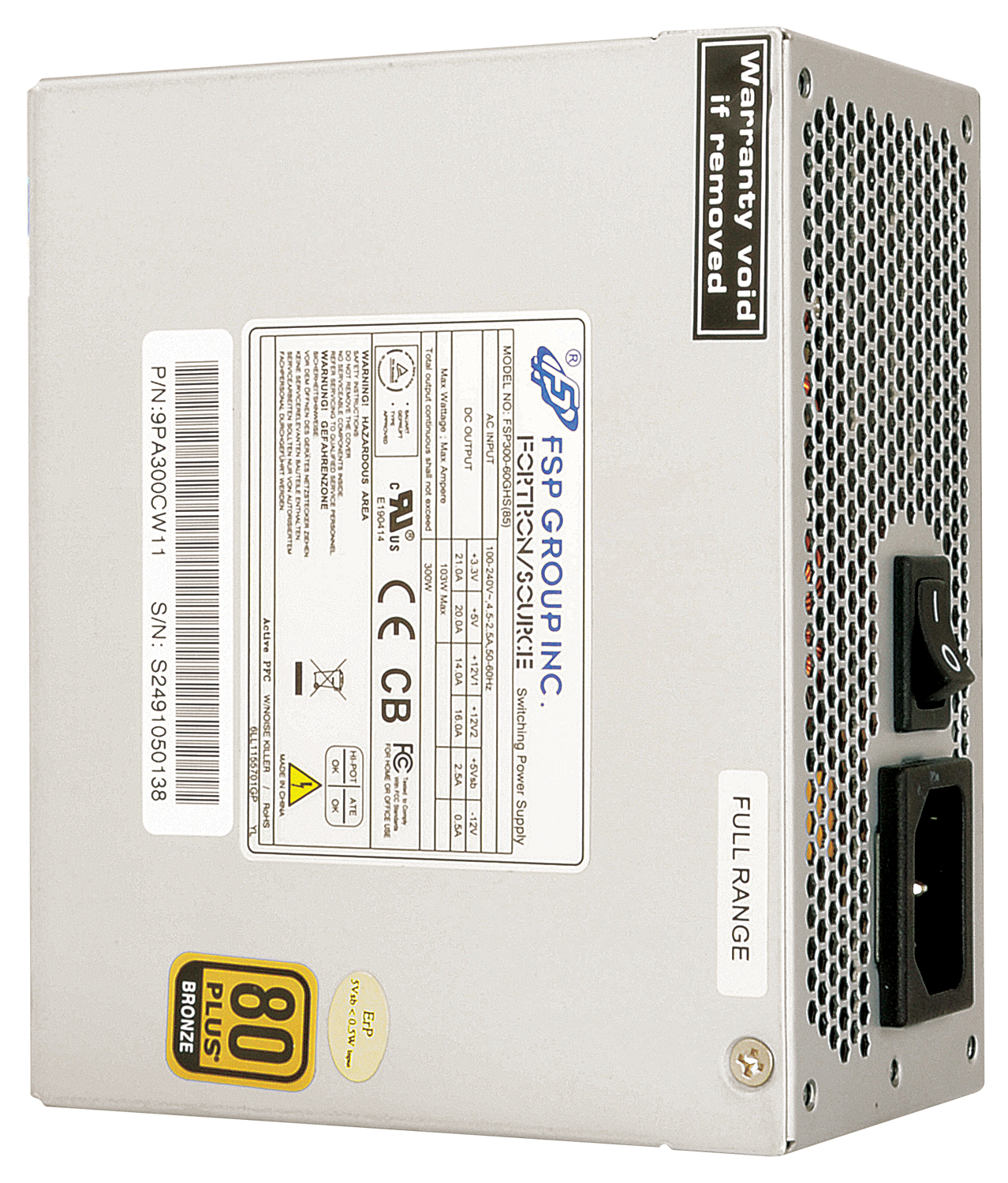

FSP300-50GHS 85+
Model FSP300-50GHS 85+Part no. 9PA300CW11EAN 4711140489612
33 specifications
- ColourWhite
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width125 mm
Overview
- Colour
- White
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 125 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP300-50GHS 85+
- Part number
- 9PA300CW11
- EAN / UPC
- 4711140489612, 5706998667441
- Also known as
- FSP FSP300-50GHS 85+ power supply unit 300 W 20+4 pin ATX SFX White
Specifications
33 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 90 - 265 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3.5 A |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 228 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 21 W |
| Combined power (+5Vsb) | 21 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 14 A |
| Max output current (+12V2) | 19 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 82% |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| CPU P4 connector (4-pin) | 1 |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Bronze |
| Supported motherboard form factors | ATX |
Design
| Specification | Value |
|---|---|
| Product colour | White |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
