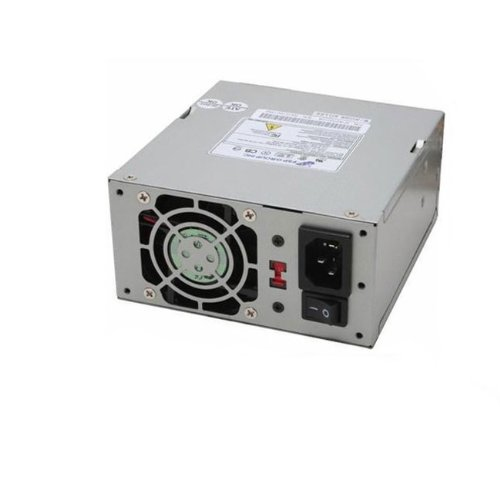

FSP270-50SNV power supply unit
270 W 20-pin ATX ATX Silver
Model FSP270-50SNV
25 specifications
- ColourSilver
- Total power270 W
- Motherboard power connector20-pin ATX
- PurposePC
- Width125 mm
Overview
- Colour
- Silver
- Total power
- 270 W
- Motherboard power connector
- 20-pin ATX
- Purpose
- PC
- Width
- 125 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP270-50SNV
- Part number
- FSP270-50SNV
- Also known as
- FSP FSP270-50SNV power supply unit 270 W 20-pin ATX ATX Silver
Specifications
25 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 270 W |
| AC input voltage | 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 3 A |
| Power Factor Correction (PFC) type | Passive |
| Power protection features | Input fuse, Over voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20-pin ATX |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
| On/off switch | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CSA, UL, IEC, TUV, NEMKO |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 130.3 mm |
| Height | 63.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
