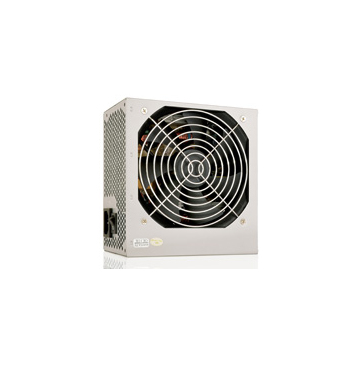

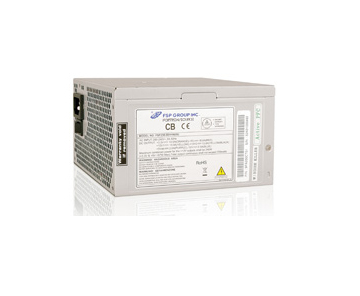

FSP250-60HHN 85+
FSP

FSP250-60HHN 85+

Model FSP250-60HHN 85+Part no. 9PA250CT01EAN 4711140489599

39 specifications
  • Noise25.6 dB
  • ColourGrey
  • Total power250 W
  • Motherboard power connector24-pin ATX
  • PurposePC
  • Width150 mm
See all specifications

Overview

Noise
25.6 dB
Colour
Grey
Total power
250 W
Motherboard power connector
24-pin ATX
Purpose
PC
Width
150 mm
Brand
FSP
Model
FSP250-60HHN 85+
Part number
9PA250CT01
EAN / UPC
4711140489599, 5711783794639
Also known as
FSP FSP250-60HHN 85+ power supply unit 250 W 24-pin ATX ATX Grey

Specifications

39 specifications in 7 groups

Power

Total power250 W
Peak power300 W
AC input voltage180 - 264 V
AC input frequency47 - 63 Hz
Input current1.5 A
Maximum input current (@110V)+12V1,+12V2,+3.3V,+5V,-12V,-5Vsb
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)97 W
Combined power (+5V)97 W
Combined power (-12V)18.5 W
Combined power (+5Vsb)18.5 W
Max output current (+3.3V)14 A
Max output current (+12V1)13 A
Max output current (+12V2)18 A
Max output current (+5V)18 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)2.5 A
Efficiency85.39%
Power protection featuresOver current, Over power, Over voltage, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector24-pin ATX
Number of SATA power connectors4
Peripheral (Molex) power connectors (4-pin)0
CPU P4 connector (4-pin)1
ATX Power connector (24-pin)Yes
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
ATX version2.4
Noise level25.6 dB

Design

Product colourGrey
Cooling typeActive
Number of fans1 fan(s)
Fan locationSide
On/off switchYes

Certificates

Compliance certificatesRoHS

Weight & dimensions

Width150 mm
Depth140 mm
Height86 mm

Technical details

Sustainability certificatesENERGY STAR
