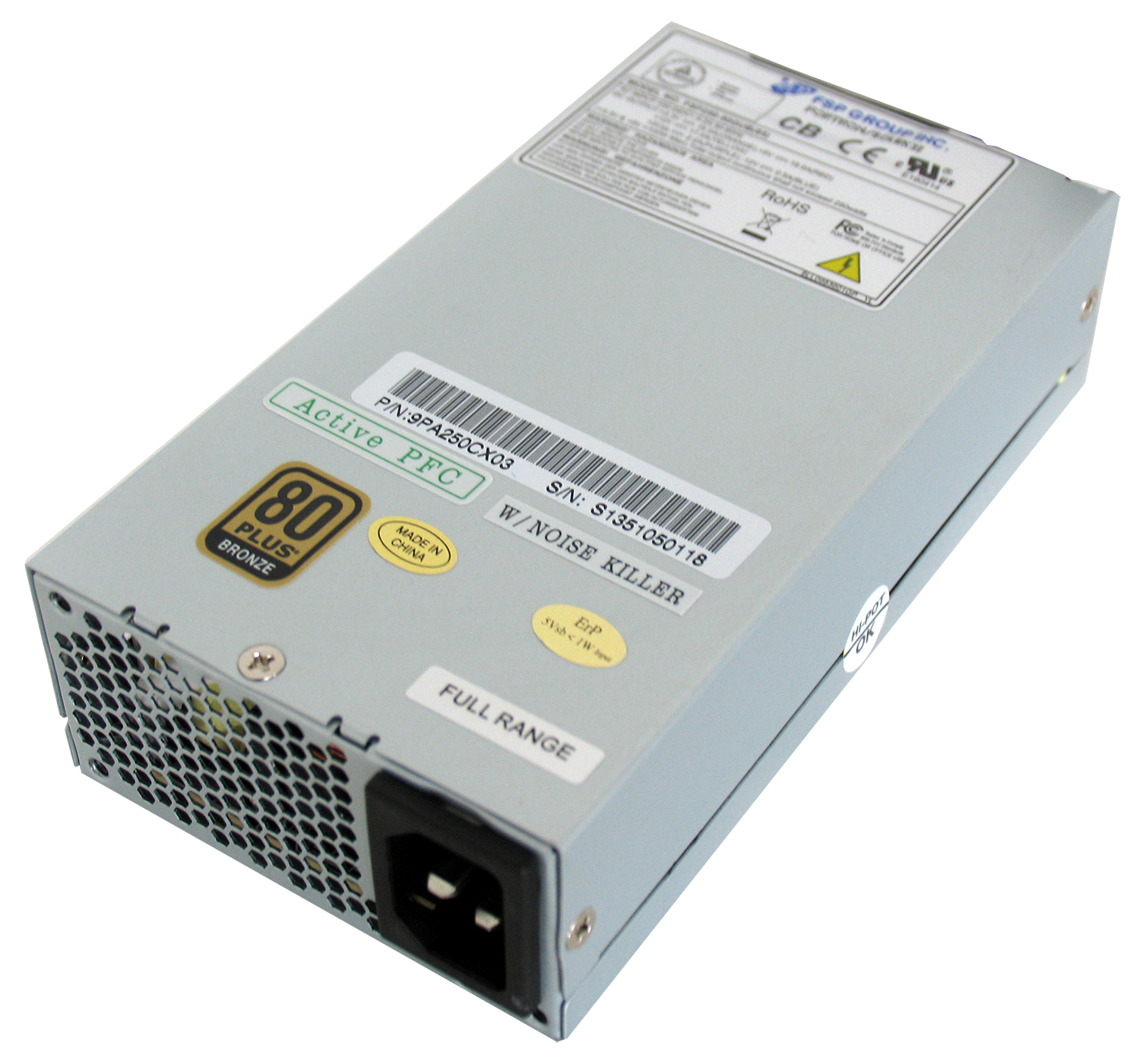

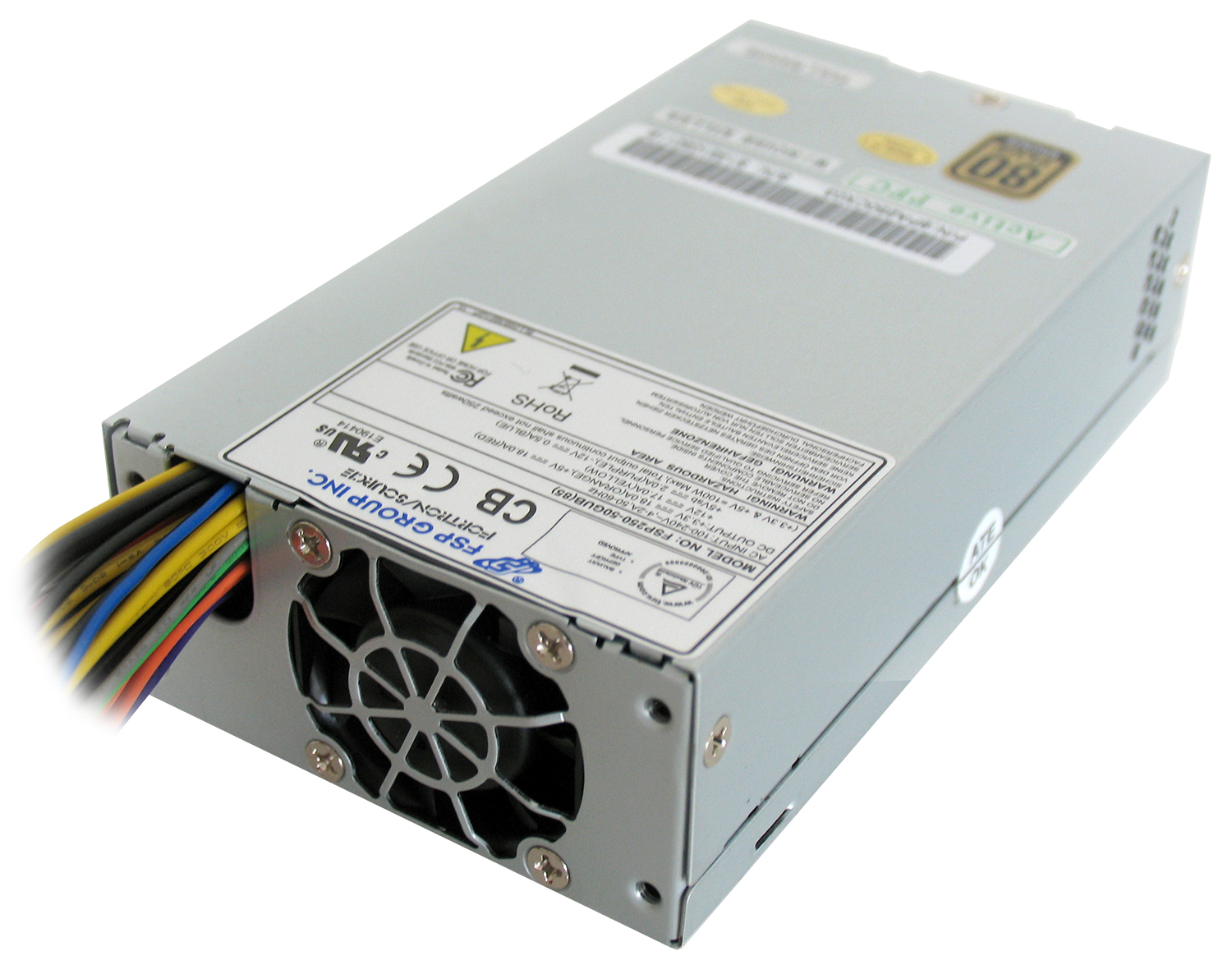

FSP250-50GUB 85+
Model FSP250-50GUB 85+Part no. 9PA250CX03EAN 4711140488523
48 specifications
- Noise25 dB
- Weight1.29 kg
- ColourGrey
- Total power250 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 25 dB
- Weight
- 1.29 kg
- Colour
- Grey
- Total power
- 250 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP250-50GUB 85+
- Part number
- 9PA250CX03
- EAN / UPC
- 4711140488523, 000000368292, 4260321235178, 5050914871789 +1 more
- Also known as
- FSP FSP250-50GUB 85+ power supply unit 250 W 24-pin ATX Flex ATX Grey
Specifications
48 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 250 W |
| AC input voltage | 90 - 264 V |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 59.4 W |
| Combined power (+12V) | 204 W |
| Combined power (+5V) | 90 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 10 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 17 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Efficiency | 85% |
| Hold time | 17 ms |
| Power protection features | Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | Flex ATX |
| 80 PLUS certification | 80 PLUS Bronze |
| Noise level | 25 dB |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 50 - 122 °F |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 150 mm |
| Height | 40 mm |
| Weight | 1.29 kg |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 768 pc(s) |
| Country of origin | China |
Other features
| Specification | Value |
|---|---|
| Voltage tolerance | 10% |
| Frequency tolerance | 5% |
| Rise time | 20 ms |
