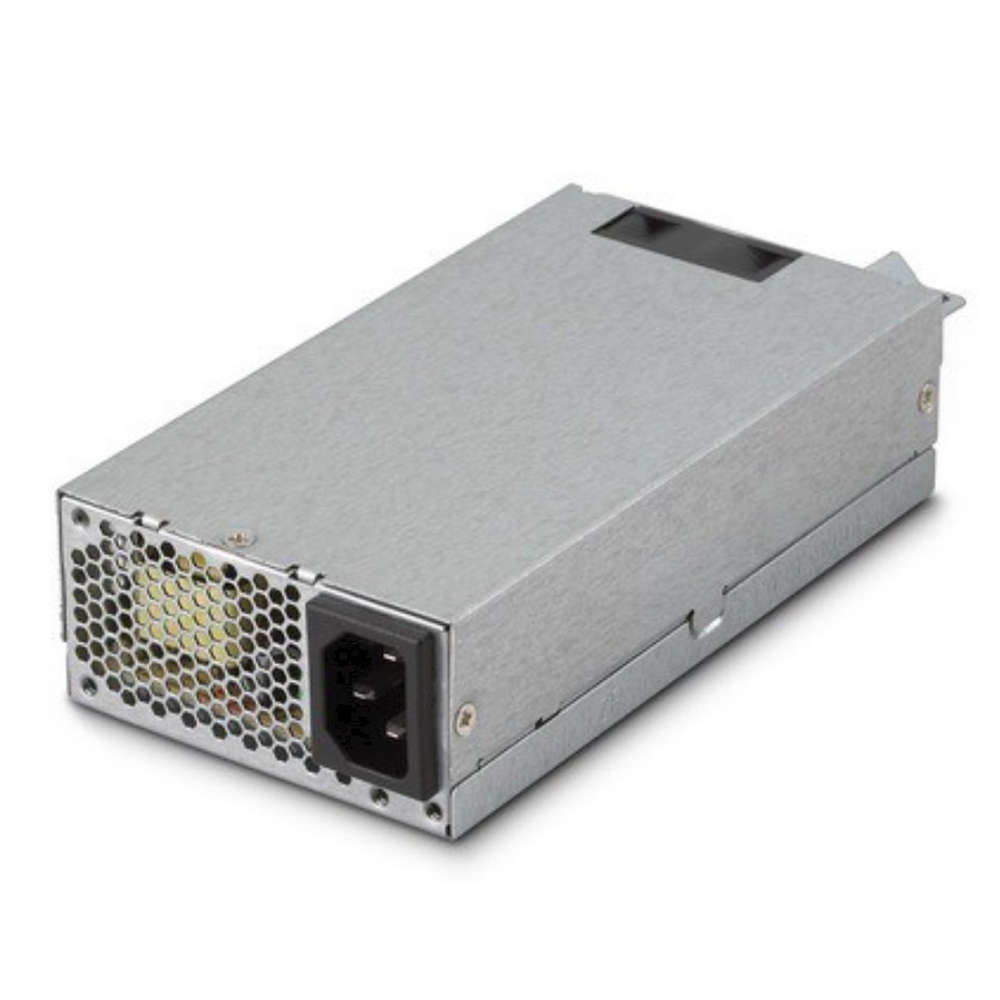

FSP250-50FEB power supply unit
250 W Flex ATX
Model FSP250-50FEBPart no. 9PA250FK08EAN 4713224523274
30 specifications
- Total power250 W
- PurposePC
- Cooling typeActive
- Operating temperature (T-T)0 - 50 °C
- Width150 mm
Overview
- Total power
- 250 W
- Purpose
- PC
- Cooling type
- Active
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP250-50FEB
- Part number
- 9PA250FK08
- EAN / UPC
- 4713224523274, 5715063470572
- Also known as
- FSP FSP250-50FEB power supply unit 250 W Flex ATX
Specifications
30 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 250 W |
| AC input voltage | 90 -264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 2 - 4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 80 W |
| Combined power (+5V) | 80 W |
| Max output current (+3.3V) | 12 A |
| Max output current (+12V) | 18 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 85% |
| Hold time | 16 ms |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | Flex ATX |
| 80 PLUS certification | 80 PLUS |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CB 62368, CE, EMC, FCC, TUV, CUL, CCC, BSMI, UKCA, KC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 40.5 mm |
| Height | 81.5 mm |
