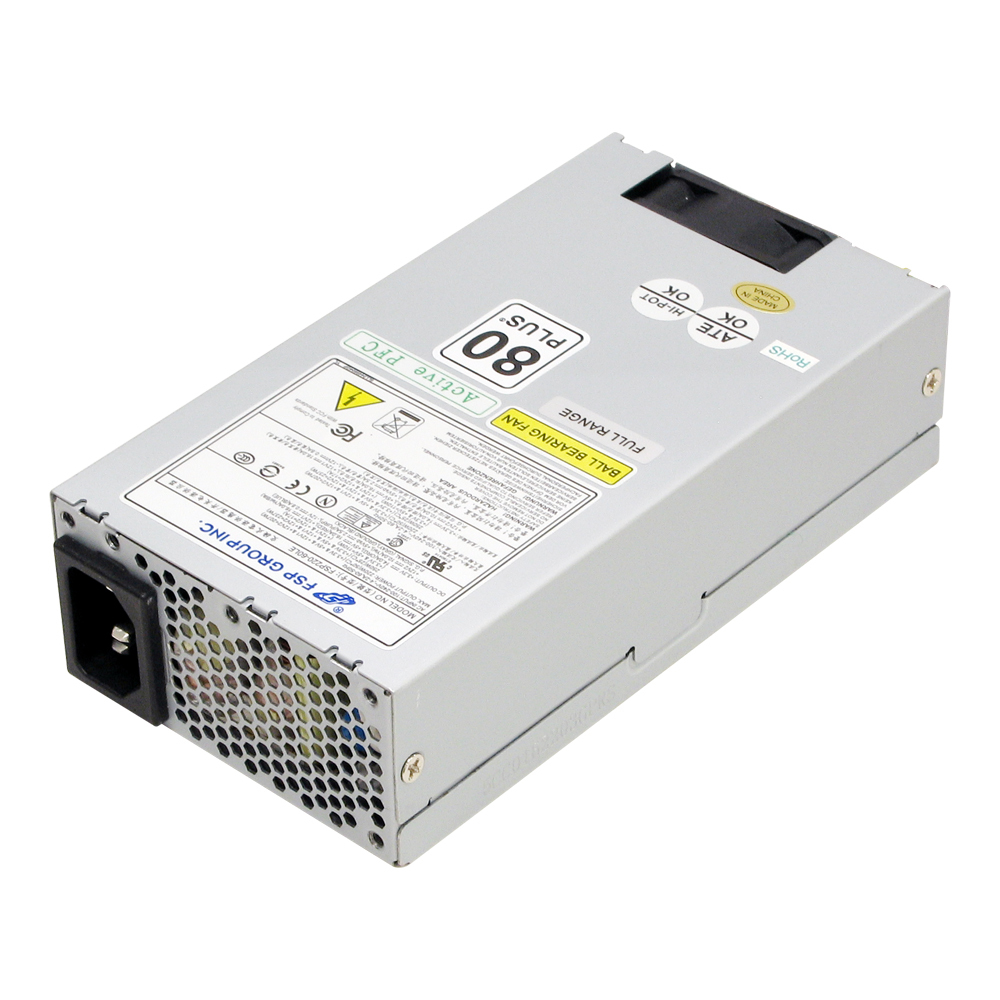

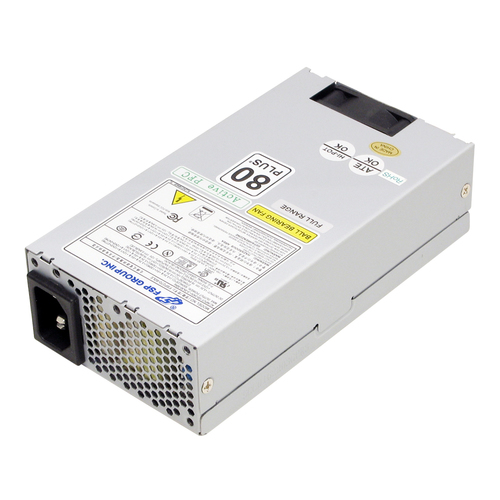

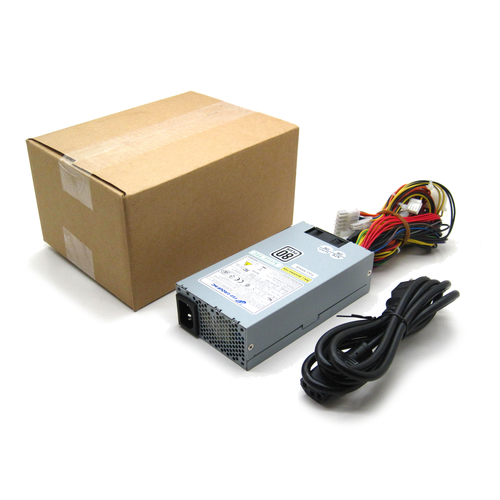

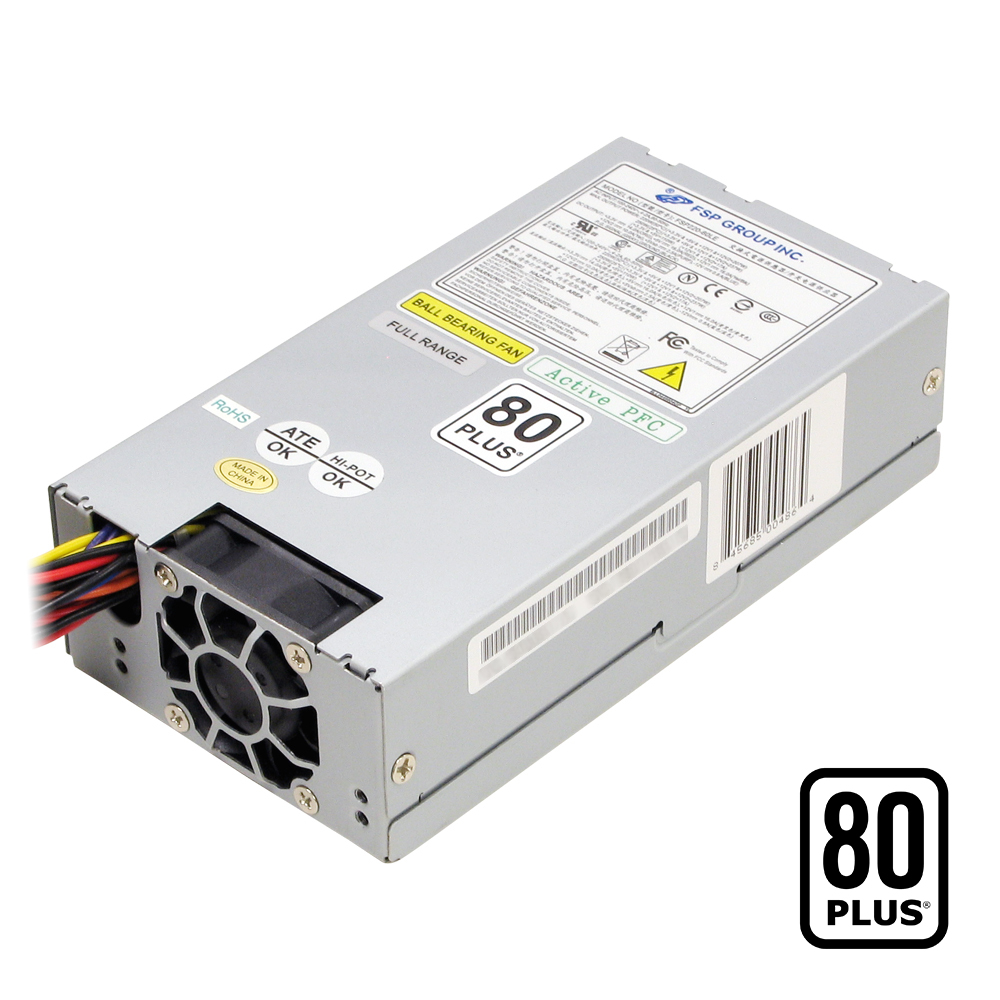

FSP220-60LE(80) power supply unit
220 W 20+4 pin ATX ATX Grey
Model FSP220-60LE(80)EAN 163120478569
36 specifications
- Weight1.36 kg
- ColourGrey
- Total power220 W
- Motherboard power connector20+4 pin ATX
- Power supply unit (PSU) form factorATX
- SafetyUL, NEMKO, TUV, CSA, IEC, CE
Overview
- Weight
- 1.36 kg
- Colour
- Grey
- Total power
- 220 W
- Motherboard power connector
- 20+4 pin ATX
- Power supply unit (PSU) form factor
- ATX
- Safety
- UL, NEMKO, TUV, CSA, IEC, CE
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP220-60LE(80)
- Part number
- FSP220-60LE(80)
- EAN / UPC
- 163120478569, 100177361178, 115970733107, 168141583773 +1 more
- Also known as
- FSP FSP220-60LE(80) power supply unit 220 W 20+4 pin ATX ATX Grey
Specifications
36 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 220 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 5 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V1) | 16 A |
| Max output current (+12V2) | 10 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 2.5 A |
| Power protection features | Over current, Over voltage, Short circuit |

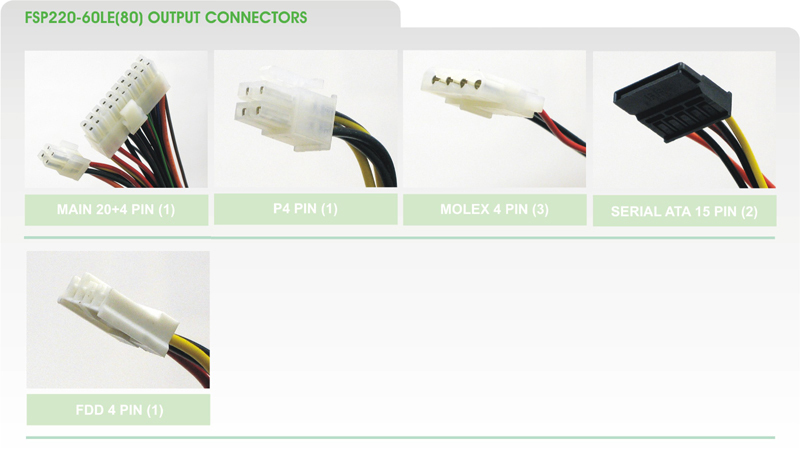

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Connector(s) | IEC C14 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | UL, NEMKO, TUV, CSA, IEC, CE |

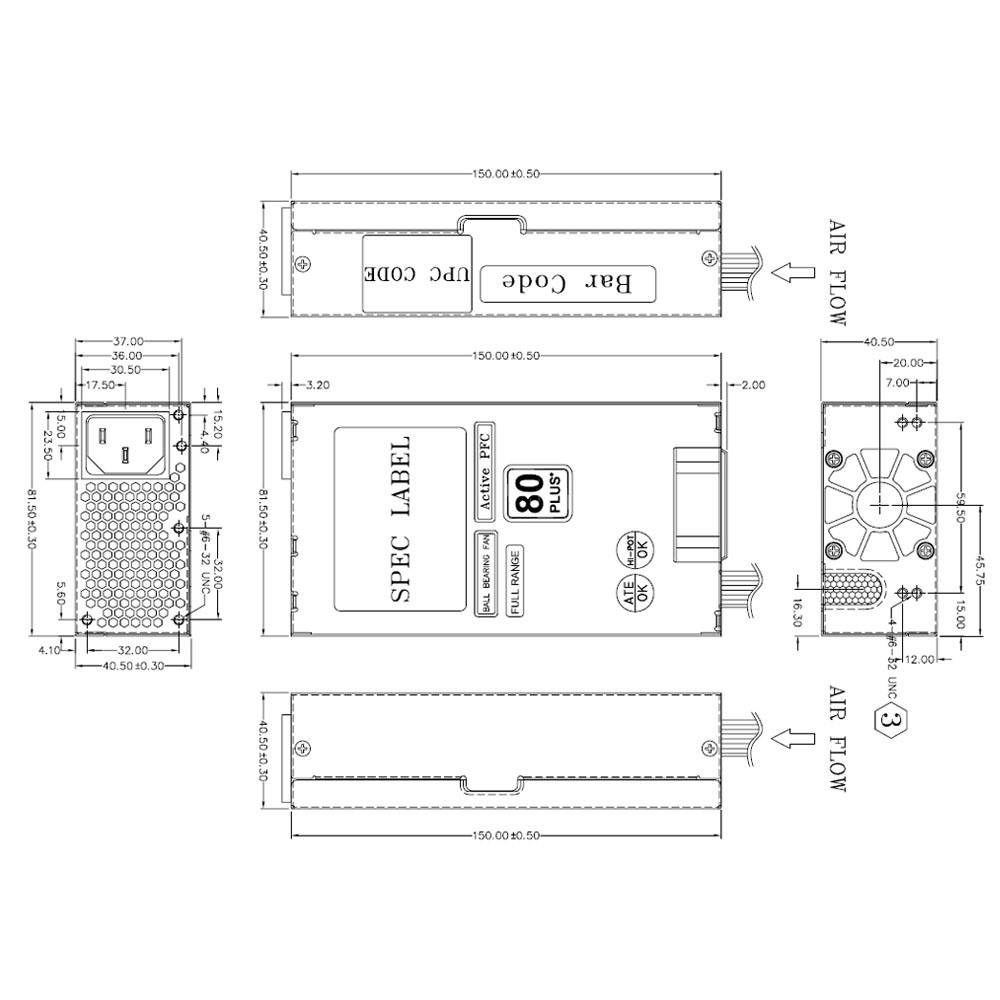

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 80 mm |
| Depth | 150 mm |
| Height | 40 mm |
| Weight | 1.36 kg |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 150 x 81.5 x 40.3 mm |
| Power rocker switch | No |
What people say
Reviews & ratings
FSP220-60LE(80) power supply unit
No reviews yet
Be the first to tell others how FSP220-60LE(80) power supply unit works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare FSP220-60LE(80) power supply unit

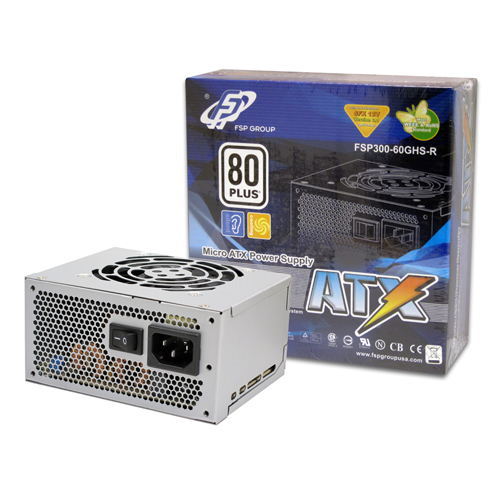

All power supply unit comparisons- FSP220-60LE(80) power supply unit vsFSP300-60GHS-R power supply unitCompare specs

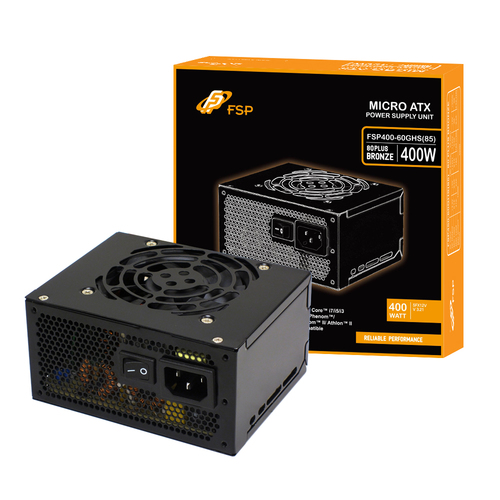

- FSP220-60LE(80) power supply unit vsFSP400-60GHS(85)-R power supply unitCompare specs
- FSP220-60LE(80) power supply unit vsFSP270-60LE(80) power supply unitCompare specs
- FSP220-60LE(80) power supply unit vsFSP300-60PLN power supply unitCompare specs

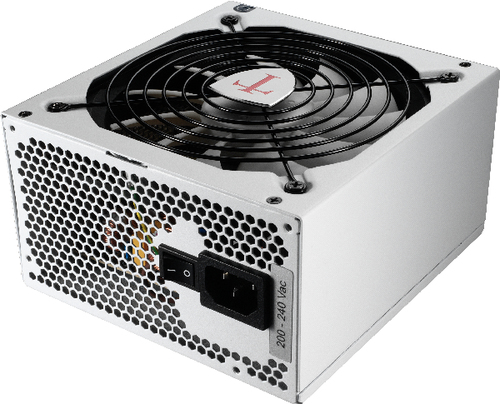

- FSP220-60LE(80) power supply unit vsAerocool Imperator power supply unitCompare specs

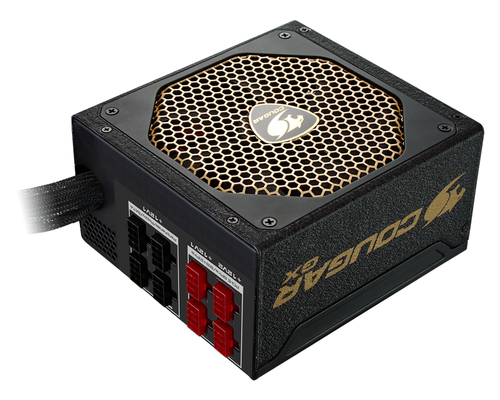

- FSP220-60LE(80) power supply unit vsCOUGAR GX 800Compare specs

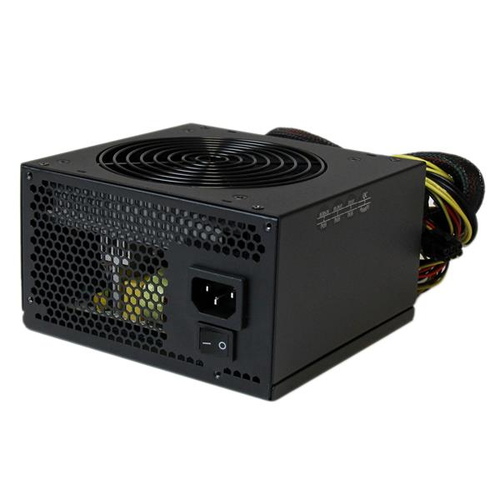

- FSP220-60LE(80) power supply unit vsStarTech.com 430 Watt ATX12V 2.3 80 Plus Computer Power Supply w/ Active PFCCompare specs
