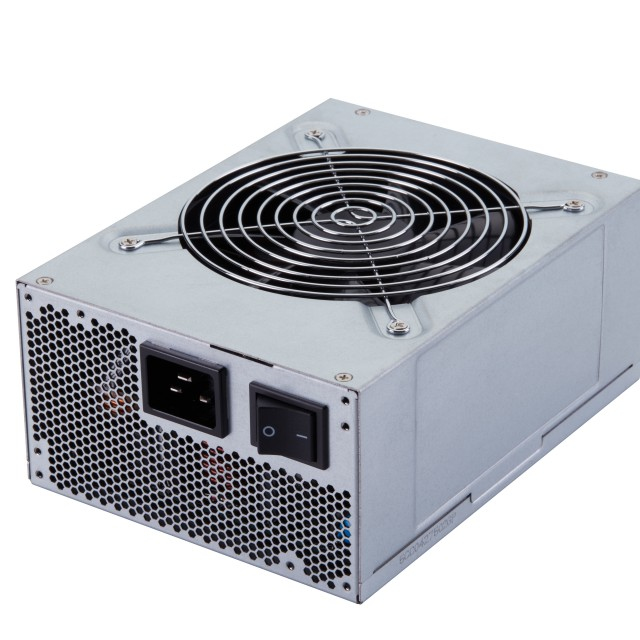

FSP2000-A0AGPBI power supply unit
2000 W Grey
Model FSP2000-A0AGPBIPart no. 9PA20A0100
31 specifications
- ColourGrey
- Total power2000 W
- PCI Express power connectors (6+2 pin)16
- PurposePC/Server
- Storage temperature (T-T)20 - 80 °C
- Width150 mm
Overview
- Colour
- Grey
- Total power
- 2000 W
- PCI Express power connectors (6+2 pin)
- 16
- Purpose
- PC/Server
- Storage temperature (T-T)
- 20 - 80 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP2000-A0AGPBI
- Part number
- 9PA20A0100
- Also known as
- FSP FSP2000-A0AGPBI power supply unit 2000 W Grey
Specifications
31 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 2000 W |
| AC input voltage | 90 - 624 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 15 A |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 30 A |
| Max output current (+12V2) | 30 A |
| Max output current (+12V3) | 30 A |
| Max output current (+12V4) | 30 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 93% |
| Hold time | 17 ms |
| Power protection features | Input fuse, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| PCI Express power connectors (6+2 pin) | 16 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| 80 PLUS certification | 80 PLUS Platinum |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | 20 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
Other features
| Specification | Value |
|---|---|
| Voltage tolerance | 5% |
| Operating altitude | 0 - 5000 m |
