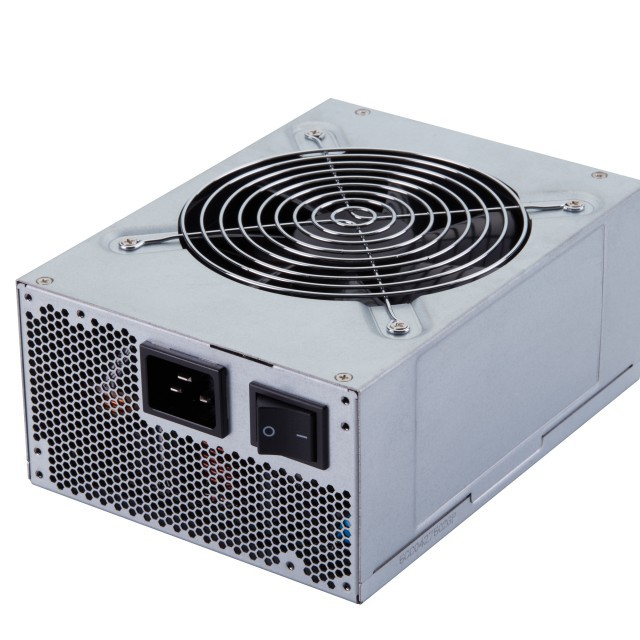

FSP2000-52AGPBI power supply unit
2000 W ATX Silver
Model FSP2000-52AGPBIEAN 4713224527777
26 specifications
- ColourSilver
- Total power2000 W
- PCI Express power connectors (6+2 pin)1
- PurposePC/Server
- Operating temperature (T-T)0 - 50 °C
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 2000 W
- PCI Express power connectors (6+2 pin)
- 1
- Purpose
- PC/Server
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP2000-52AGPBI
- Part number
- FSP2000-52AGPBI
- EAN / UPC
- 4713224527777
- Also known as
- FSP FSP2000-52AGPBI power supply unit 2000 W ATX Silver
Specifications
26 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 2000 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+5V) | 150 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 166.6 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 4 A |
Ports & interfaces
| Specification | Value |
|---|---|
| PCI Express power connectors (6+2 pin) | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CB 62368-1 & CB 60950-1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
