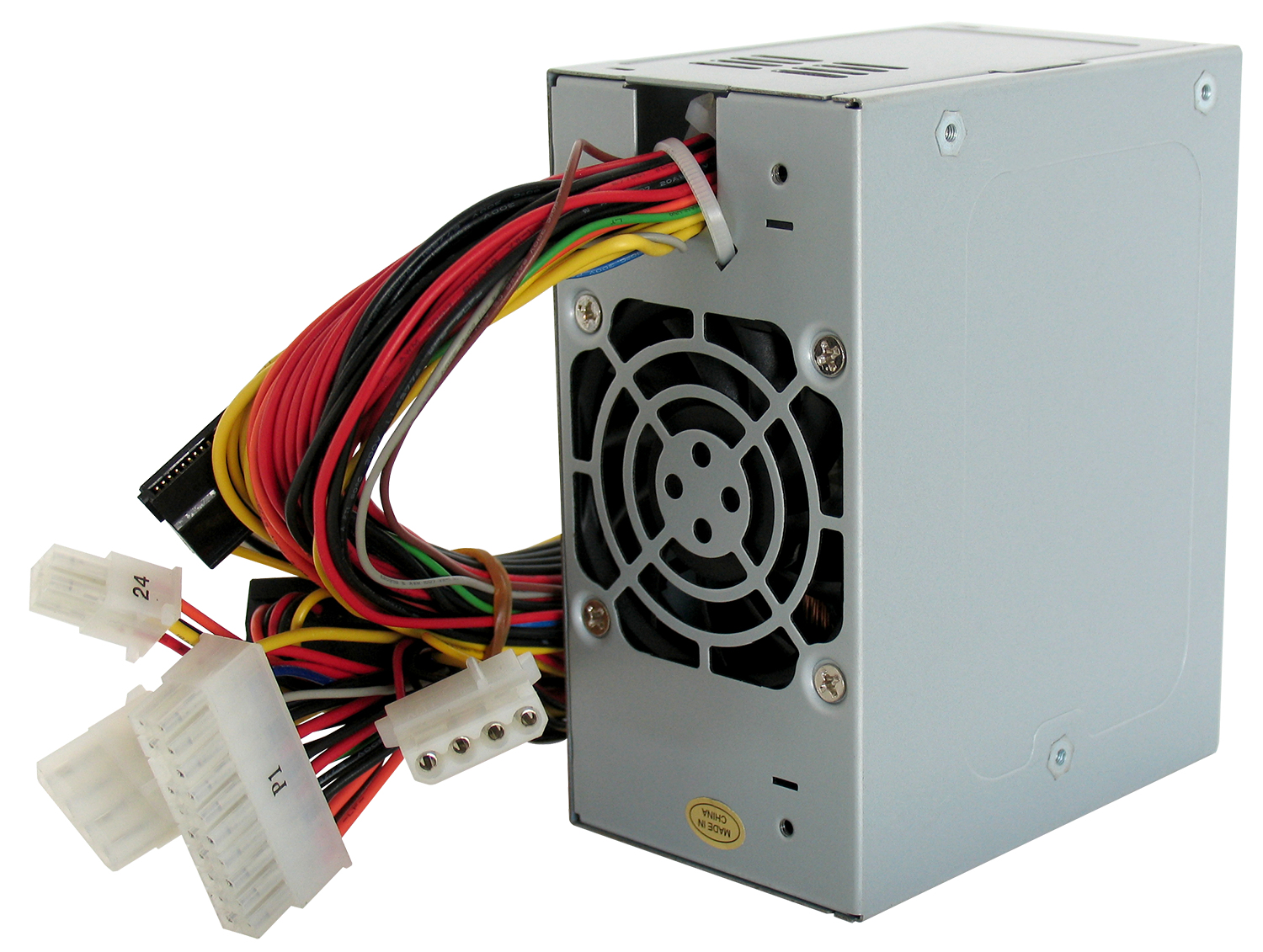

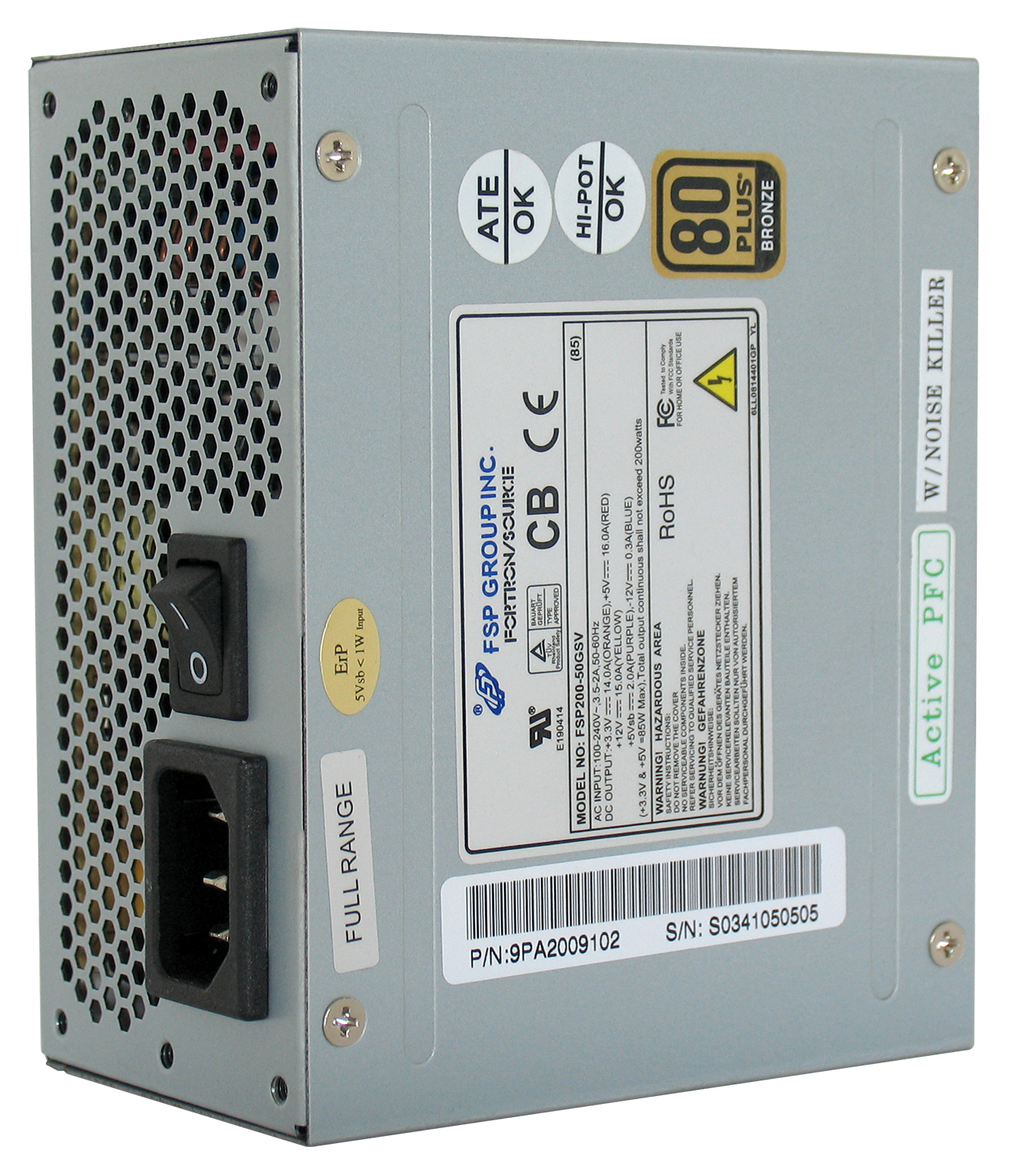

FSP200-50GSV-5K 85+
Model FSP200-50GSV-5K 85+Part no. 9PA200A001EAN 4711140488509
34 specifications
- ColourGrey
- Total power200 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Width125 mm
Overview
- Colour
- Grey
- Total power
- 200 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Width
- 125 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP200-50GSV-5K 85+
- Part number
- 9PA200A001
- EAN / UPC
- 4711140488509, 4711140489568
- Also known as
- FSP FSP200-50GSV-5K 85+ power supply unit 200 W 20+4 pin ATX SFX Grey
Specifications
34 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 200 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 85 W |
| Combined power (+12V) | 180 W |
| Combined power (+5V) | 85 W |
| Combined power (-12V) | 13.6 W |
| Combined power (+5Vsb) | 13.6 W |
| Max output current (+3.3V) | 14 A |
| Max output current (+12V) | 17 A |
| Max output current (+5V) | 16 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 82% |
| Power protection features | Over current, Over voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU P4 connector (4-pin) | 1 |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Bronze |
| Supported motherboard form factors | micro ATX |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Number of fans | 1 fan(s) |
| Fan location | Side |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
