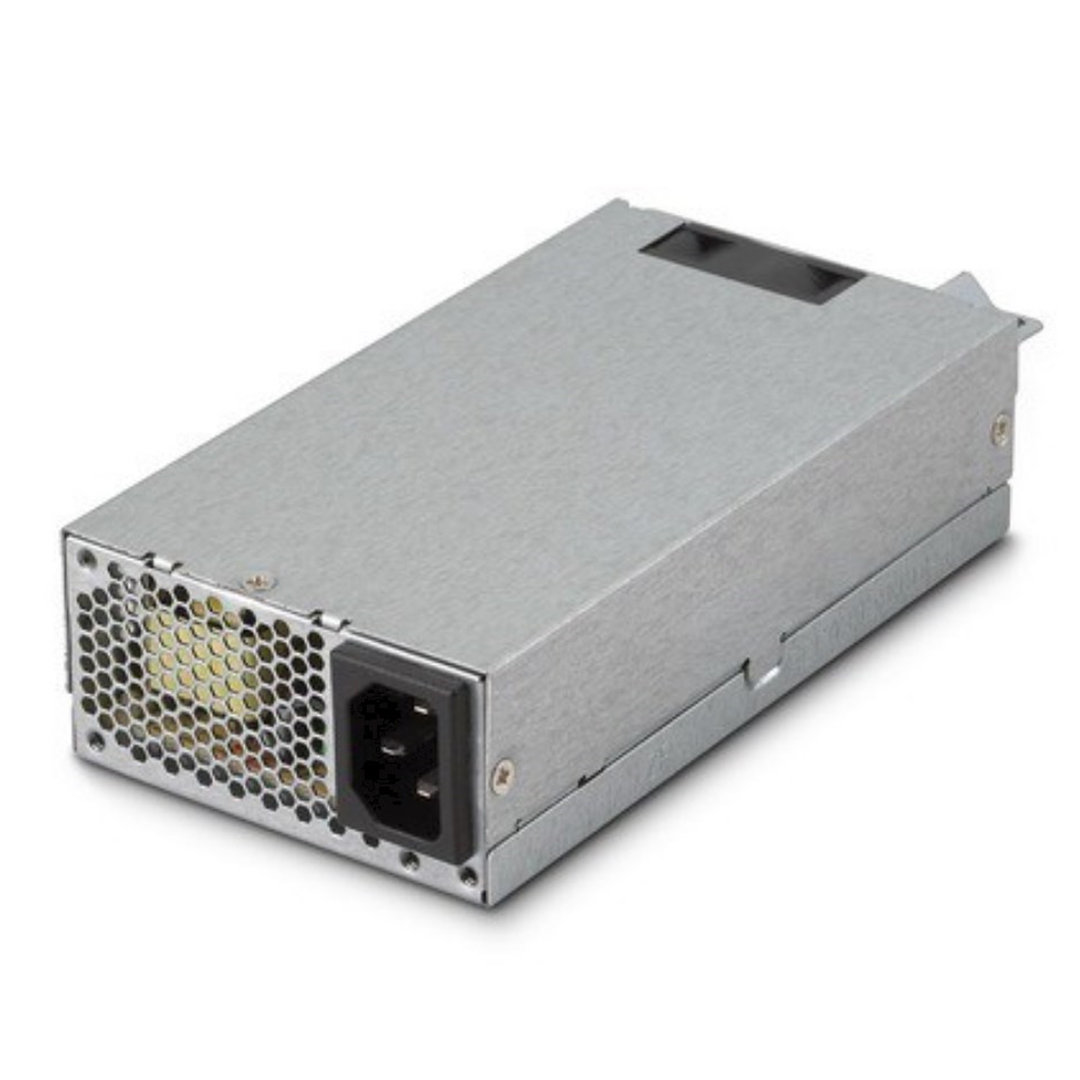

FSP180-50FEB power supply unit
180 W 20+4 pin ATX Flex ATX Metallic
Model FSP180-50FEBEAN 4713224523663
25 specifications
- ColourMetallic
- Total power180 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Operating temperature (T-T)0 - 50 °C
- Width81.5 mm
Overview
- Colour
- Metallic
- Total power
- 180 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Operating temperature (T-T)
- 0 - 50 °C
- Width
- 81.5 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP180-50FEB
- Part numbers
- FSP180-50FEB, 9PA1806203
- EAN / UPC
- 4713224523663, 5715063322116
- Also known as
- FSP FSP180-50FEB power supply unit 180 W 20+4 pin ATX Flex ATX Metallic
Specifications
25 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 180 W |
| AC input voltage | 115 - 230 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 1 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Floppy disk drive connector | Yes |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | Flex ATX |
| 80 PLUS certification | 80 PLUS |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Metallic |
| Cooling type | Active |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, UL, cUL, FCC, TÜV, CCC ROHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 81.5 mm |
| Depth | 150 mm |
| Height | 40.5 mm |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
Technical details
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
