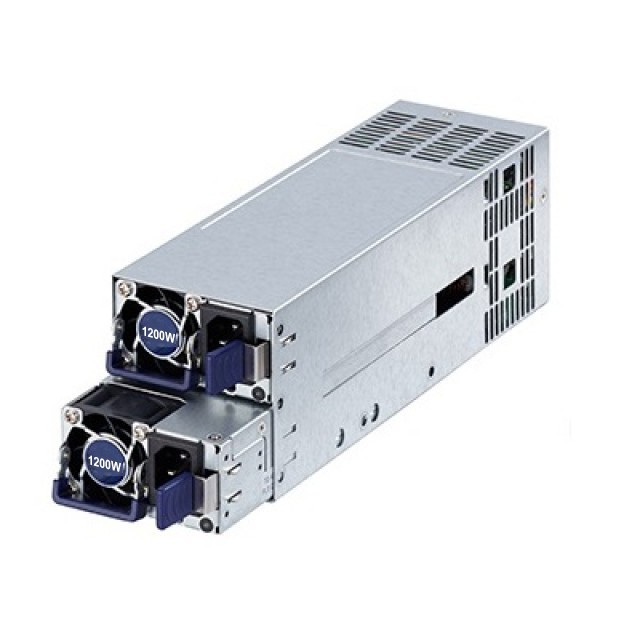

FSP1200-50FS power supply unit
1200 W Silver
Model FSP1200-50FS
16 specifications
- ColourSilver
- Total power1200 W
- 80 PLUS certification80 PLUS Platinum
- Operating temperature (T-T)0 - 55 °C
Overview
- Colour
- Silver
- Total power
- 1200 W
- 80 PLUS certification
- 80 PLUS Platinum
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP1200-50FS
- Part number
- FSP1200-50FS
- Also known as
- FSP FSP1200-50FS power supply unit 1200 W Silver
Specifications
16 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 97 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.3 A |
Performance
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Platinum |
| Mean time between failures (MTBF) | 500000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
