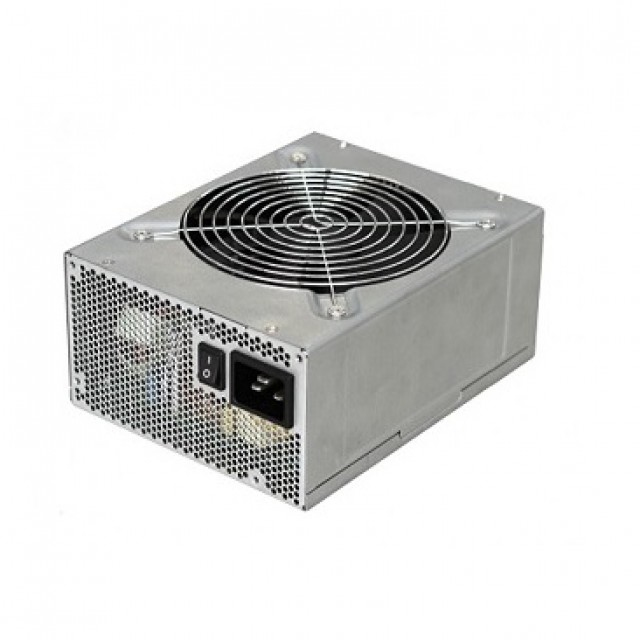

FSP1200-50AAG power supply unit
1200 W Silver
Model FSP1200-50AAG
15 specifications
- ColourSilver
- Total power1200 W
- 80 PLUS certification80 PLUS Gold
- Storage temperature (T-T)-20 - 80 °C
- Width150 mm
Overview
- Colour
- Silver
- Total power
- 1200 W
- 80 PLUS certification
- 80 PLUS Gold
- Storage temperature (T-T)
- -20 - 80 °C
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP1200-50AAG
- Part number
- FSP1200-50AAG
- Also known as
- FSP FSP1200-50AAG power supply unit 1200 W Silver
Specifications
15 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V1) | 100 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 90% |
| Power protection features | Over power, Over voltage, Short circuit |
Performance
| Specification | Value |
|---|---|
| 80 PLUS certification | 80 PLUS Gold |
| Mean time between failures (MTBF) | 100000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Silver |
Operational conditions
| Specification | Value |
|---|---|
| Storage temperature (T-T) | -20 - 80 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 190 mm |
| Height | 86 mm |
