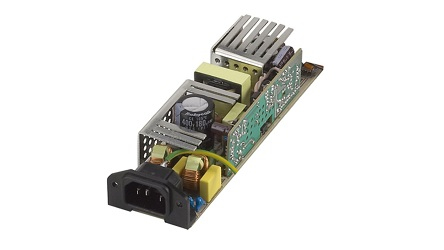

FSP055-50LM power supply unit
55 W Flex ATX
Model FSP055-50LM
12 specifications
- Total power55 W
- PurposePC
- Width50.8 mm
Overview
- Total power
- 55 W
- Purpose
- PC
- Width
- 50.8 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FSP055-50LM
- Part number
- FSP055-50LM
- Also known as
- FSP FSP055-50LM power supply unit 55 W Flex ATX
Specifications
12 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 55 W |
| Max output current (+3.3V) | 4 A |
| Max output current (+12V) | 3.5 A |
| Max output current (+5V) | 7 A |
| Max output current (-12V) | 0.1 A |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | Flex ATX |
| Supported motherboard form factors | Mini-ITX |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50.8 mm |
| Depth | 180.1 mm |
| Height | 40 mm |
