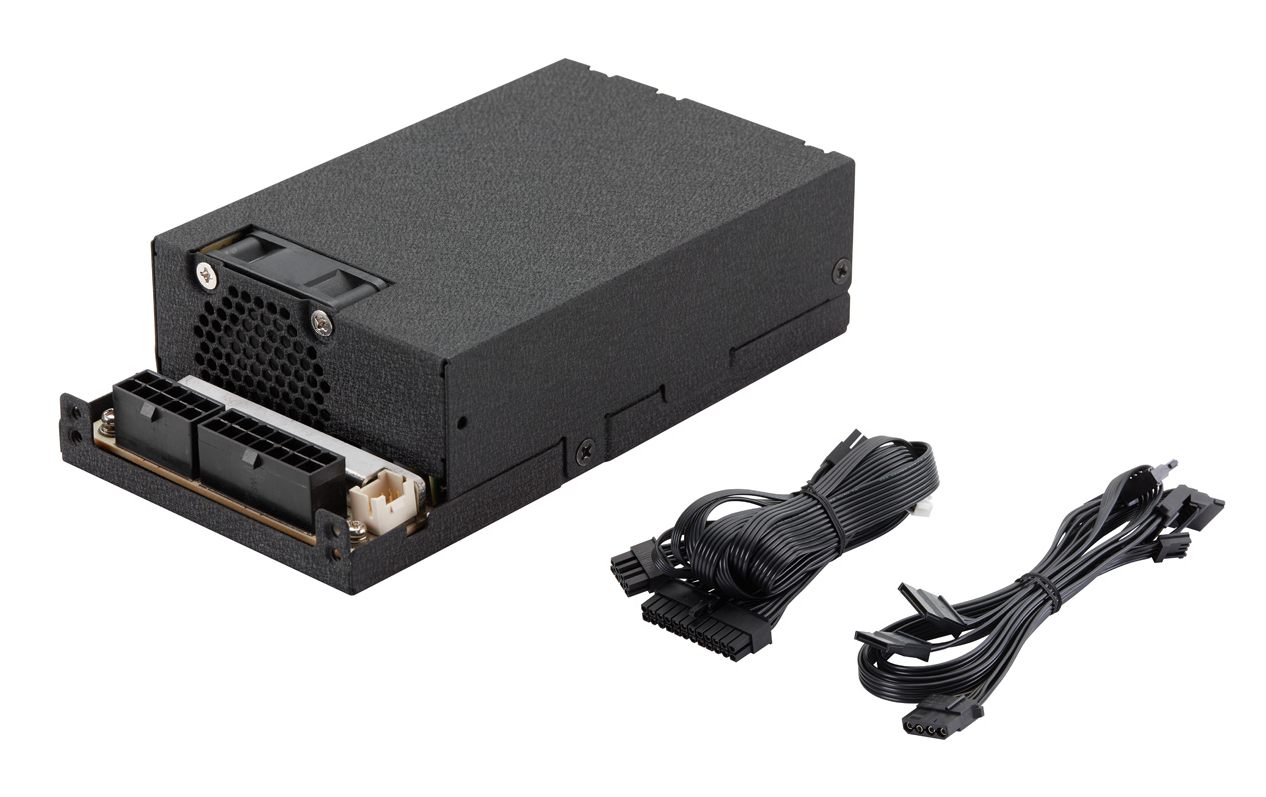

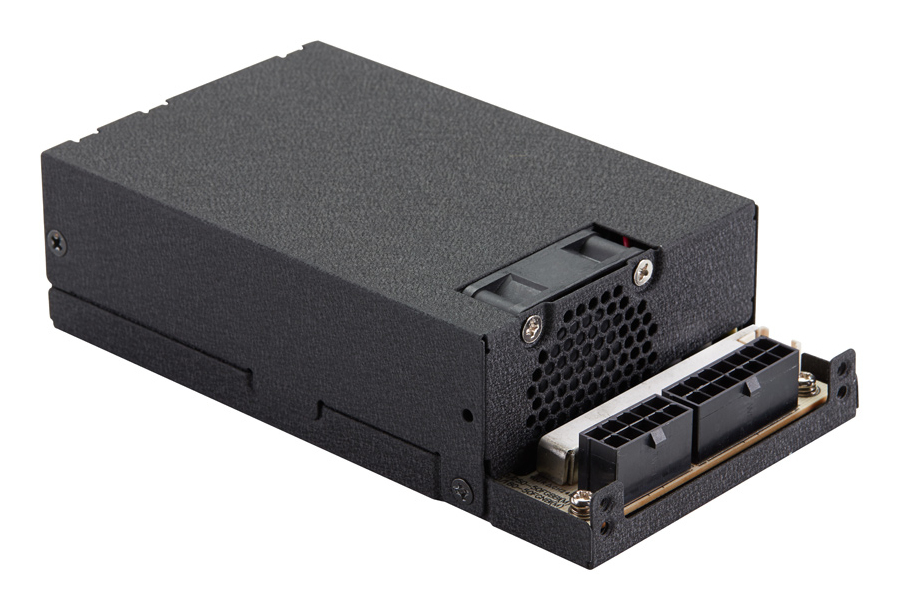

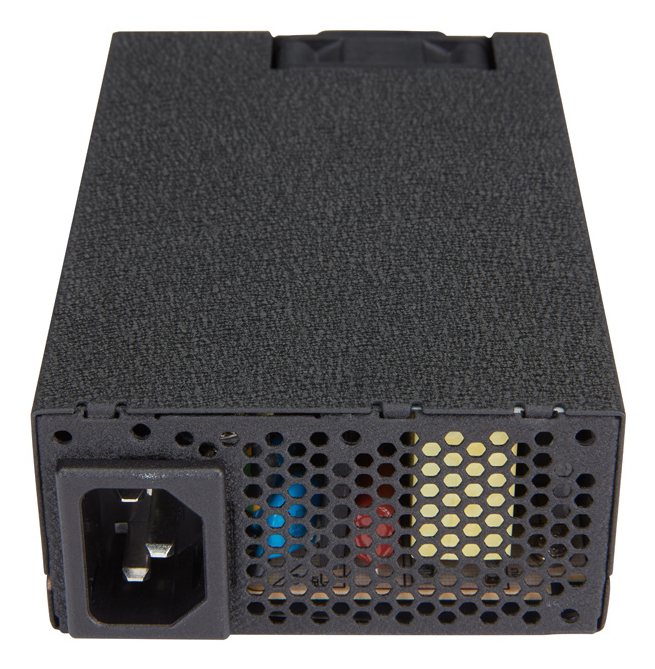

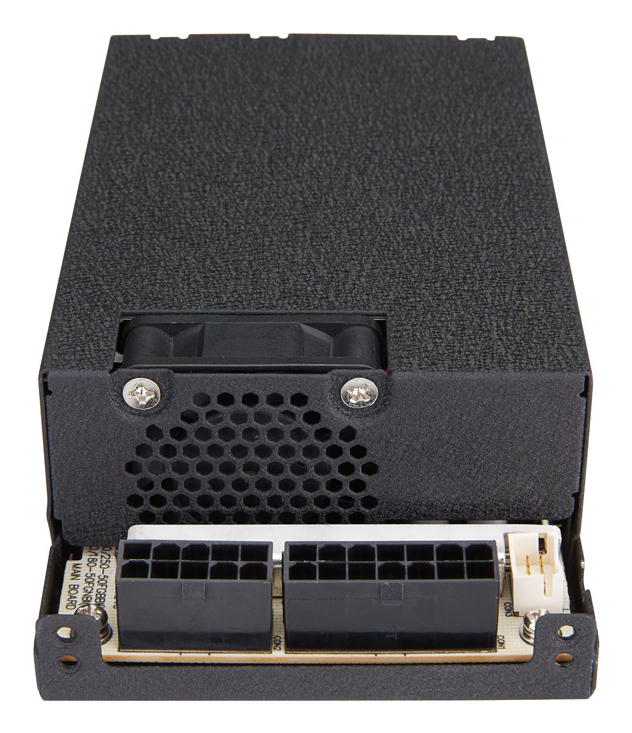

FlexGURU 300W
Model FlexGURU 300WPart no. PPA3004300EAN 4713224522529
33 specifications
- ColourBlack
- Total power300 W
- Motherboard power connector20+4 pin ATX
- PurposeServer
- Width40.5 mm
Overview
- Colour
- Black
- Total power
- 300 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- Server
- Width
- 40.5 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- FlexGURU 300W
- Part number
- PPA3004300
- EAN / UPC
- 4713224522529
- Also known as
- FSP FlexGURU 300W Power supply unit FLEX ATX ATX2.52 / Flex ATX1.23 Black
Specifications
33 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6-3 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 70 W |
| Combined power (+5V) | 70 W |
| Max output current (+3.3V) | 12 A |
| Max output current (+12V) | 25 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | Flex ATX |
| Bearing technology | Ball bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, Peripheral (Molex), SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 40.5 mm |
| Depth | 150 mm |
| Height | 81.5 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
