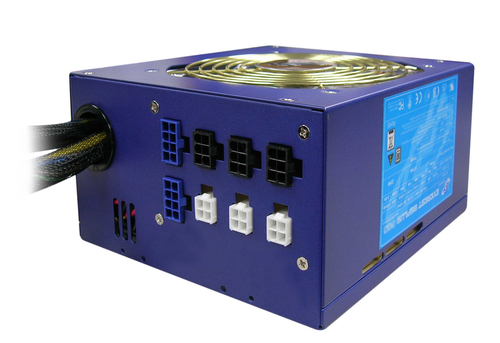

FSP Everest 85plus 800
Model Everest 85plus 800Part no. PPA8000504EAN 4711140483764
21 specifications
- Noise21 dB
- Weight3.25 kg
- ColourBlue
- Total power800 W
- Number of SATA power connectors9
- Power supply unit (PSU) form factorATX
Overview
- Noise
- 21 dB
- Weight
- 3.25 kg
- Colour
- Blue
- Total power
- 800 W
- Number of SATA power connectors
- 9
- Power supply unit (PSU) form factor
- ATX
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Everest 85plus 800
- Part number
- PPA8000504
- EAN / UPC
- 4711140483764, 4711140484167
- Also known as
- FSP Everest 85plus 800 power supply unit 800 W ATX Blue
Specifications
21 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 800 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Efficiency | 85% |
| Hold time | 16 ms |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 9 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Noise level | 21 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Blue |
| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL, FCC, CE, CB, VDE |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.25 kg |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Intel Core 2 Extreme & AMD Athlon 64 series |
| Dimensions (WxDxH) | 165 x 150 x 86 mm |
