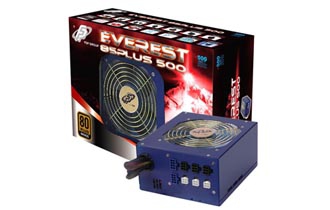

FSP Everest 85plus 500
Model Everest 85plus 500Part no. PPA5001802EAN 4711140483306
21 specifications
- Noise21 dB
- Weight2.91 kg
- ColourBlue
- Total power500 W
- Number of SATA power connectors6
- Power supply unit (PSU) form factorATX
Overview
- Noise
- 21 dB
- Weight
- 2.91 kg
- Colour
- Blue
- Total power
- 500 W
- Number of SATA power connectors
- 6
- Power supply unit (PSU) form factor
- ATX
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Everest 85plus 500
- Part number
- PPA5001802
- EAN / UPC
- 4711140483306, 4711140484136
- Also known as
- FSP Everest 85plus 500 power supply unit 500 W ATX Blue
Specifications
21 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Efficiency | 85% |
| Hold time | 16 ms |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6-pin) | 1 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Power supply unit (PSU) form factor | ATX |
| Noise level | 21 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Blue |
| Fan diameter | 12 cm |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL, FCC, CE, CB, VDE |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.91 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 165 x 150 x 86 mm |
| Minimum system requirements | Intel Core 2 Extreme & AMD Athlon 64 series |
