DAGGER PRO ATX3.0(PCIe5.0) 850W
Model DAGGER PRO ATX3.0(PCIe5.0) 850WPart no. PPA8503900EAN 4713224527968
44 specifications
- ColourBlack
- Total power850 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width100 mm
Overview
- Colour
- Black
- Total power
- 850 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 100 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- DAGGER PRO ATX3.0(PCIe5.0) 850W
- Part number
- PPA8503900
- EAN / UPC
- 4713224527968
- Also known as
- FSP DAGGER PRO 850W Power supply unit SFX SFX3.3 Black
Specifications
44 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 850 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12-6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |

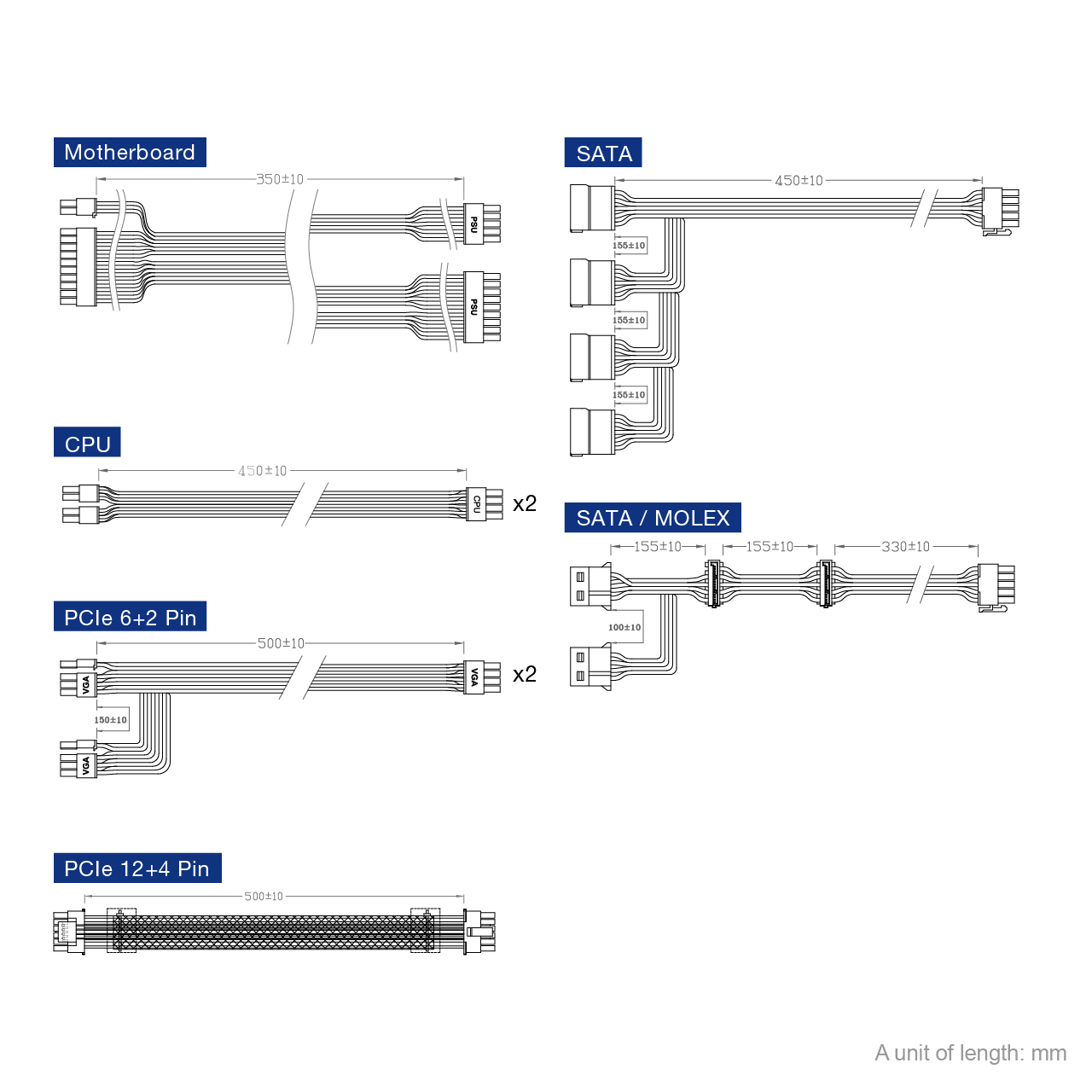

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 35 cm |
| Number of SATA power connectors | 6 |
| SATA power cable length | 450 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 500 mm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 45 cm |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 3.0 |
| Bearing technology | Ball bearing |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
Logistics data
| Specification | Value |
|---|---|
| Warranty period | 7 year(s) |
