DAGGER PRO 650W
Model DAGGER PRO 650WPart no. PPA6504801EAN 4713224522055
45 specifications
- Noise40 dB
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width100 mm
Overview
- Noise
- 40 dB
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 100 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- DAGGER PRO 650W
- Part number
- PPA6504801
- EAN / UPC
- 4713224522055
- Also known as
- FSP DAGGER PRO 650W Power supply unit SFX SFX3.3 Black
Specifications
45 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | 10 A |
| Maximum input current (@220V) | 5 A |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 648 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 85 cm |
| Floppy drive power connector | 1 |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| 80 PLUS certification | 80 PLUS Gold |
| Silent mode | Yes |
| Noise level | 40 dB |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 200000 h |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Packaging content
| Specification | Value |
|---|---|

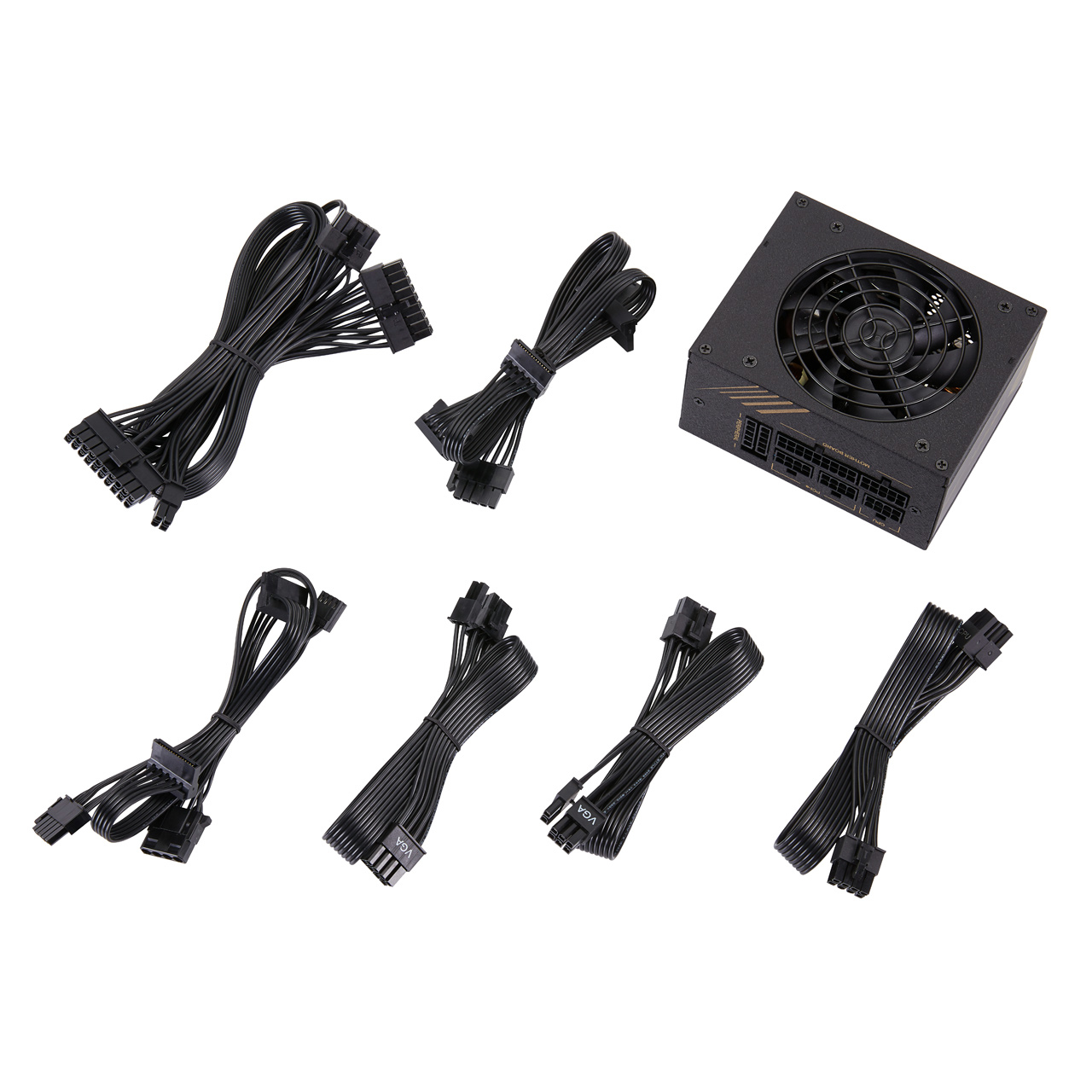

| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 125 mm |
| Height | 63.5 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
| Warranty period | 7 year(s) |
