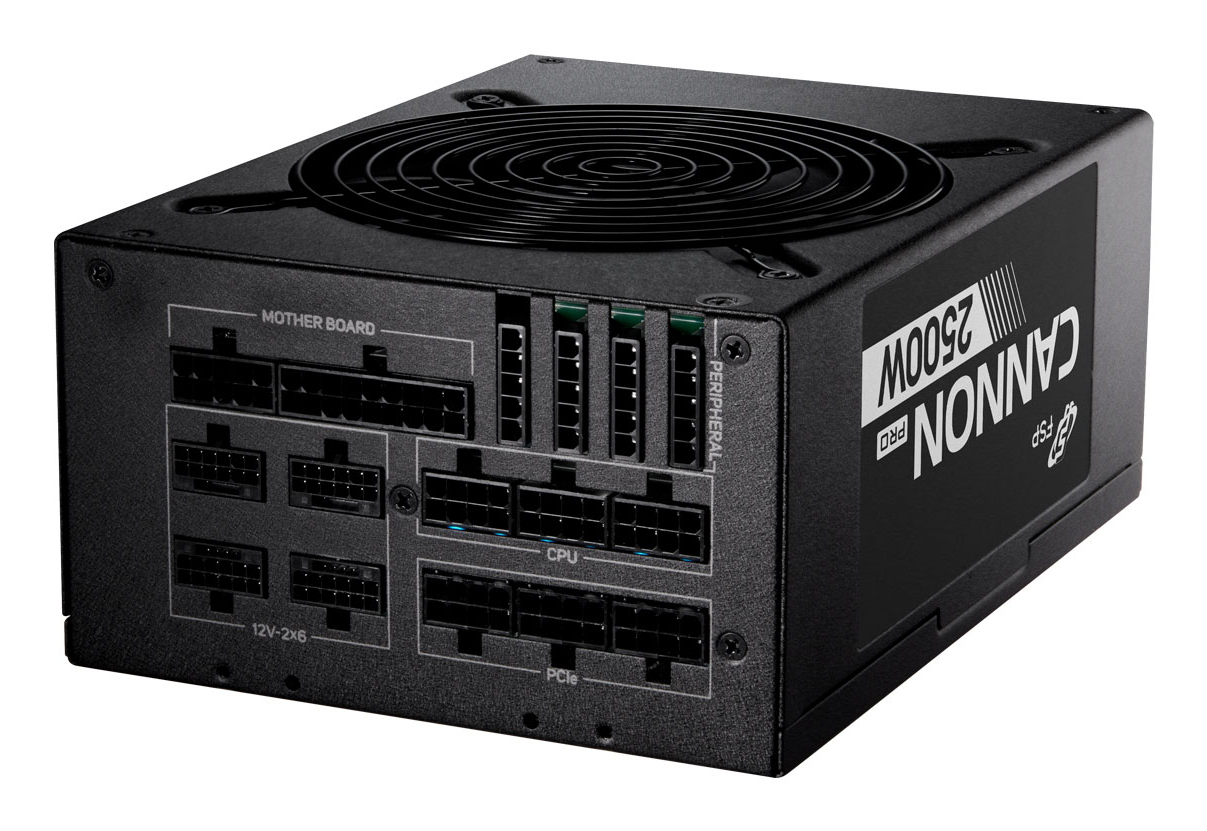

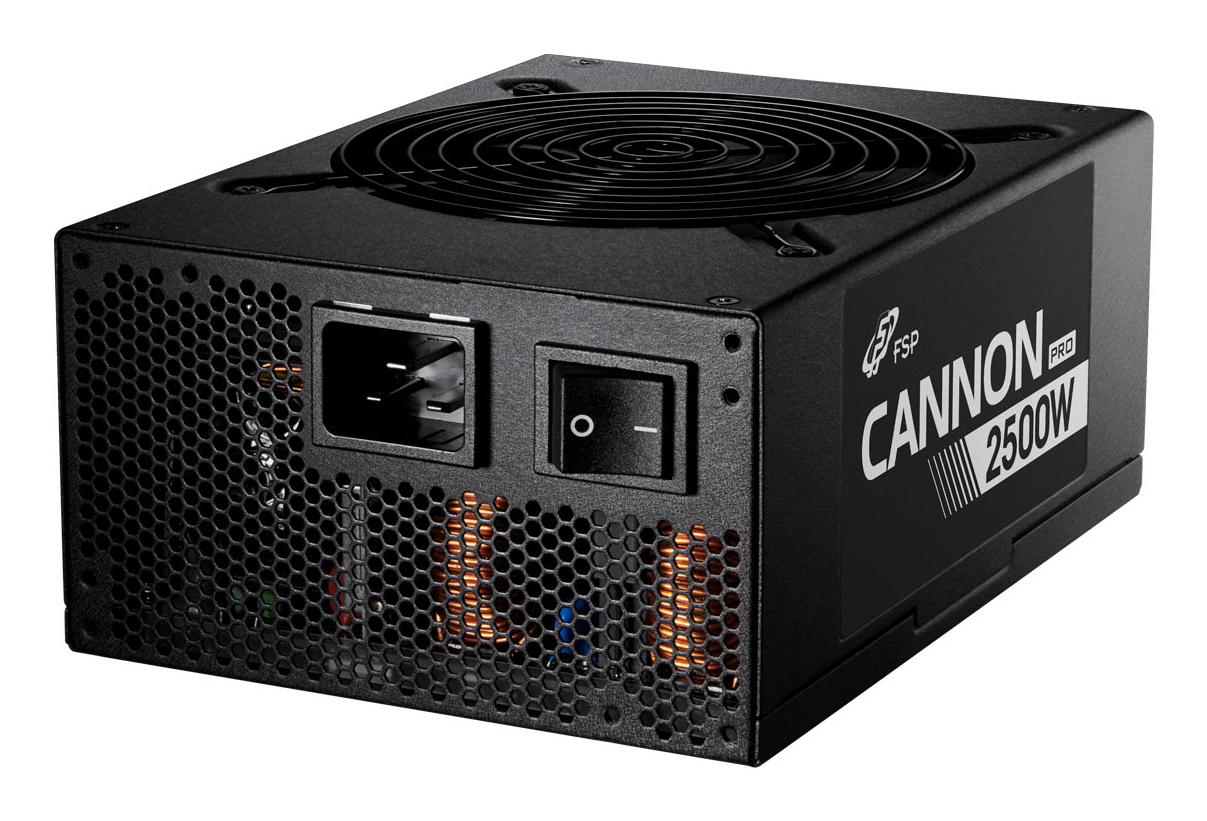

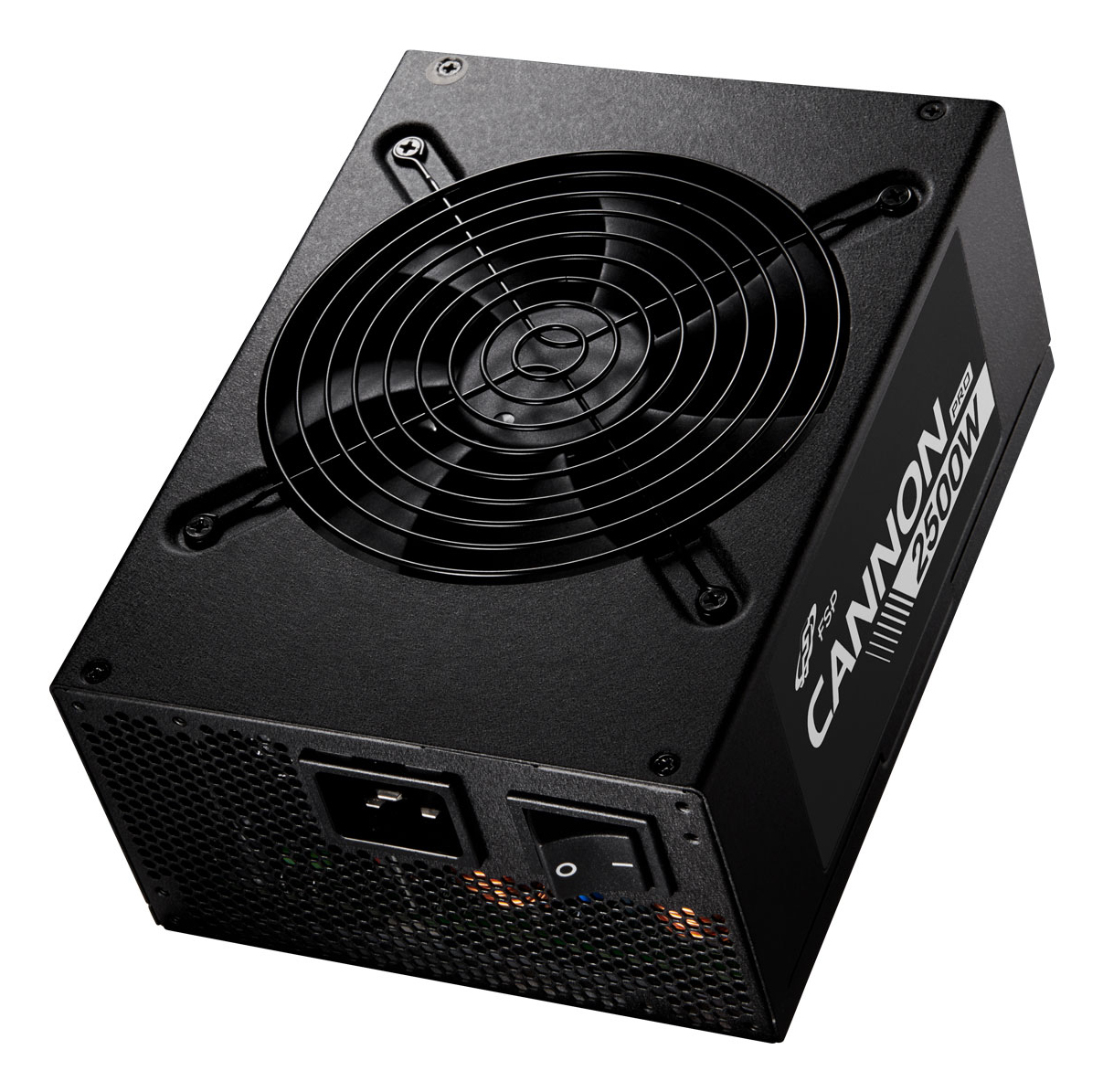

CANNON PRO(ATX3.1) 2500W
Model CANNON PRO(ATX3.1) 2500WPart no. PPA25A0102EAN 4711498480286
42 specifications
- ColourBlack
- Total power2500 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Colour
- Black
- Total power
- 2500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- CANNON PRO(ATX3.1) 2500W
- Part number
- PPA25A0102
- EAN / UPC
- 4711498480286, 4711498480446
- Also known as
- FSP CANNON PRO 2500W Power supply unit ATX ATX3.1 Black
Specifications
42 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 2500 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 - 12 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 2499.6 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 20 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 208.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 4 A |
| Efficiency | 94% |
| Power protection features | No load operation, Over current, Over power, Over voltage, Short circuit, Surge and inrush, Under temperature, Under voltage |

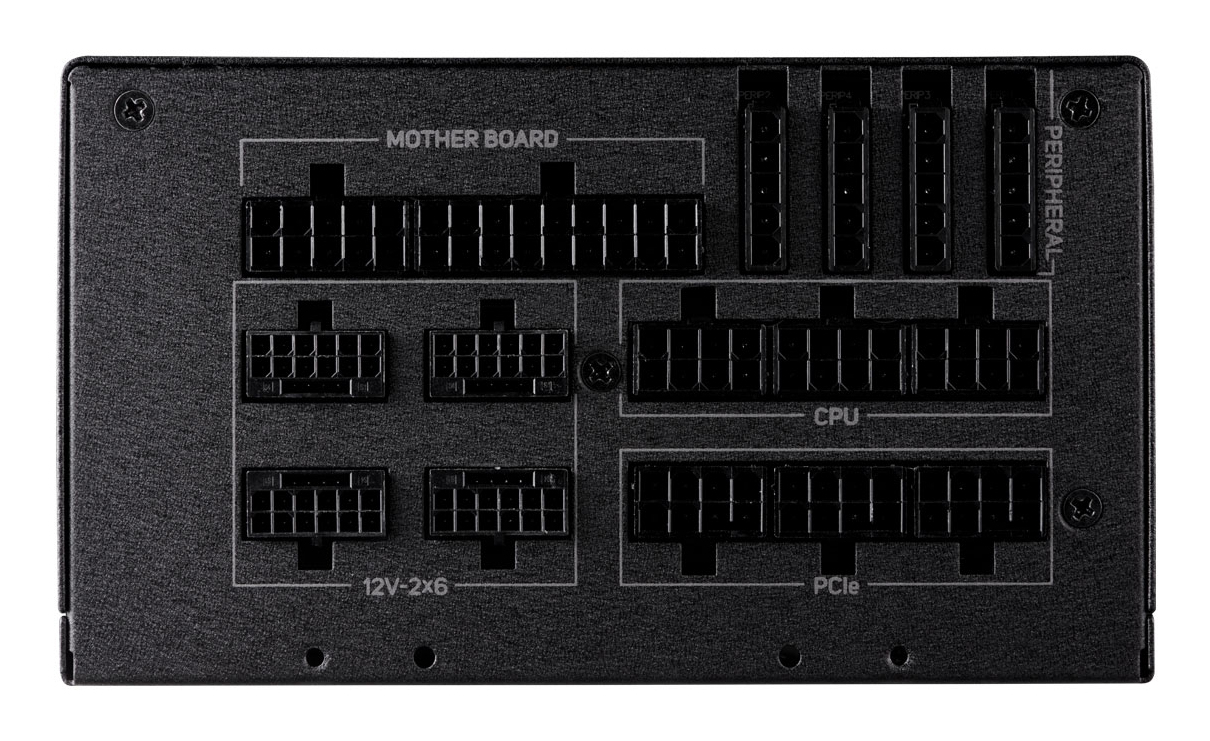

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| SATA power cable length | 965 mm |
| Number of SATA power cables | 2 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Peripheral (Molex) power cable length | 965 mm |
| PCI Express power connectors (6+2 pin) | 3 |
| PCI Express power connectors (8-pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Platinum |
| ATX version | 3.1 |
| Bearing technology | FDB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

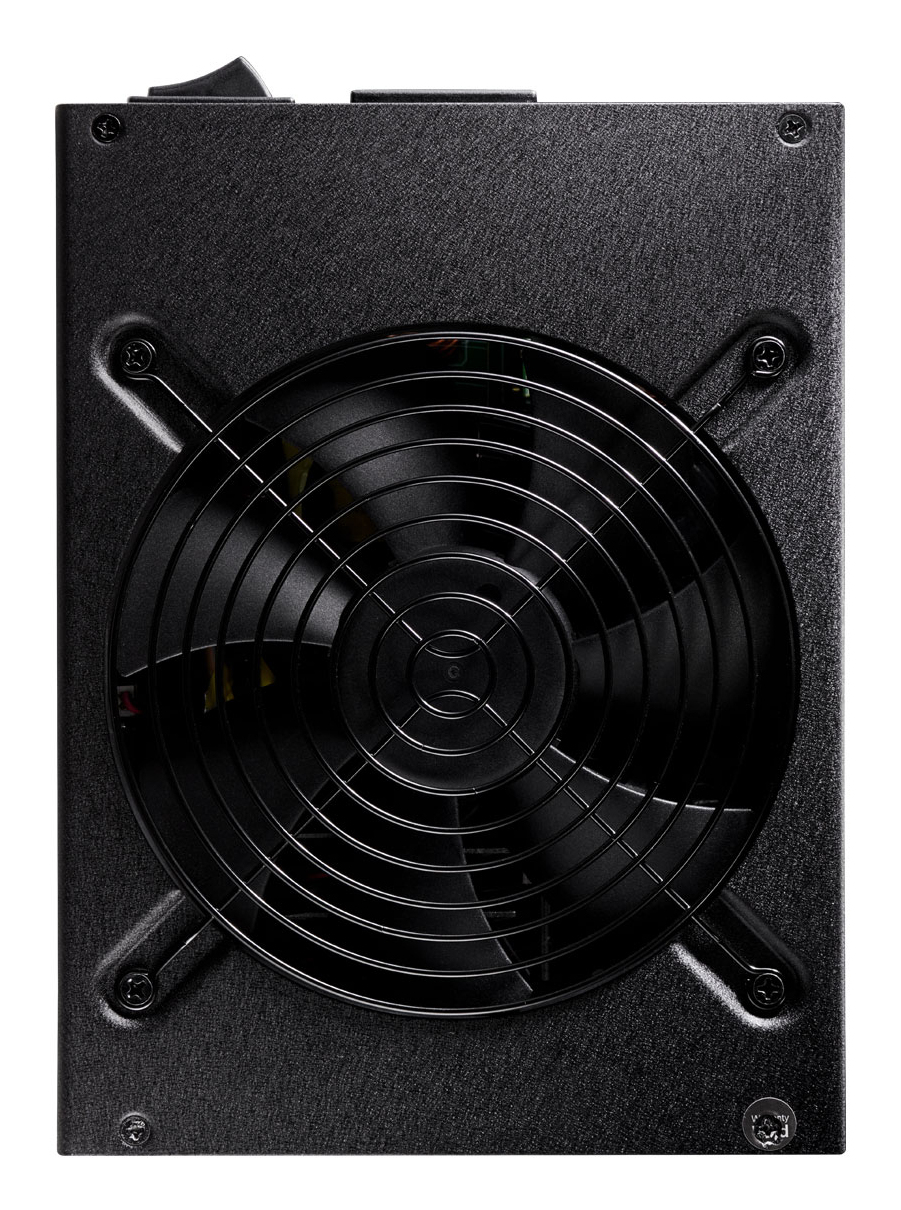

| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
