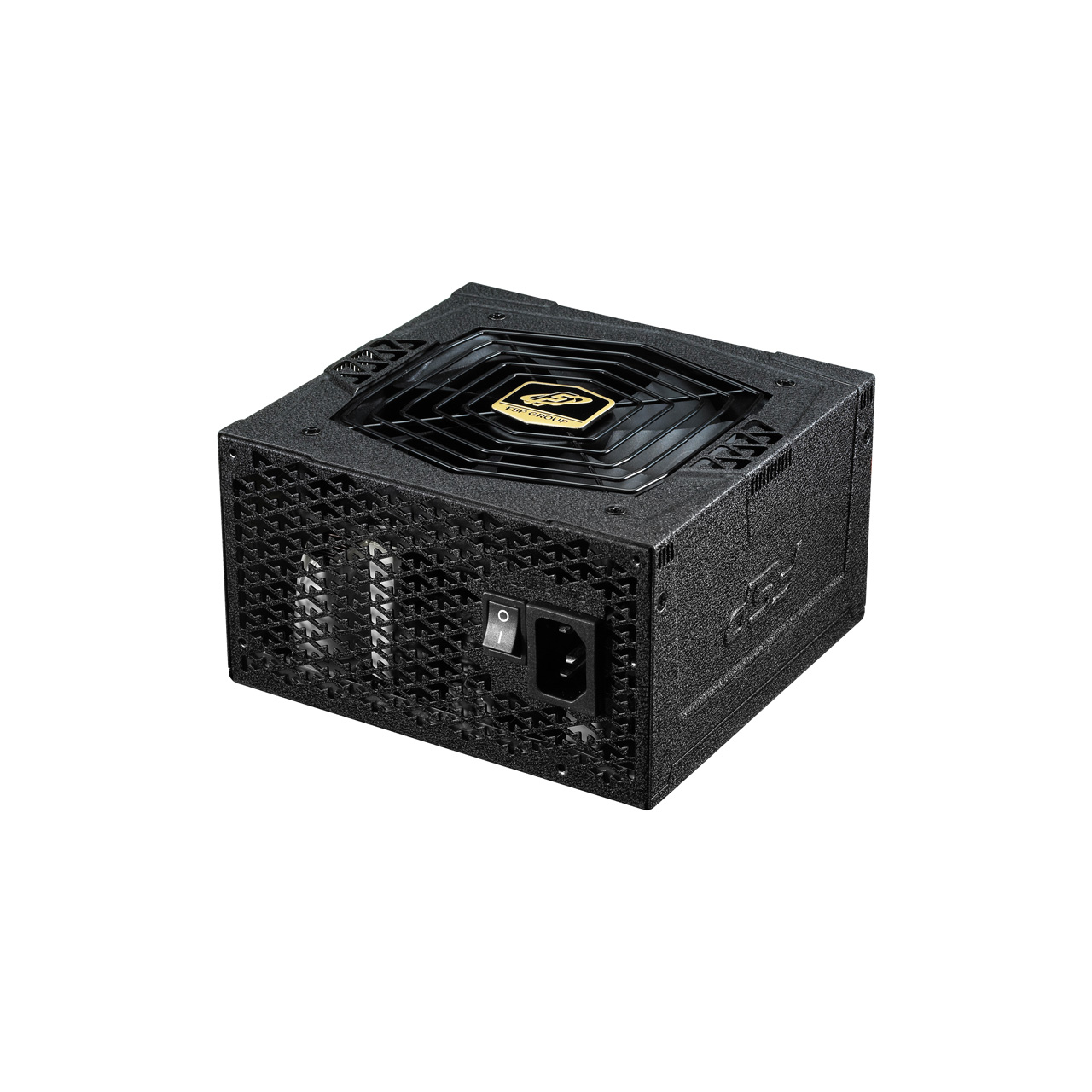

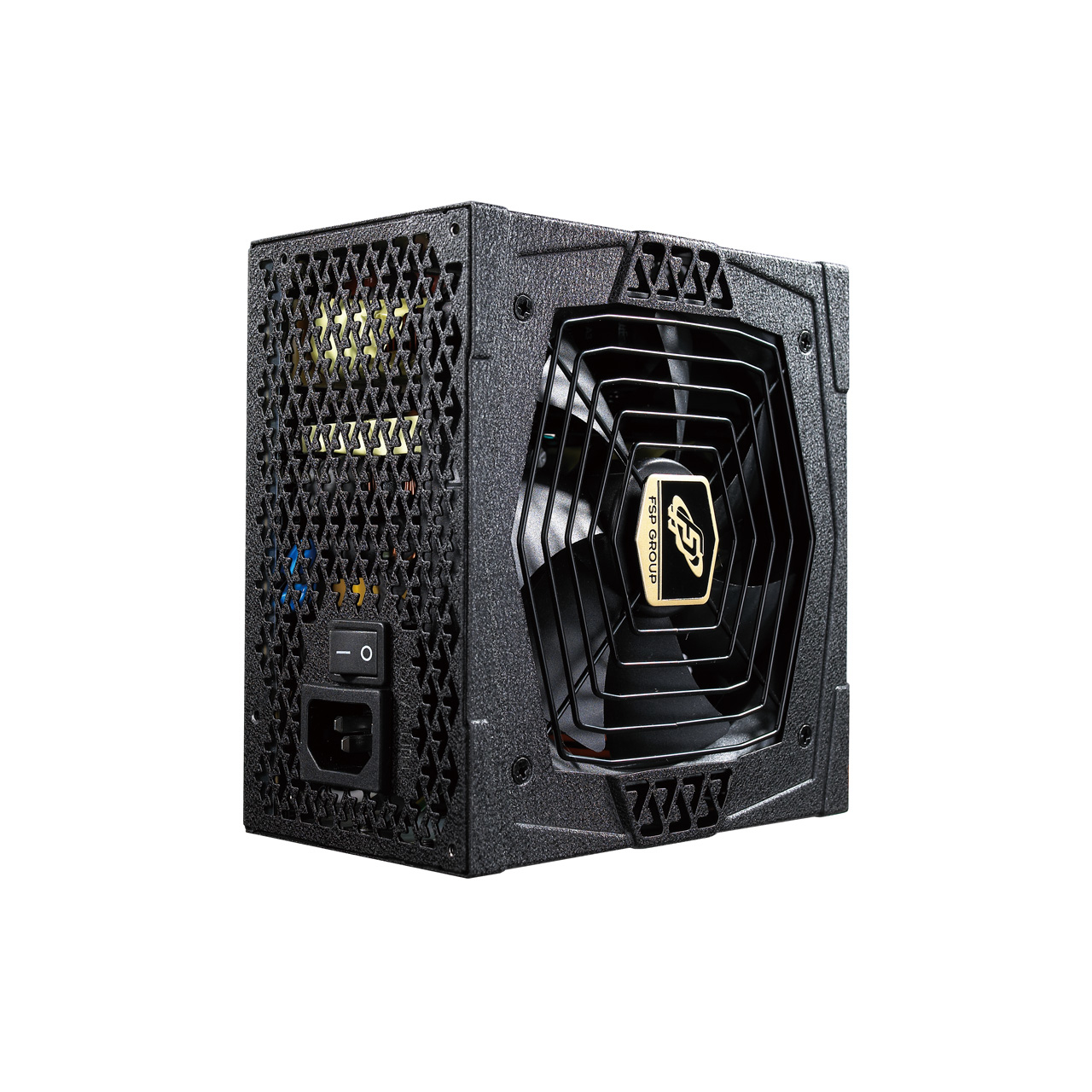

FSP AURUM S 550W

FSP AURUM S 550W

Model AURUM S 550WPart no. AS-550EAN 4711140484570

40 specifications
  • Noise21 dB
  • Weight2.07 kg
  • ColourBlack
  • Total power550 W
  • Motherboard power connector24-pin ATX
  • PurposePC
See all specifications

Overview

Noise
21 dB
Weight
2.07 kg
Colour
Black
Total power
550 W
Motherboard power connector
24-pin ATX
Purpose
PC
Brand
FSP
Model
AURUM S 550W
Part number
AS-550
EAN / UPC
4711140484570
Also known as
FSP AURUM S 550W power supply unit 24-pin ATX ATX Black

Specifications

40 specifications in 6 groups

Power

Total power550 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Input current4 A
Power factor0.9
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)125 W
Combined power (+12V)504 W
Combined power (+5V)125 W
Combined power (-12V)18.6 W
Combined power (+5Vsb)18.6 W
Max output current (+3.3V)24 A
Max output current (+12V)42 A
Max output current (+5V)22 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency90%

Ports & interfaces

Motherboard power connector24-pin ATX
Number of SATA power connectors5
Peripheral (Molex) power connectors (4-pin)3
EPS power connector (4+4 pin)Yes
PCI Express power connectors (6+2 pin)2
ATX Power connector (24-pin)Yes
Floppy drive power connector1
Cabling typeNon-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version2.31
EPS version2.92
Noise level21 dB

Design

Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)

Operational conditions

Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width140 mm
Depth150 mm
Height86 mm
Weight2.07 kg
