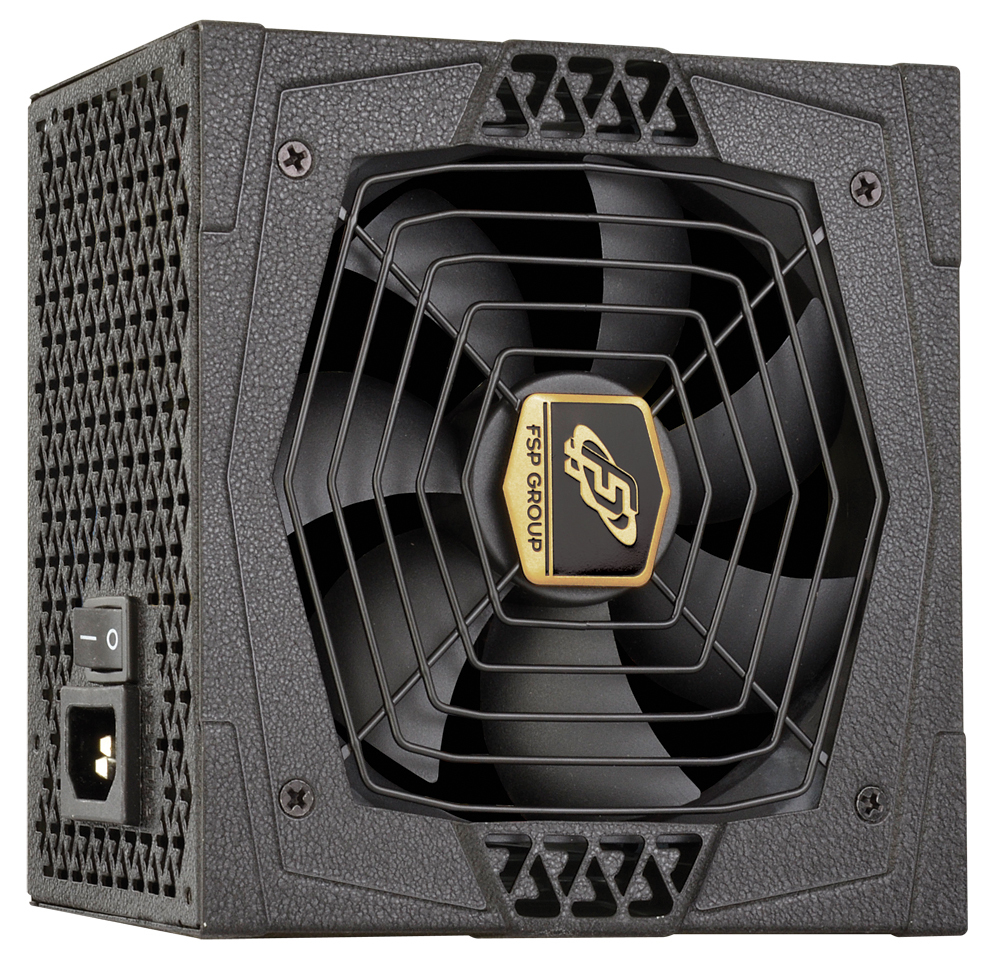

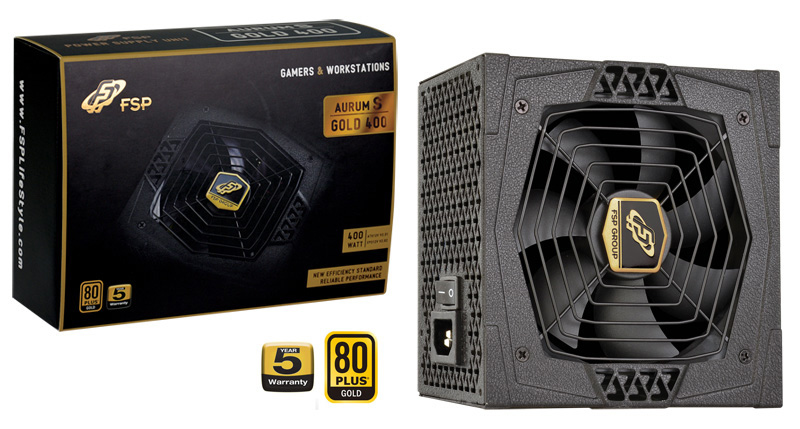

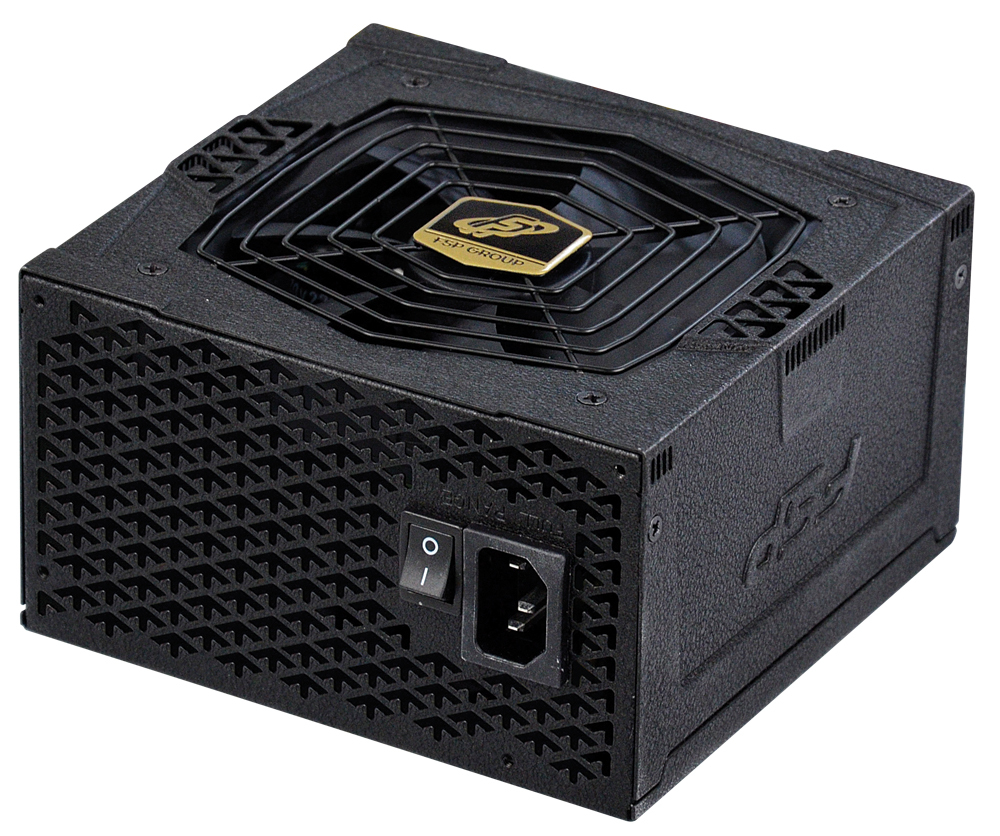

FSP Aurum S 400
Model Aurum S 400Part no. PPA4004202EAN 845685006158
45 specifications
- Noise21 dB
- Weight1.91 kg
- ColourBlack
- Total power400 W
- Motherboard power connector24-pin ATX
- PurposePC
Overview
- Noise
- 21 dB
- Weight
- 1.91 kg
- Colour
- Black
- Total power
- 400 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Aurum S 400
- Part numbers
- PPA4004202, PPA4004204
- EAN / UPC
- 845685006158, 4711140484549, 4711140485775
- Also known as
- FSP Aurum S 400 power supply unit 400 W 24-pin ATX ATX Black
Specifications
45 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 400 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 384 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 18.6 W |
| Combined power (+5Vsb) | 18.6 W |
| Max output current (+3.3V) | 24 A |
| Max output current (+12V) | 32 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 5 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Noise level | 21 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | CB, CE, FCC, UL/CUL, TUV, GOST, CCC, BSMI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.91 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 218 mm |
| Package depth | 298 mm |
| Package height | 96 mm |
