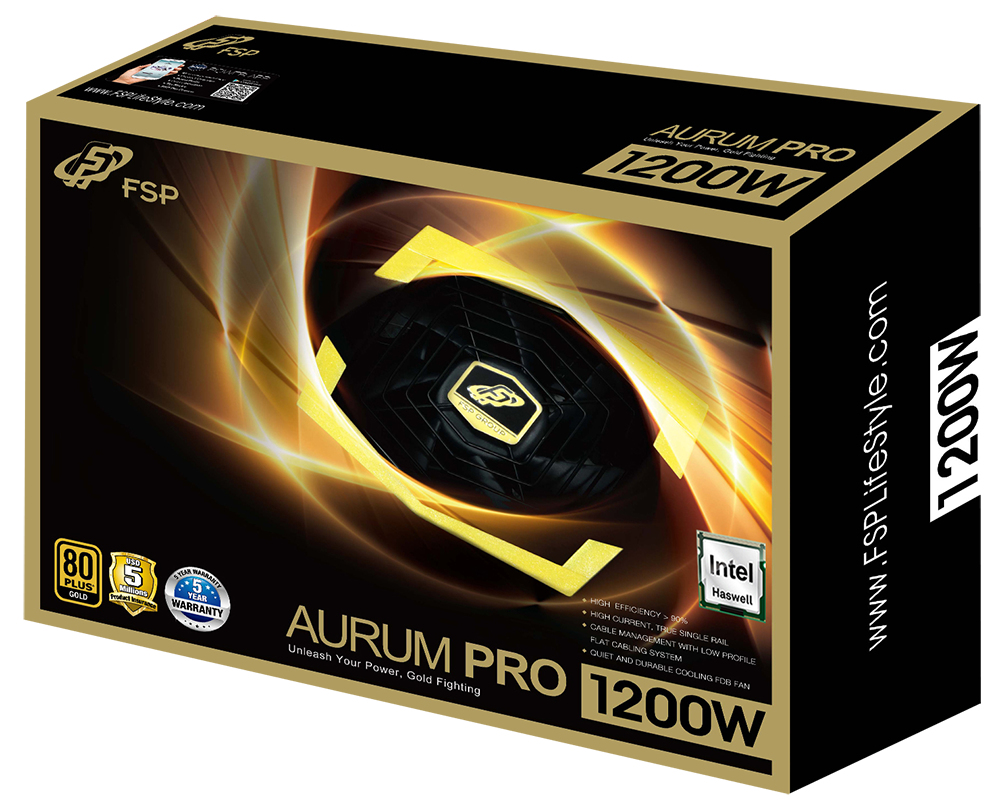

FSP Aurum Pro 1200
Model Aurum Pro 1200Part no. PPA12A0413
41 specifications
- Noise32 dB
- ColourBlack
- Total power1200 W
- Motherboard power connector24-pin ATX
- PurposePC
- Width150 mm
Overview
- Noise
- 32 dB
- Colour
- Black
- Total power
- 1200 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Aurum Pro 1200
- Part number
- PPA12A0413
- Also known as
- FSP Aurum Pro 1200 power supply unit 1200 W 24-pin ATX ATX Black
Specifications
41 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1200 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 9 A |
| Maximum input current (@110V) | +12V,+3.3V,+5V,+5Vsb,-12V |
| Power factor | 99 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 160 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 160 W |
| Combined power (-12V) | 24.6 W |
| Combined power (+5Vsb) | 24.6 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.8 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 6 |
| PCI Express power connectors (6+2 pin) | 8 |
| CPU power connector (4+4 pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.31 |
| EPS version | 2.92 |
| Noise level | 32 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL, FCC, CE, TUV, GOST, BSMI, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
