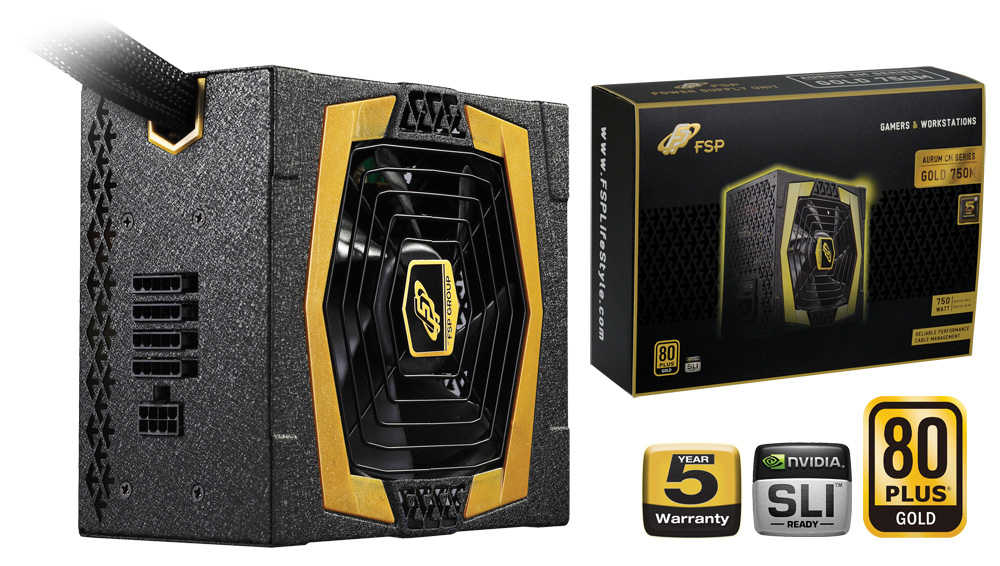

FSP Aurum CM 750
Model Aurum CM 750Part no. PPA7501004EAN 5705585181650
47 specifications
- Noise21 dB
- Weight2.62 kg
- ColourBlack
- Total power750 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Noise
- 21 dB
- Weight
- 2.62 kg
- Colour
- Black
- Total power
- 750 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- Aurum CM 750
- Part numbers
- PPA7501004, PPA7501001
- EAN / UPC
- 5705585181650, 4711140481746, 4711140486291, 845685001405
- Also known as
- FSP Aurum CM 750 power supply unit 750 W 20+4 pin ATX ATX Black
Specifications
47 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 750 W |
| AC input voltage | 90 - 264 V |
| AC input frequency | 47 - 63 Hz |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 160 W |
| Combined power (+5V) | 160 W |
| Combined power (-12V) | 23.5 W |
| Combined power (+5Vsb) | 23.5 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V1) | 18 A |
| Max output current (+12V2) | 18 A |
| Max output current (+12V3) | 18 A |
| Max output current (+12V4) | 18 A |
| Max output current (+5V) | 30 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 5 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| CPU power connectors (8-pin) | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| ATX version | 2.3 |
| EPS version | 2.92 |
| Noise level | 21 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
Safety regulation & standards
| Specification | Value |
|---|---|
| Safety | cUL, FCC, CE, TUV, GOST, BSMI, CCC |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.62 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 245 mm |
| Package depth | 327 mm |
| Package height | 96 mm |
