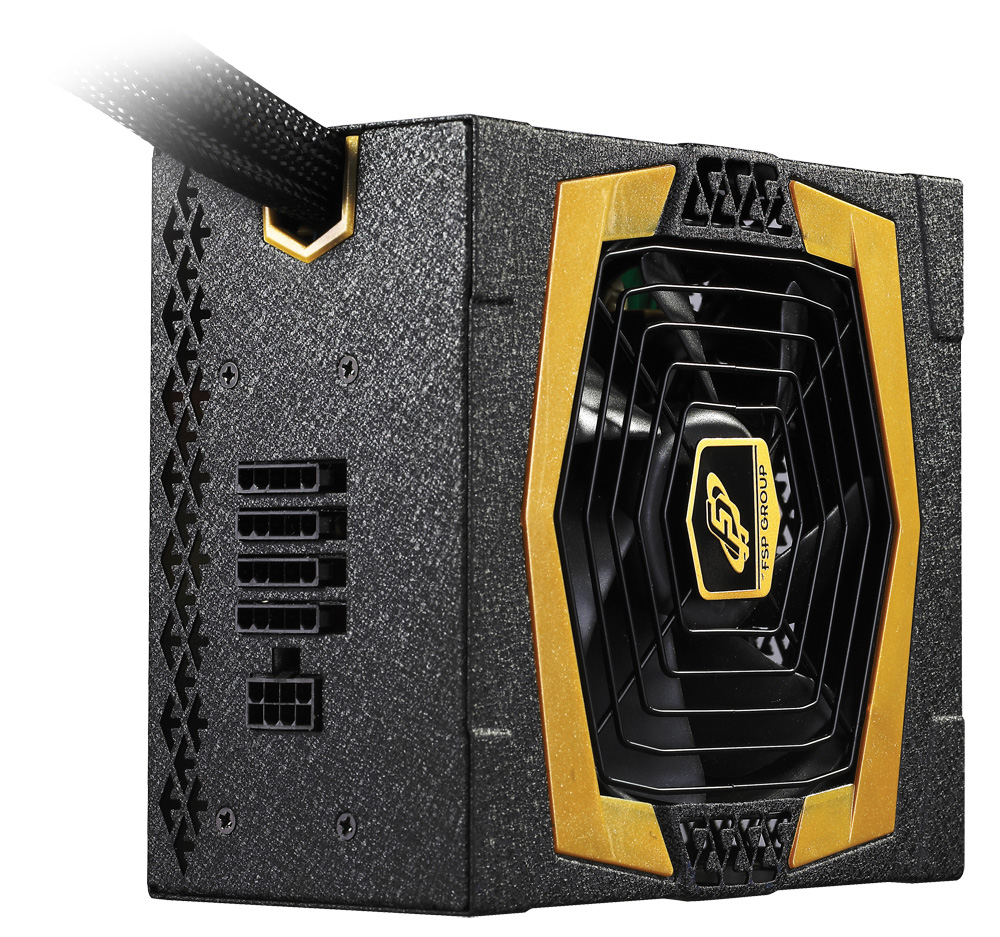

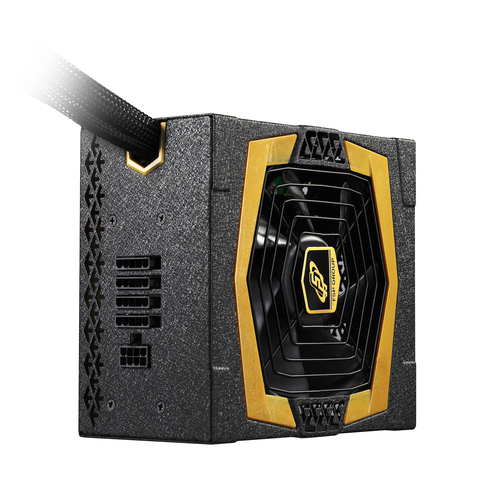

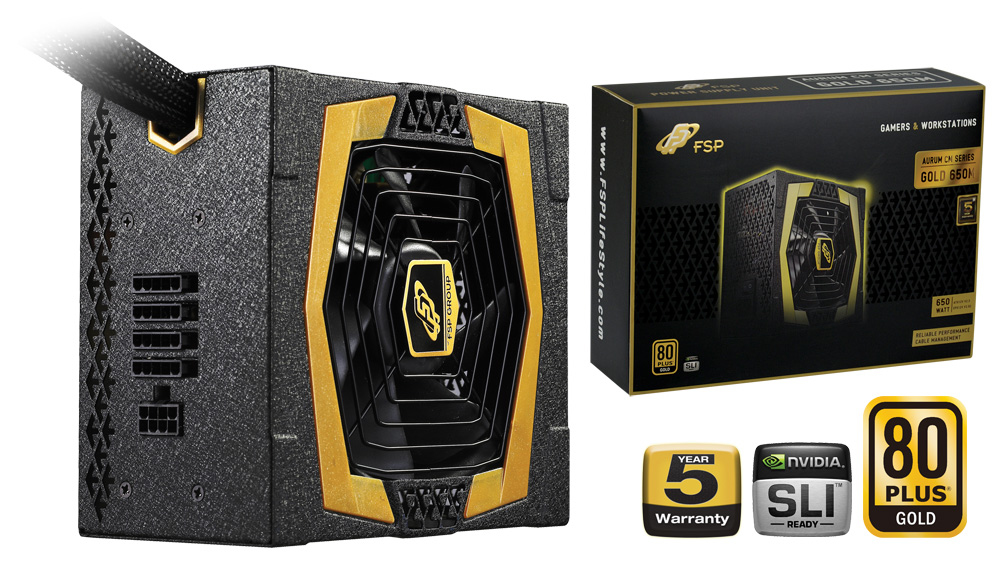

FSP Aurum CM 650

FSP Aurum CM 650

Model Aurum CM 650Part no. PPA6501401EAN 4711140485829

48 specifications
  • Noise21 dB
  • Weight2.54 kg
  • ColourBlack
  • Total power650 W
  • Motherboard power connector20+4 pin ATX
  • PurposePC
See all specifications

Overview

Noise
21 dB
Weight
2.54 kg
Colour
Black
Total power
650 W
Motherboard power connector
20+4 pin ATX
Purpose
PC
Brand
FSP
Model
Aurum CM 650
Part numbers
PPA6501401, PPA6501404, PPA6501412, PPA7501013
EAN / UPC
4711140485829, 4711140481739
Also known as
FSP Aurum CM 650 power supply unit 650 W 20+4 pin ATX ATX Black

Specifications

48 specifications in 7 groups

Power

Total power650 W
AC input voltage90 - 264 V
AC input frequency47 - 63 Hz
Maximum input current (@110V)+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)150 W
Combined power (+5V)150 W
Combined power (-12V)23.5 W
Combined power (+5Vsb)23.5 W
Max output current (+3.3V)26 A
Max output current (+12V1)18 A
Max output current (+12V2)18 A
Max output current (+12V3)18 A
Max output current (+12V4)18 A
Max output current (+5V)26 A
Max output current (-12V)0.5 A
Max output current (+5Vsb)3.5 A
Efficiency90%
Power protection featuresOver current, Over power, Over voltage, Overload, Short circuit, Under voltage

Ports & interfaces

Motherboard power connector20+4 pin ATX
Number of SATA power connectors8
Peripheral (Molex) power connectors (4-pin)5
EPS power connector (8-pin)Yes
PCI Express power connectors (6+2 pin)4
CPU power connector (4+4 pin)Yes
ATX power connector (20+4 pin)Yes
Floppy drive power connector1
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Gold
ATX version2.3
EPS version2.92
Noise level21 dB

Design

Product colourBlack
Cooling typeActive
Fan diameter12 cm
Number of fans1 fan(s)
Fan locationTop
On/off switchYes

Safety regulation & standards

SafetycUL, FCC, CE, TUV, GOST, BSMI, CCC

Weight & dimensions

Width160 mm
Depth150 mm
Height86 mm
Weight2.54 kg

Packaging data

Package width245 mm
Package depth327 mm
Package height96 mm
