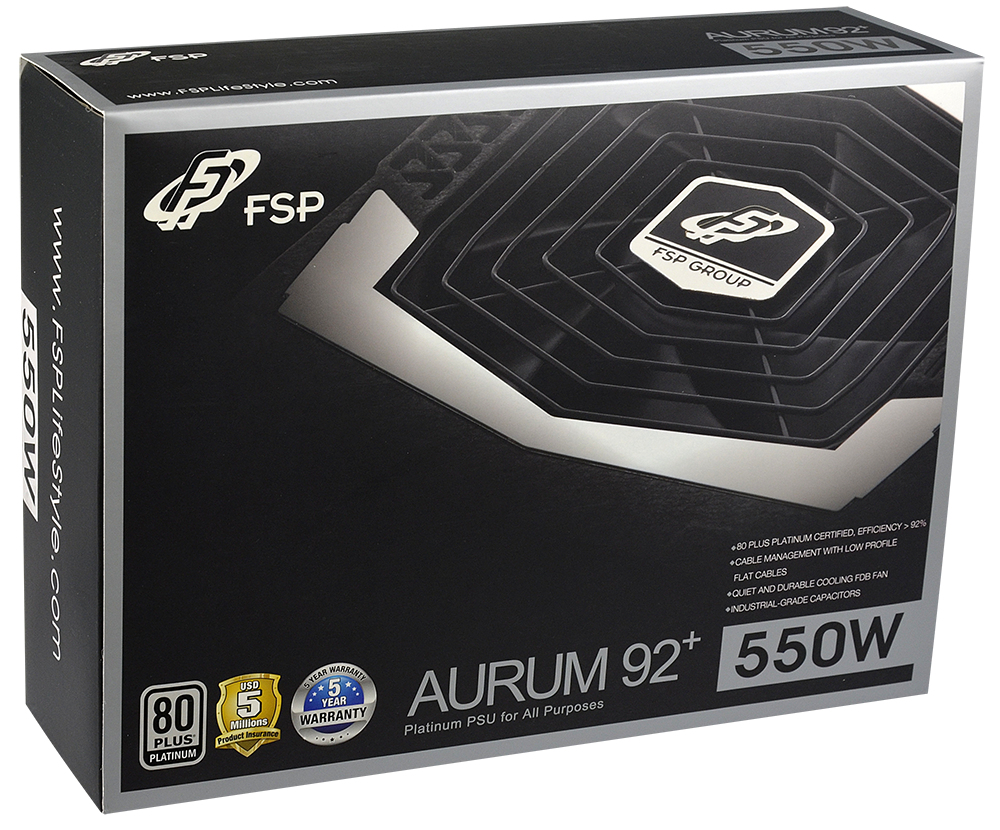

FSP AURUM 92+ 550

FSP AURUM 92+ 550

Model AURUM 92+ 550Part no. PPA5502507EAN 4711140488936

43 specifications
  • Noise21 dB
  • ColourBlack
  • Total power550 W
  • Motherboard power connector24-pin ATX
  • PurposePC
  • Width160 mm
See all specifications

Overview

Noise
21 dB
Colour
Black
Total power
550 W
Motherboard power connector
24-pin ATX
Purpose
PC
Width
160 mm
Brand
FSP
Model
AURUM 92+ 550
Part number
PPA5502507
EAN / UPC
4711140488936
Also known as
FSP AURUM 92+ 550 power supply unit 550 W 24-pin ATX ATX Black

Specifications

43 specifications in 7 groups

Power

Total power550 W
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Maximum input current (@110V)+12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)95 W
Combined power (+12V)516 W
Combined power (+5V)95 W
Combined power (-12V)18.6 W
Combined power (+5Vsb)18.6 W
Max output current (+3.3V)16 A
Max output current (+12V1)18 A
Max output current (+12V2)18 A
Max output current (+12V3)18 A
Max output current (+12V4)18 A
Max output current (+5V)16 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
Efficiency92%
Power protection featuresOver current, Over voltage, Short circuit

Ports & interfaces

Motherboard power connector24-pin ATX
Number of SATA power connectors7
Peripheral (Molex) power connectors (4-pin)4
PCI Express power connectors (6+2 pin)2
CPU power connector (4+4 pin)Yes
Floppy drive power connector1
Cabling typeSemi-Modular

Performance

PurposePC
Power supply unit (PSU) form factorATX
80 PLUS certification80 PLUS Platinum
ATX version2.31
EPS version2.92
Noise level21 dB

Design

Product colourBlack
Fan diameter12 cm
Number of fans1 fan(s)

Certificates

CertificationcUL, FCC, CE, TUV, CB

Weight & dimensions

Width160 mm
Depth150 mm
Height86 mm

Packaging data

Package width327 mm
Package depth245 mm
Package height96 mm
