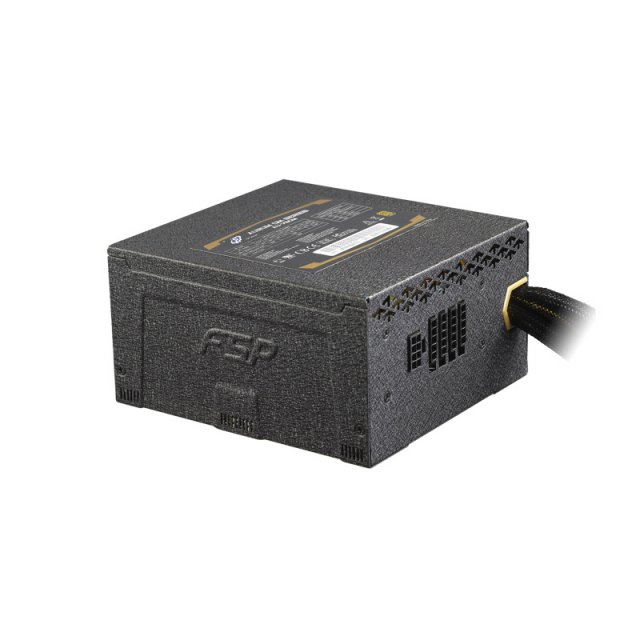

FSP AU-550M power supply unit
550 W 20+4 pin ATX ATX Black
Model AU-550MEAN 845685001382
24 specifications
- Noise21 dB
- ColourBlack
- Total power550 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width150 mm
Overview
- Noise
- 21 dB
- Colour
- Black
- Total power
- 550 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 150 mm
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- AU-550M
- Part number
- AU-550M
- EAN / UPC
- 845685001382
- Also known as
- FSP AU-550M power supply unit 550 W 20+4 pin ATX ATX Black
Specifications
24 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 550 W |
| AC input voltage | 90 - 264 V |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over current, Over voltage, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 7 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Semi-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Noise level | 21 dB |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 160 mm |
| Height | 86 mm |
