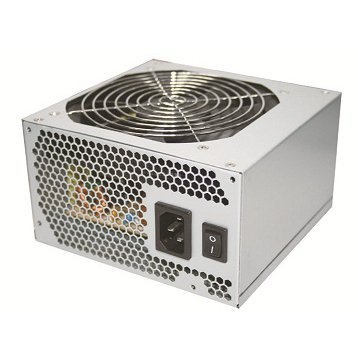

FSP 650-80EPN 80 PLUS
Model 650-80EPN 80 PLUSPart no. 9PA6501801
25 specifications
- ColourGrey
- Total power650 W
- Motherboard power connector24-pin ATX
- PurposePC
- Operating temperature (T-T)0 - 50 °C
Overview
- Colour
- Grey
- Total power
- 650 W
- Motherboard power connector
- 24-pin ATX
- Purpose
- PC
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- FSP
- Category
- Power Supply Unit
- Model
- 650-80EPN 80 PLUS
- Part number
- 9PA6501801
- Also known as
- FSP 650-80EPN 80 PLUS power supply unit 650 W 24-pin ATX ATX Grey
Specifications
25 specifications in 5 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 115 - 230 V |
| Maximum input current (@110V) | +12V1,+12V2,+12V3,+12V4,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Power protection features | Over voltage, Overload, Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| PCI Express power connectors (6-pin) | 2 |
| PCI Express power connectors (8-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Side |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
