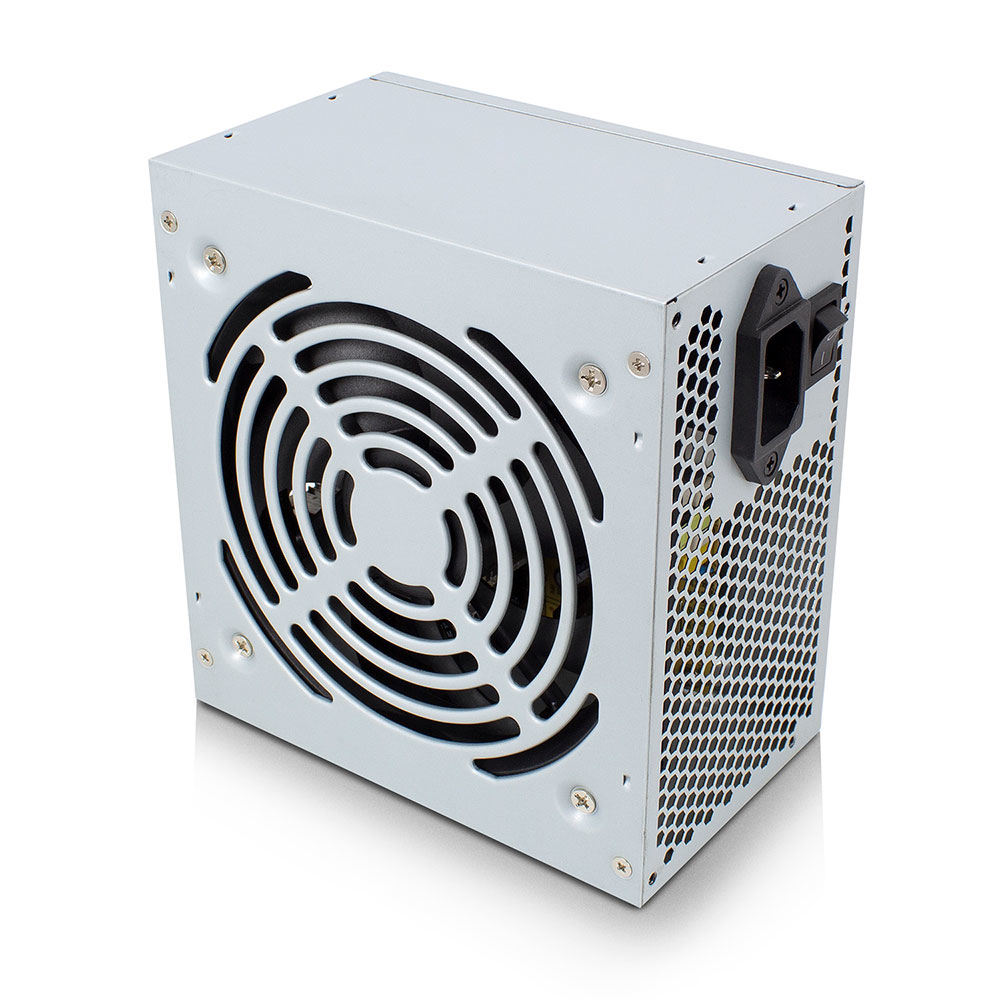

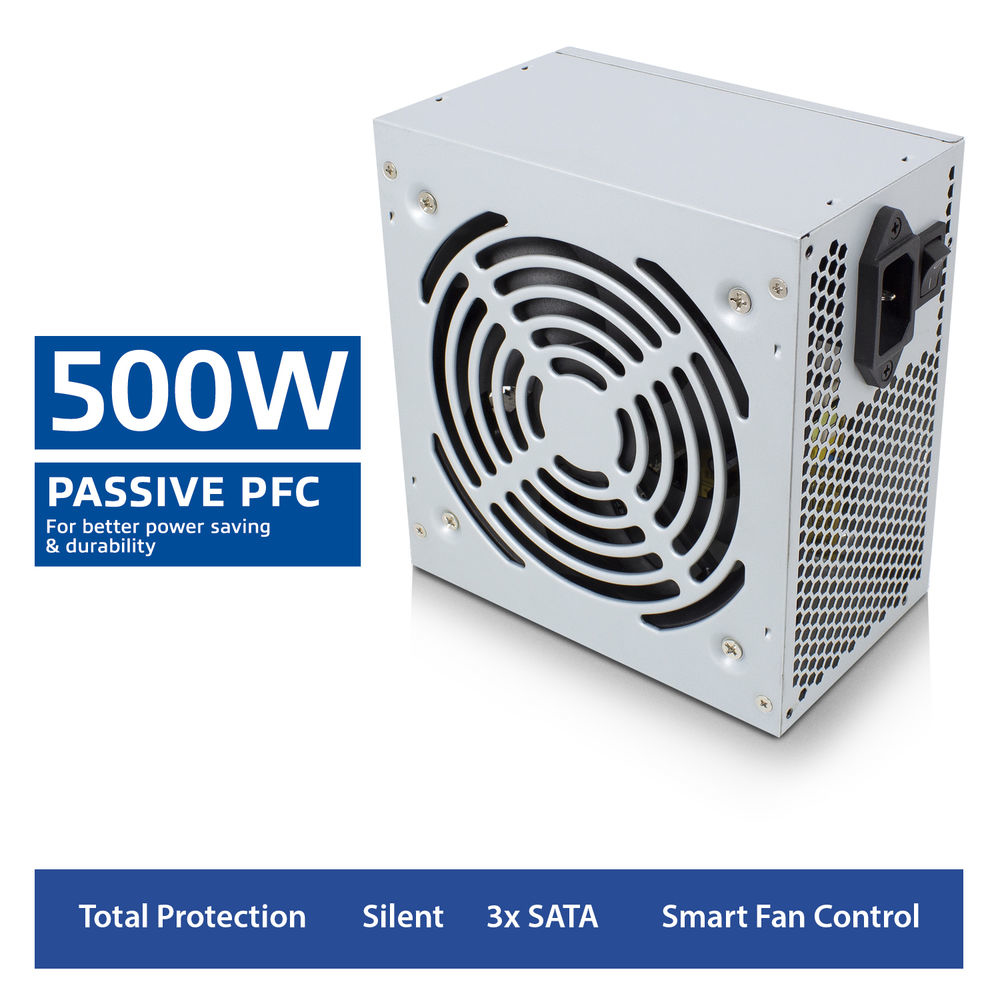

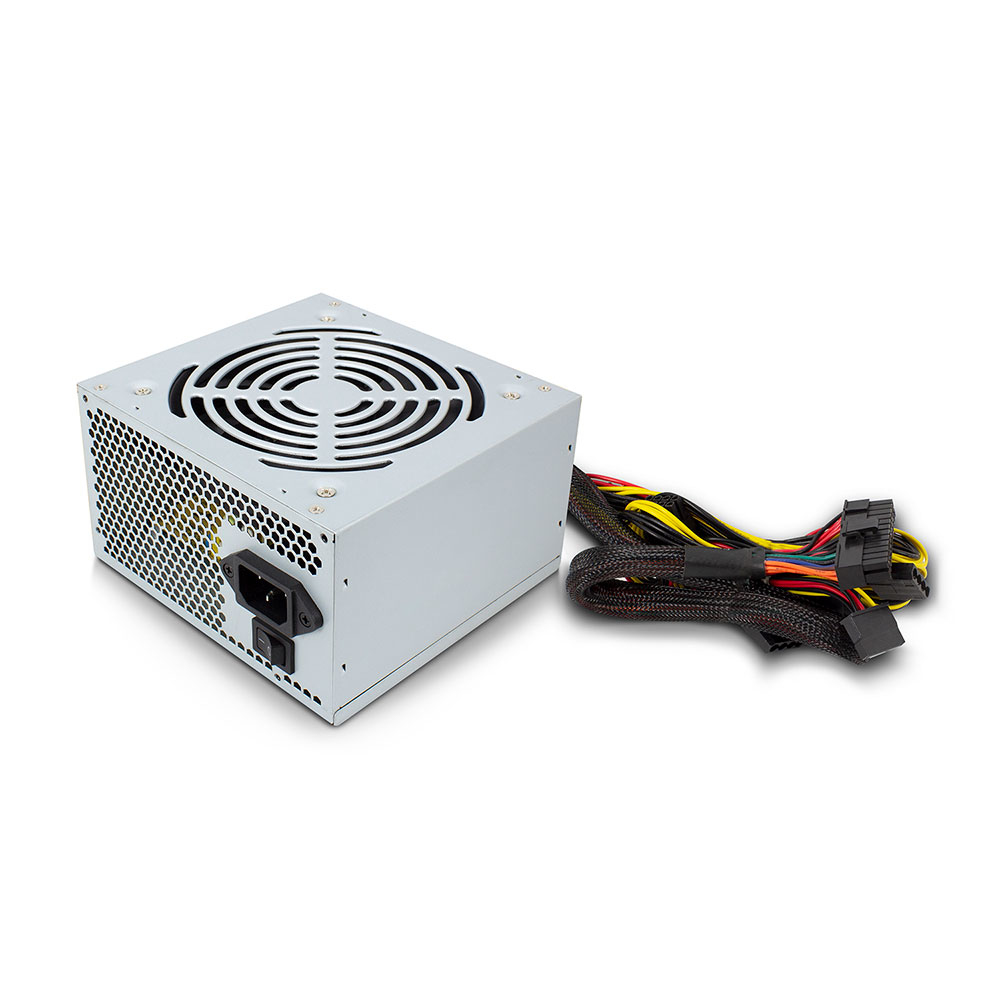

EW3907 power supply unit
500 W 20+4 pin ATX ATX Grey
Model EW3907EAN 8054392614590
46 specifications
- Weight947 g
- ColourGrey
- Total power500 W
- Motherboard power connector20+4 pin ATX
- PurposePC/Server
- Operating temperature (T-T)0 - 50 °C
Overview
- Weight
- 947 g
- Colour
- Grey
- Total power
- 500 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC/Server
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Ewent
- Category
- Power Supply Unit
- Model
- EW3907
- Part number
- EW3907
- EAN / UPC
- 8054392614590
- Also known as
- Ewent EW3907 power supply unit 500 W 20+4 pin ATX ATX Grey
Specifications
46 specifications in 8 groups
Power
| Specification | Value |
|---|---|
| Total power | 500 W |
| AC input voltage | 160 - 270 V |
| Power Factor Correction (PFC) type | Active |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 11 A |
| Max output current (+12V2) | 11 A |
| Max output current (+5V) | 28 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2 A |
| Power protection features | Over current, Over voltage, Overheating, Overload, Short circuit |

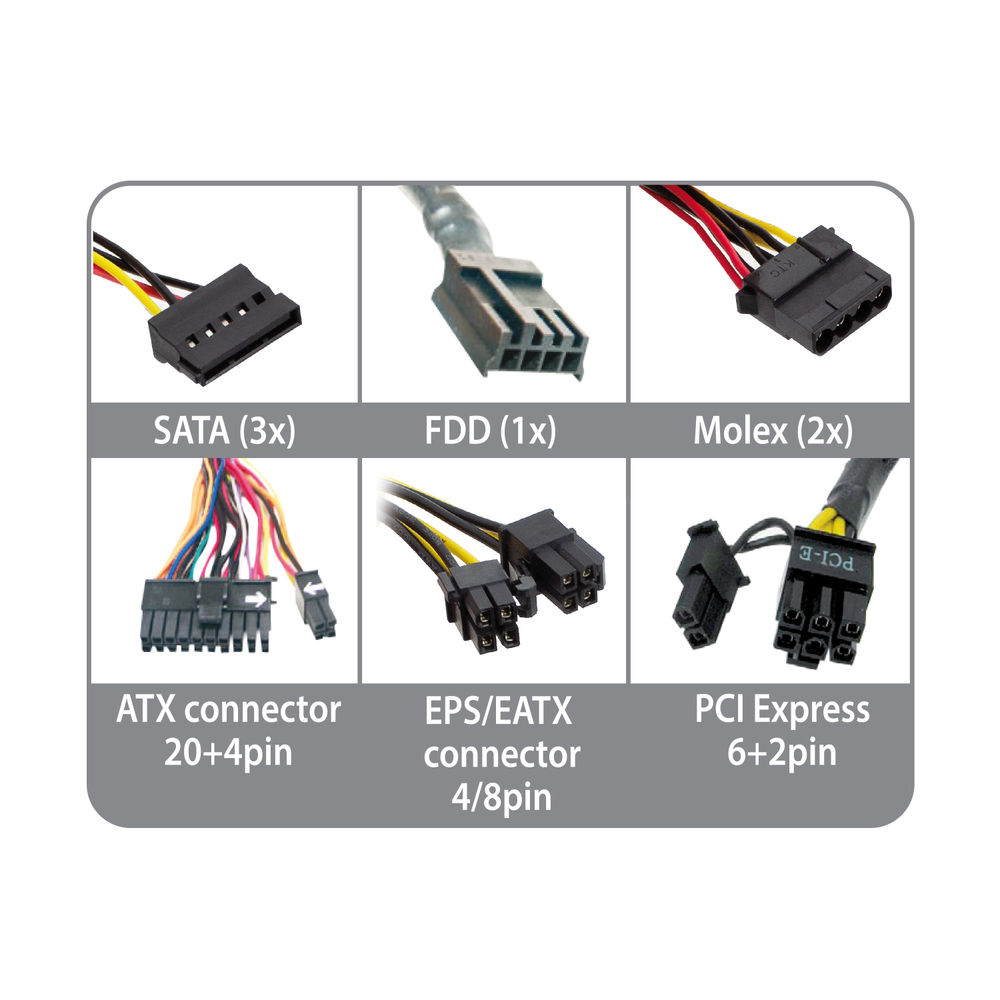

Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 40 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 400 mm |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Peripheral (Molex) power cable length | 300 mm |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 1 |
| PCI Express power cable length | 30 cm |
| ATX power connector (20+4 pin) | Yes |
| Floppy disk drive cable length | 30 cm |
| Floppy disk drive connector | Yes |
| Floppy drive power connector | 1 |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC/Server |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | No |
| ATX version | 3.1 |
| EPS version | 2.92 |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
| Cooling type | Active |
| Fan diameter | 12 cm |
| On/off switch | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 947 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 230 mm |
| Package depth | 95 mm |
| Package height | 166 mm |
| Package weight | 1.47 kg |
| Package type | Box |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
