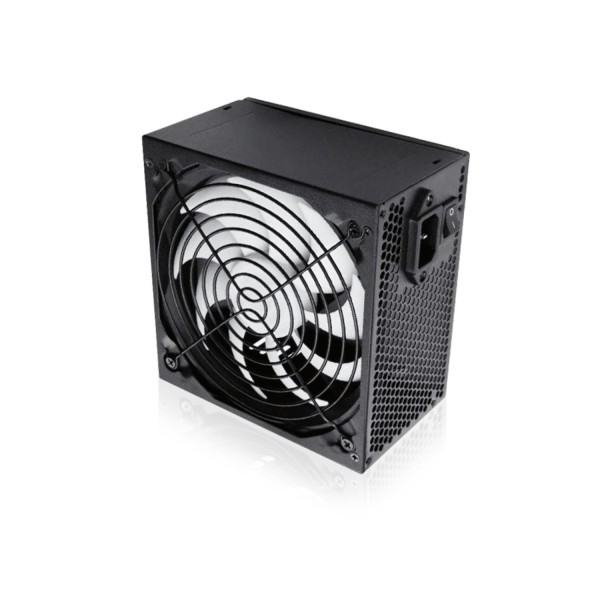

Ewent EW3905 power supply unit
600 W 20+4 pin ATX ATX Black
Model EW3905EAN 8056045878229
20 specifications
- ColourBlack
- Total power600 W
- Motherboard power connector20+4 pin ATX
- PurposePC
Overview
- Colour
- Black
- Total power
- 600 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Brand
- Ewent
- Category
- Power Supply Unit
- Model
- EW3905
- Part number
- EW3905
- EAN / UPC
- 8056045878229
- Also known as
- Ewent EW3905 power supply unit 600 W 20+4 pin ATX ATX Black
Specifications
20 specifications in 4 groups
Power
| Specification | Value |
|---|---|
| Total power | 600 W |
| AC input voltage | 230 V |
| Power Factor Correction (PFC) type | Passive |
| Combined power (+5V) | 28 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 22 A |
| Power protection features | Over voltage, Overload, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 1 |
| CPU P4 connector (4-pin) | 1 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Fan diameter | 14 cm |
| Number of fans | 1 fan(s) |
