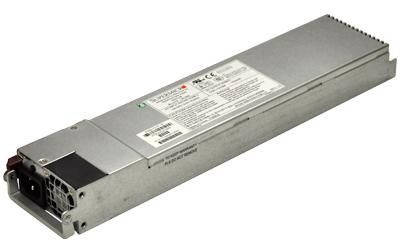

CORE-PWS-1K23A-1R power supply unit
1000 W 1U Grey
Model CORE-PWS-1K23A-1REAN 5715063031193
15 specifications
- Weight3 kg
- ColourGrey
- Total power1000 W
- PurposeServer
- Width76 mm
Overview
- Weight
- 3 kg
- Colour
- Grey
- Total power
- 1000 W
- Purpose
- Server
- Width
- 76 mm
- Brand
- Ernitec
- Category
- Power Supply Unit
- Model
- CORE-PWS-1K23A-1R
- Part number
- CORE-PWS-1K23A-1R
- EAN / UPC
- 5715063031193
- Also known as
- Ernitec CORE-PWS-1K23A-1R power supply unit 1000 W 1U Grey
Specifications
15 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 1000 W |
| Peak power | 1200 W |
| Power Factor Correction (PFC) type | Active |
| Max output current (+12V) | 100 A |
| Max output current (+5Vsb) | 4 A |
Performance
| Specification | Value |
|---|---|
| Purpose | Server |
| Power supply unit (PSU) form factor | 1U |
| 80 PLUS certification | 80 PLUS Silver |
Design
| Specification | Value |
|---|---|
| Product colour | Grey |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 76 mm |
| Depth | 360 mm |
| Height | 40 mm |
| Weight | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 3.1 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
