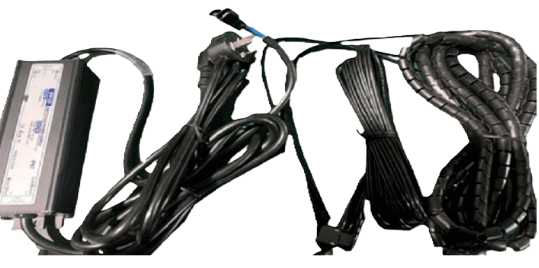

DHI-ESL-BLP02-80 power supply unit
80 W Black
Model DHI-ESL-BLP02-80
15 specifications
- Weight650 g
- ColourBlack
- Total power80 W
- PurposeVideo conferencing systems
- Operating temperature (T-T)-20 - 65 °C
- Width169 mm
Overview
- Weight
- 650 g
- Colour
- Black
- Total power
- 80 W
- Purpose
- Video conferencing systems
- Operating temperature (T-T)
- -20 - 65 °C
- Width
- 169 mm
- Brand
- Dahua Technology
- Category
- Power Supply Unit
- Model
- DHI-ESL-BLP02-80
- Part number
- DHI-ESL-BLP02-80
- Also known as
- Dahua Technology DHI-ESL-BLP02-80 power supply unit 80 W Black
Specifications
15 specifications in 7 groups
Power
| Specification | Value |
|---|---|
| Total power | 80 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
Performance
| Specification | Value |
|---|---|
| Purpose | Video conferencing systems |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, RoHS, FCC, IP67 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 169 mm |
| Depth | 49 mm |
| Height | 34 mm |
| Weight | 650 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 500 mm |
| Package depth | 350 mm |
| Package height | 250 mm |
