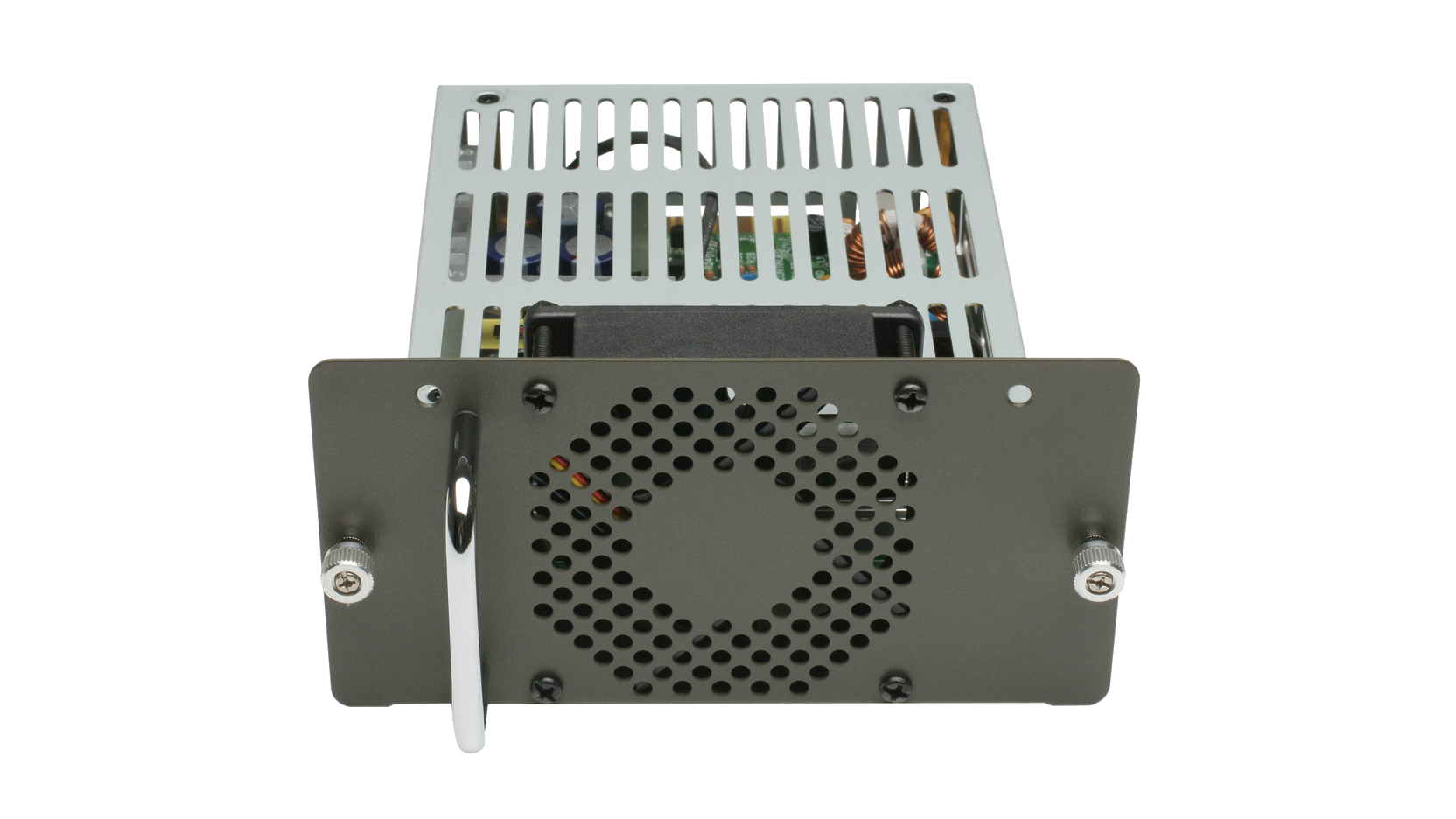

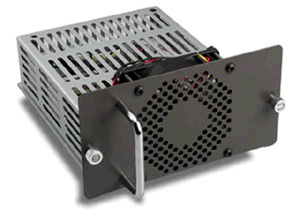

DMC-1001 power supply unit
150 W Black, Silver
Model DMC-1001EAN 3609740049279
39 specifications
- Weight1.07 kg
- ColourBlack, Silver
- Total power150 W
- Peripheral (Molex) power connectors (4-pin)0
- Compatible productsDMC-1000
- Operating temperature (T-T)0 - 40 °C
Overview
- Weight
- 1.07 kg
- Colour
- Black, Silver
- Total power
- 150 W
- Peripheral (Molex) power connectors (4-pin)
- 0
- Compatible products
- DMC-1000
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- D-Link
- Category
- Power Supply Unit
- Model
- DMC-1001
- Part number
- DMC-1001
- EAN / UPC
- 3609740049279, 790069241741, 790069410260, 5051964075981 +1 more
- Also known as
- D-Link DMC-1001 power supply unit 150 W Black, Silver
Specifications
39 specifications in 9 groups
Power
| Specification | Value |
|---|---|
| Total power | 150 W |
| AC input voltage | 85 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Maximum input current (@110V) | +12V |
| Power protection features | Short circuit |
Ports & interfaces
| Specification | Value |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 0 |
Performance
| Specification | Value |
|---|---|
| Compatible products | DMC-1000 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, VCCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 160 mm |
| Height | 85 mm |
| Weight | 1.07 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Package width | 249.5 mm |
| Package depth | 350 mm |
| Package height | 94.5 mm |
| Package weight | 1.59 kg |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) cases per pallet (air) | 41 pc(s) |
| Master (outer) cases per pallet (sea) | 41 pc(s) |
| Pallet gross weight (air) | 381.4 kg |
| Pallet gross weight (sea) | 381.4 kg |
| Pallet height (air) | 2.05 m |
| Pallet height (sea) | 2.05 m |
| Products per pallet (air) | 205 pc(s) |
| Products per pallet (sea) | 205 pc(s) |
| Products per shipping (inner) case | 5 pc(s) |
| Shipping (inner) case gross weight | 8.77 kg |
| Shipping (inner) case height | 52 cm |
| Shipping (inner) case length | 37.6 cm |
| Shipping (inner) case net weight | 7.97 kg |
| Shipping (inner) case width | 27.6 cm |
| Pallet gross width | 120 cm |
| Pallet gross length | 110 cm |
| Harmonized System (HS) code | 84733020 |
