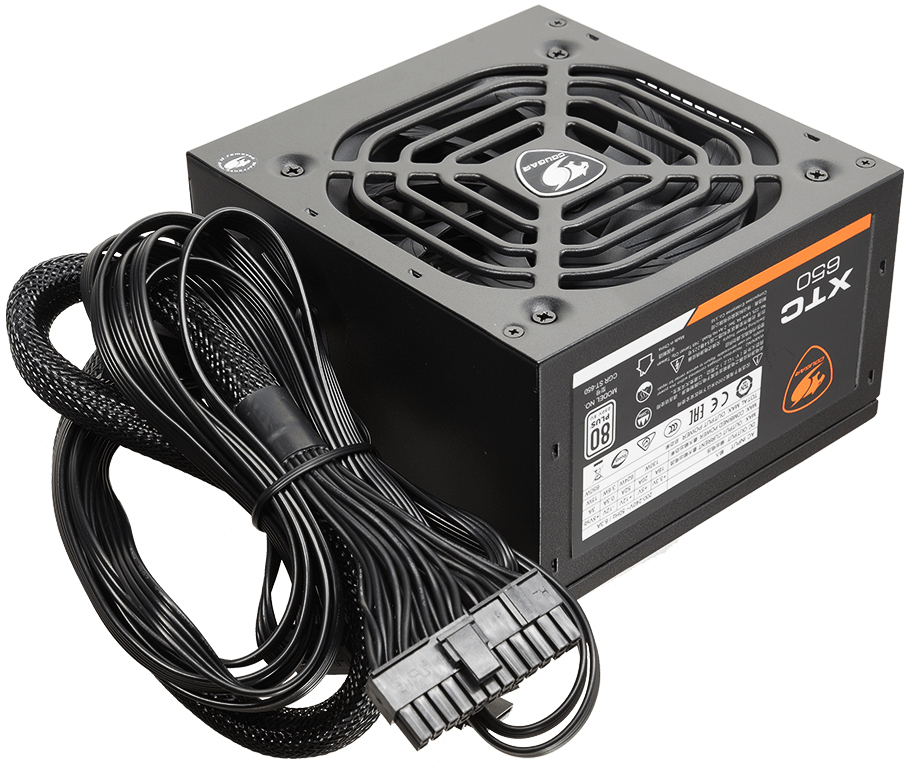

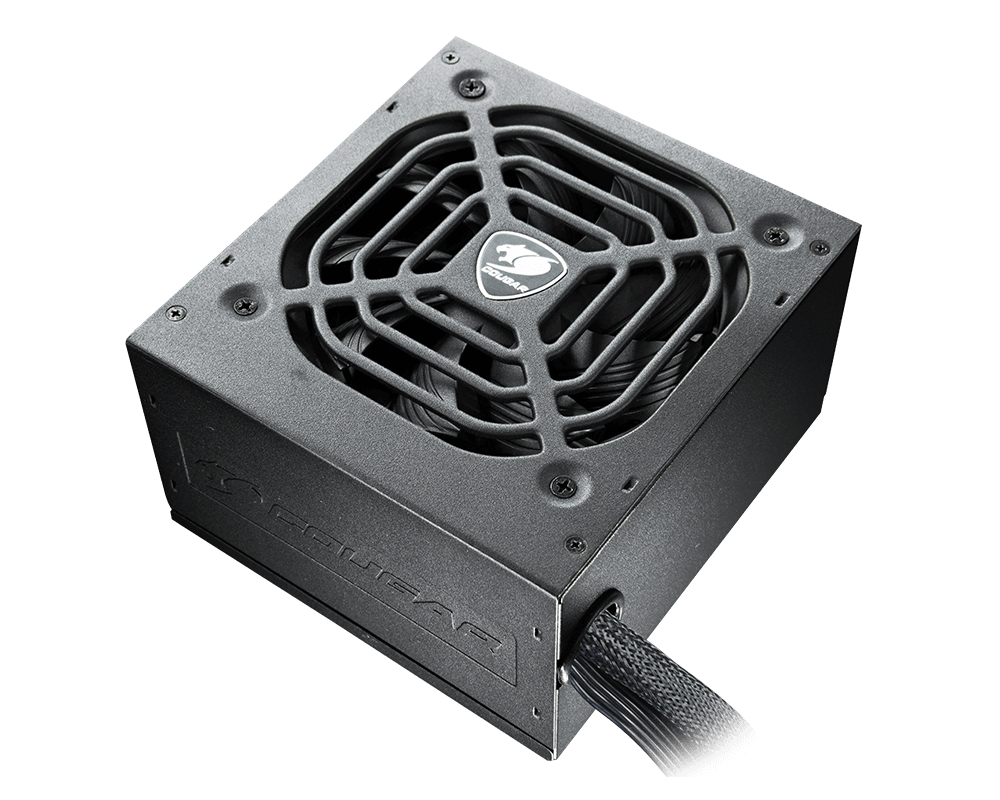

XTC650 power supply unit
650 W 20+4 pin ATX Black
Model XTC650Part no. 31XC650.0001PEAN 4710483770715
39 specifications
- Weight1.4 kg
- ColourBlack
- Total power650 W
- Motherboard power connector20+4 pin ATX
- PurposePC
- Width140 mm
Overview
- Weight
- 1.4 kg
- Colour
- Black
- Total power
- 650 W
- Motherboard power connector
- 20+4 pin ATX
- Purpose
- PC
- Width
- 140 mm
- Brand
- COUGAR
- Category
- Power Supply Unit
- Model
- XTC650
- Part number
- 31XC650.0001P
- EAN / UPC
- 4710483770715
- Also known as
- COUGAR XTC650 power supply unit 650 W 20+4 pin ATX Black
Specifications
39 specifications in 6 groups
Power
| Specification | Value |
|---|---|
| Total power | 650 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 6.3 A |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 624 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 52 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 86% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Ports & interfaces
| Specification | Value |
|---|---|
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of PATA power connectors | 2 |
| Number of SATA power connectors | 6 |
| SATA power cable length | 450,570,690 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Non-Modular |
Performance
| Specification | Value |
|---|---|
| Purpose | PC |
| 80 PLUS certification | 80 PLUS White |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 1.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 187 mm |
| Package depth | 158 mm |
| Package height | 165 mm |
| Package weight | 1.7 kg |
